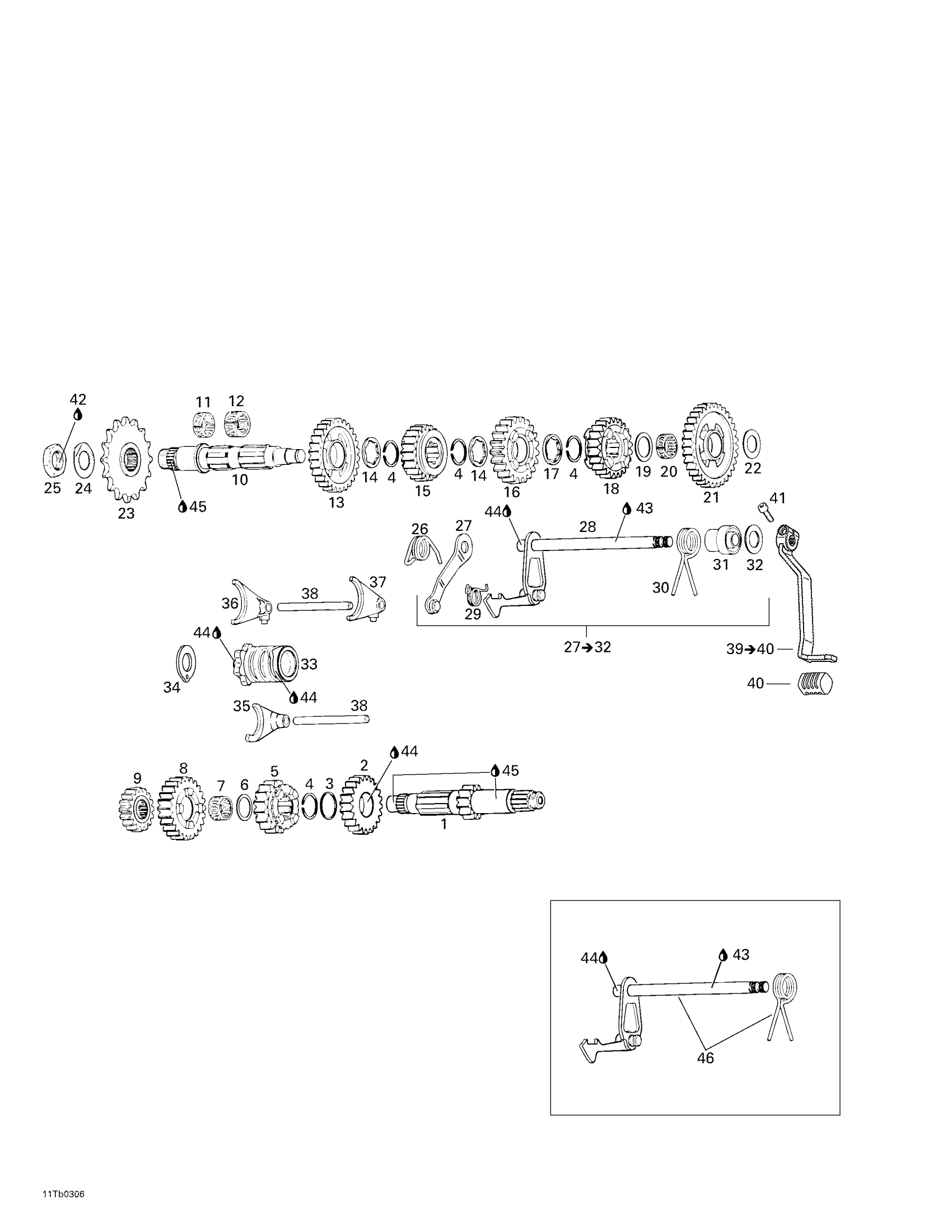

Can-Am DS 650, 2003 Transmission Diagram

#

Description
Price

1

Clutch Shaft, 12 Teeth

420220236

Unavailable

2

Intermediate Gear, 21 Teeth

420234715

Unavailable

3

THRUST WASHER - Call your local BRP dealership

420227825

$7.66

4

Circlip

420445302

$4.03

5

Pinion Gear, 18 Teeth

420634333

$280.74

6

THRUST WASHER - Call your local BRP dealership

420227445

Unavailable

7

NEEDLE BEARING - Call your local BRP dealership

420232805

$15.35

8

Intermediate Gear, 23 Teeth

420234725

Unavailable

9

Pinion Gear, 15 Teeth

420234675

Unavailable

10

MAIN SHAFT - Call your local BRP dealership

420220730

$317.99

11

NEEDLE BEARING - Call your local BRP dealership

420232520

$18.43

12

Needle Bearing

420232530

$26.89

13

INTERMEDIATE GEAR, 29 TEETH - Call your local BRP dealership

420634305

$151.51

14

THRUST RING - Call your local BRP dealership

420627051

Unavailable

15

Pinion Gear, 22 Teeth

420634345

Unavailable

16

Intermediate Gear, 26 Teeth

420234705

Unavailable

17

ANGULAR RING - Call your local BRP dealership

420627061

$14.58

18

Pinion Gear, 24 Teeth

420634355

Unavailable

19

Thrust Washer

420244100

Unavailable

20

Needle Bearing

420232742

$17.66

21

Gear, 33 Teeth

420634290

Unavailable

22

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

23

CHAIN WHEEL - Call your local BRP dealership

420236470

$93.05

24

Tab Washer

420245391

$18.43

25

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.66

26

INDEX SPRING - Call your local BRP dealership

420239095

$10.74

27

Shift-Shaft Ass'y | Includes 27 to 32

420620230

Unavailable

27

Index Lever

420248346

Unavailable

28

Shift-Shaft

420237929

Unavailable

29

Spring

420239075

Unavailable

30

SPRING - Call your local BRP dealership

420239084

$12.28

31

SPACER - Call your local BRP dealership

420247900

$11.85

32

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

33

DRUM-SHIFT - Call your local BRP dealership | Includes 34 to 35

420258275

$119.99

34

ISOLATING WASHER - Call your local BRP dealership

420227562

$4.58

35

FORK-SHIFT - Call your local BRP dealership

420258038

$73.05

36

FORK-SHIFT - Call your local BRP dealership

420258028

$73.82

37

FORK-SHIFT - Call your local BRP dealership

420258018

$75.35

38

FORK SPINDLE - Call your local BRP dealership

420258782

$14.58

39

Gearshift Lever

420248317

Unavailable

40

Rubber Sleeve

420260205

$6.31

41

Socket Head Screw M6 X 20

205062044

$1.07

42

Loctite 243, 10 ml

293800060

$20.77

43

Grease, Super Lube

293550030

$24.67

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Was 420297616 Klueber Grease, 60g

219704464

$23.82

46

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 2 to 10

420220537

Unavailable
