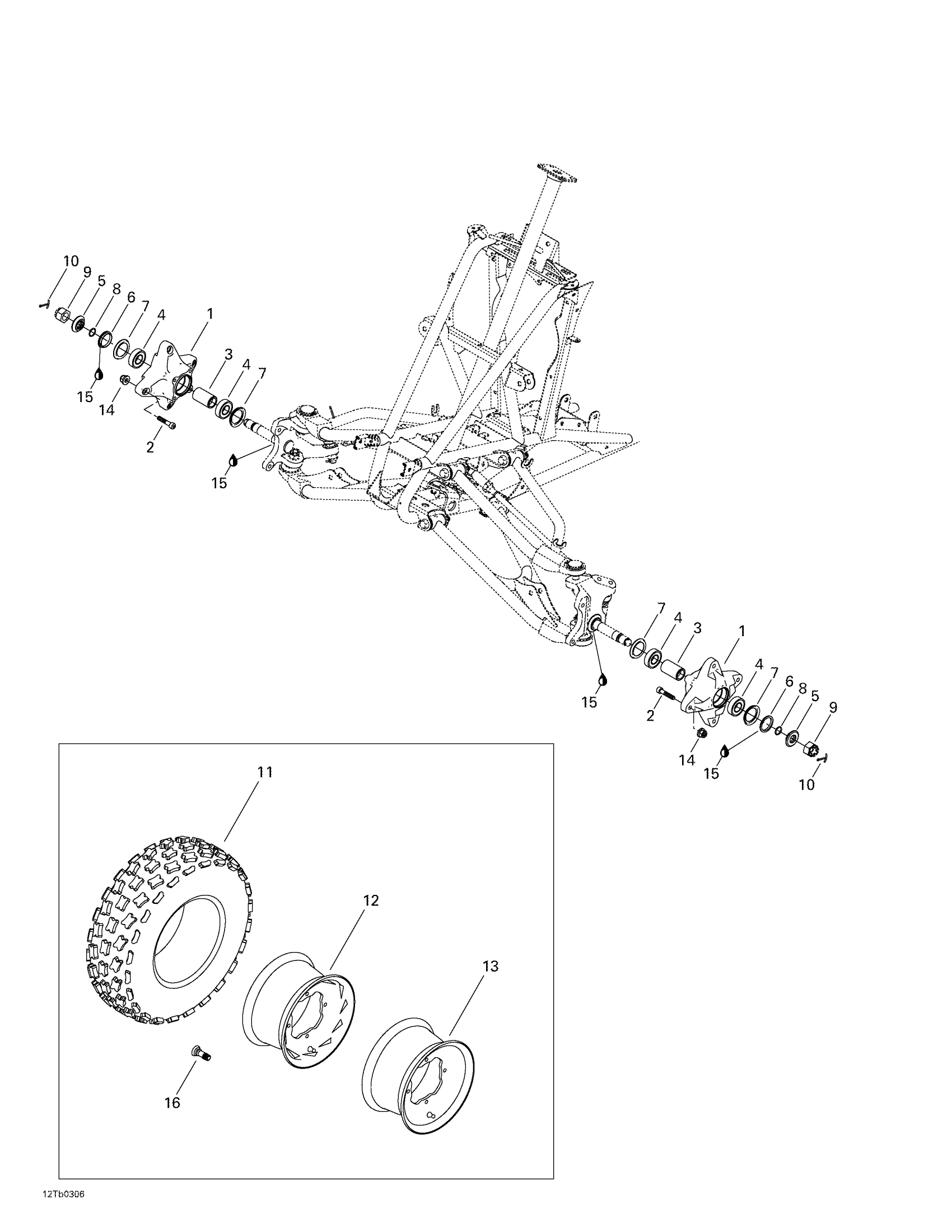

Can-Am DS 650, 2003 Drive System, Front Diagram

#

Description
Price

1

Wheel Hub

705400045

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

INSIDE BUSHING - Call your local BRP dealership

293900032

$16.89

4

BALL BEARING - Call your local BRP dealership

293350036

$14.58

5

OUTSIDE BUSHING - Call your local BRP dealership

293900033

Unavailable

6

WEAR RING - Call your local BRP dealership

705400056

$13.82

7

SEAL - Call your local BRP dealership

293250094

$25.35

8

O-RING - Call your local BRP dealership

293300058

$5.35

9

Hex. Flange Castellated Nut M18

232291413

$2.82

10

Cotter Pin

371003400

$0.69

11

FRONT TIRE - Call your local BRP dealership | DS 650 X

705400136

Unavailable

12

RH FRONT RIM - Call your local BRP dealership | DS 650 X

705400137

$129.20

LH Front Rim | DS 650 X

705400140

Unavailable

13

Front Rim | DS 650

705400121

Unavailable

14

Flange Nut M10

732610084

$5.49

15

Synthetic Grease, 400 G

293550010

Unavailable

16

Rim Valve With Cap

705400193

$6.69
