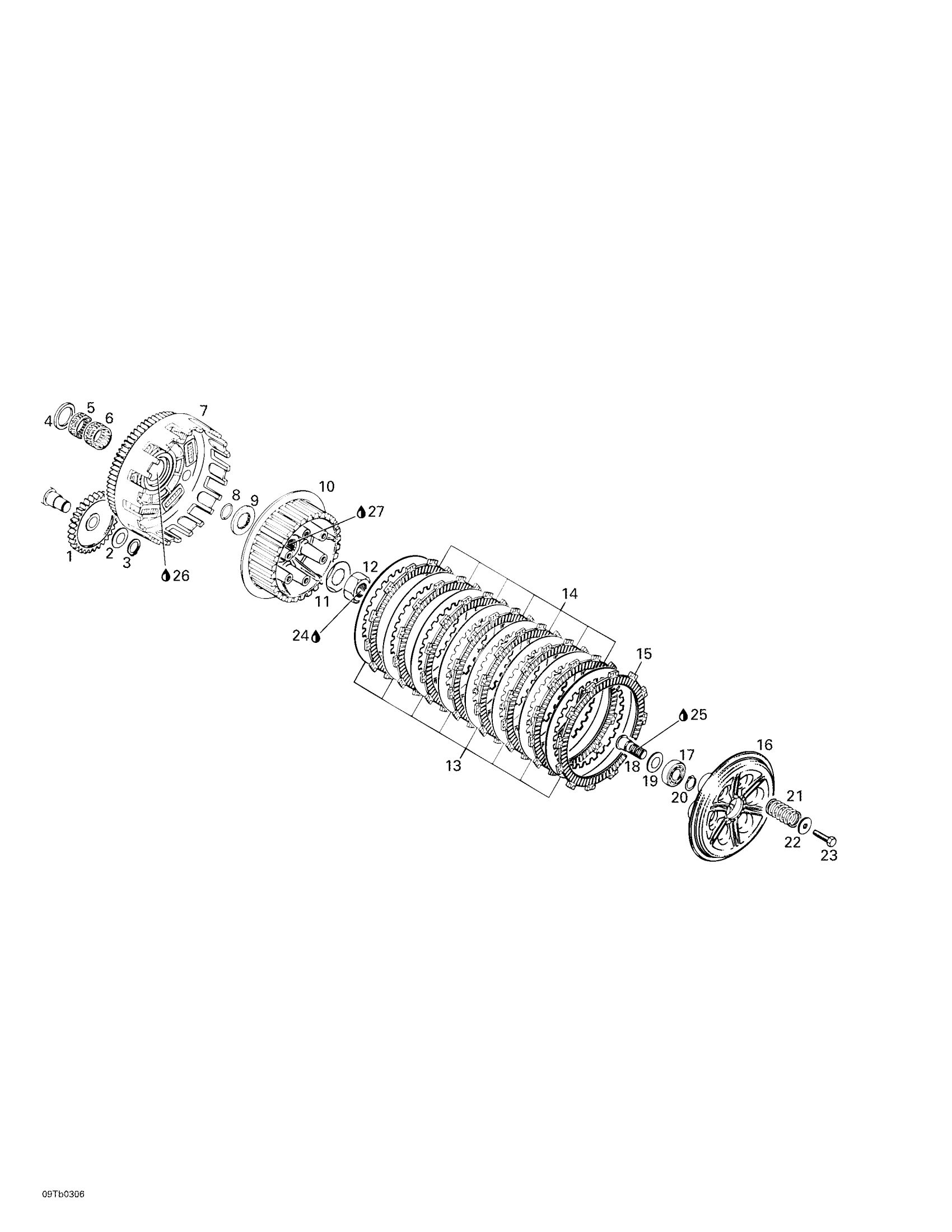

Can-Am DS 650, 2003 Clutch Diagram

#

Description
Price

1

OIL PUMP GEAR - Call your local BRP dealership

420235272

$39.20

2

THRUST WASHER - Call your local BRP dealership

420227401

Unavailable

3

RETAINING RING - Call your local BRP dealership

420945650

Unavailable

4

Thrust Washer

420427460

Unavailable

5

Needle Bearing

420932930

$26.12

6

Needle Bearing

420232890

Unavailable

7

PRIMARY DRIVE ASS'Y - Call your local BRP dealership

420296365

Unavailable

8

O-Ring

420250890

$2.50

9

THRUST WASHER - Call your local BRP dealership

420244950

$12.28

10

Clutch Hub

420259117

Unavailable

11

TAB WASHER - Call your local BRP dealership

420245325

$7.66

12

NUT M18 - Call your local BRP dealership

420242607

$9.97

13

Plate 1,5 mm

420259262

$17.66

14

Friction Plate 3,5 mm

420259210

$15.08

15

FRICTION PLATE 3,5 MM - Call your local BRP dealership

420259215

Unavailable

16

PRESSURE PLATE - Call your local BRP dealership

420259122

$55.35

17

BALL BEARING 6002 - Call your local BRP dealership

420232262

$13.82

18

Rack-Actuation Clutch

420259202

Unavailable

19

THRUST WASHER - Call your local BRP dealership

420227401

Unavailable

20

RETAINING RING - Call your local BRP dealership

420945650

Unavailable

21

CLUTCH SPRING - Call your local BRP dealership

420239162

$11.52

22

WASHER - Call your local BRP dealership

420244020

$4.72

23

Hex. Screw M6 X 25

207162544

$1.05

24

Loctite 243, 10 ml

293800060

$20.77

25

Grease, Super Lube

293550030

$24.67

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Was 420297616 Klueber Grease, 60g

219704464

$23.82
