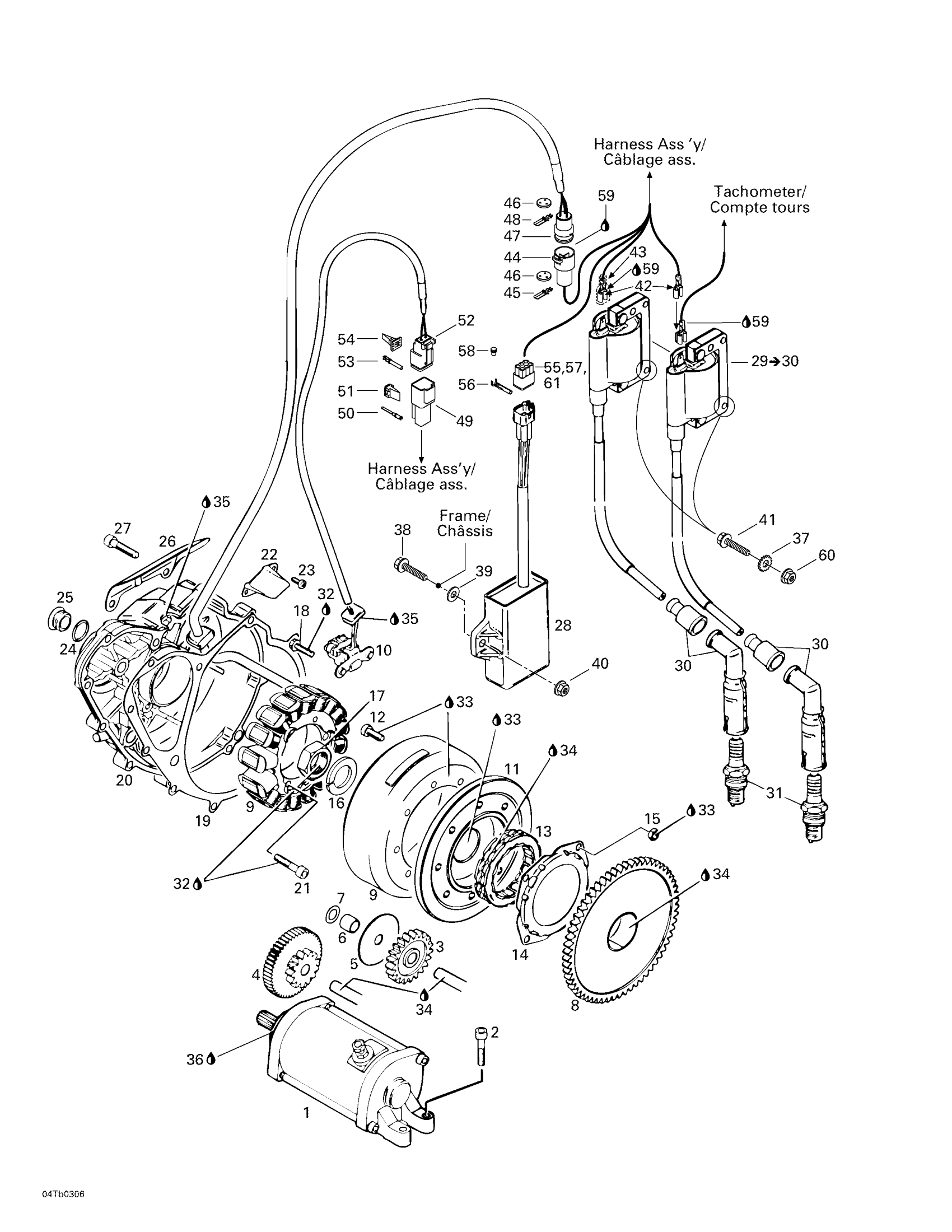

Can-Am DS 650, 2003 Ignition Diagram

#

Description
Price

1

ELECTRIC STARTER - Call your local BRP dealership

420294351

$439.99

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

$137.66

1

O-Ring For Starter (Not Illustrated)

293300103

Unavailable

2

Socket Head Screw M6 X 30

205063044

$1.42

3

INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership

420234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

$166.12

5

Thrust Washer

420627080

Unavailable

6

SPACER - Call your local BRP dealership

420247785

$7.66

7

Thrust Washer

420827590

$3.86

8

Starting Gear, 61 Teeth

420634317

Unavailable

9

Magneto Ass'y 12V/280W

420295172

Unavailable

10

Pickup Ass'y

420265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

$254.99

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

$5.52

13

Sprag Clutch

420958857

$323.05

14

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259192

$25.99

15

NUT BM6 - Call your local BRP dealership

420242031

$3.82

16

Lock Washer, 22 mm

420945759

$1.55

17

Hex. Nut, M22 X 1.5

420842239

$14.27

18

Taptite Screw M5 X 16

420941928

$0.39

19

GASKET - Call your local BRP dealership

420250920

$15.35

20

IGNITION COVER - Call your local BRP dealership

420211291

$278.43

21

Socket Head Screw M6 X 35

420241810

Unavailable

22

Interior Cable Support Ass'y

420251889

$13.83

23

Phillips Screw M4 X 8

420240196

Unavailable

24

O-Ring

420250890

$2.50

25

Drain Plug

420241801

$6.11

26

CABLE EXTERNAL COVER - Call your local BRP dealership

420251990

$12.28

27

Socket Head Screw M6 X 30

205063044

$1.42

28

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

29

Ignition Coil

420265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

$23.05

31

Spark Plug, NGK/DR8EA

707000008

$4.03

32

Loctite 243, 10 ml

293800060

$20.77

33

Sealant Loctite 648

219703000

$35.72

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

36

Was 420297616 Klueber Grease, 60g

219704464

$23.82

37

External Serrated Lock Washer 6 mm

234461608

$0.92

38

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

39

Flat Washer

224061201

$1.11

40

Hex. Flange Elastic Nut M5

233251414

$1.66

41

Hex. Flange Screw M6 X 25

207662544

$0.53

42

FEMALE TERMINAL - Call your local BRP dealership

710000114

$6.12

43

Rubber Envelope Terminal

710000115

Unavailable

44

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

45

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

46

SEAL - Call your local BRP dealership

409208500

Unavailable

47

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

48

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

49

Male Housing, 2 Circuits

409206900

$8.98

50

Male Terminal

278000631

$4.12

51

Male Lock, 2 Circuits

409207500

$3.02

52

Female Connector, 2 Circuits

409207300

$9.60

53

Female Terminal

278000632

$1.69

54

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

55

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

56

FEMALE TERMINAL - Call your local BRP dealership

278001638

$2.99

57

WIRE SEAL - Call your local BRP dealership

710000189

$2.28

58

Cap

710000080

$6.48

59

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

61

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

$7.66
