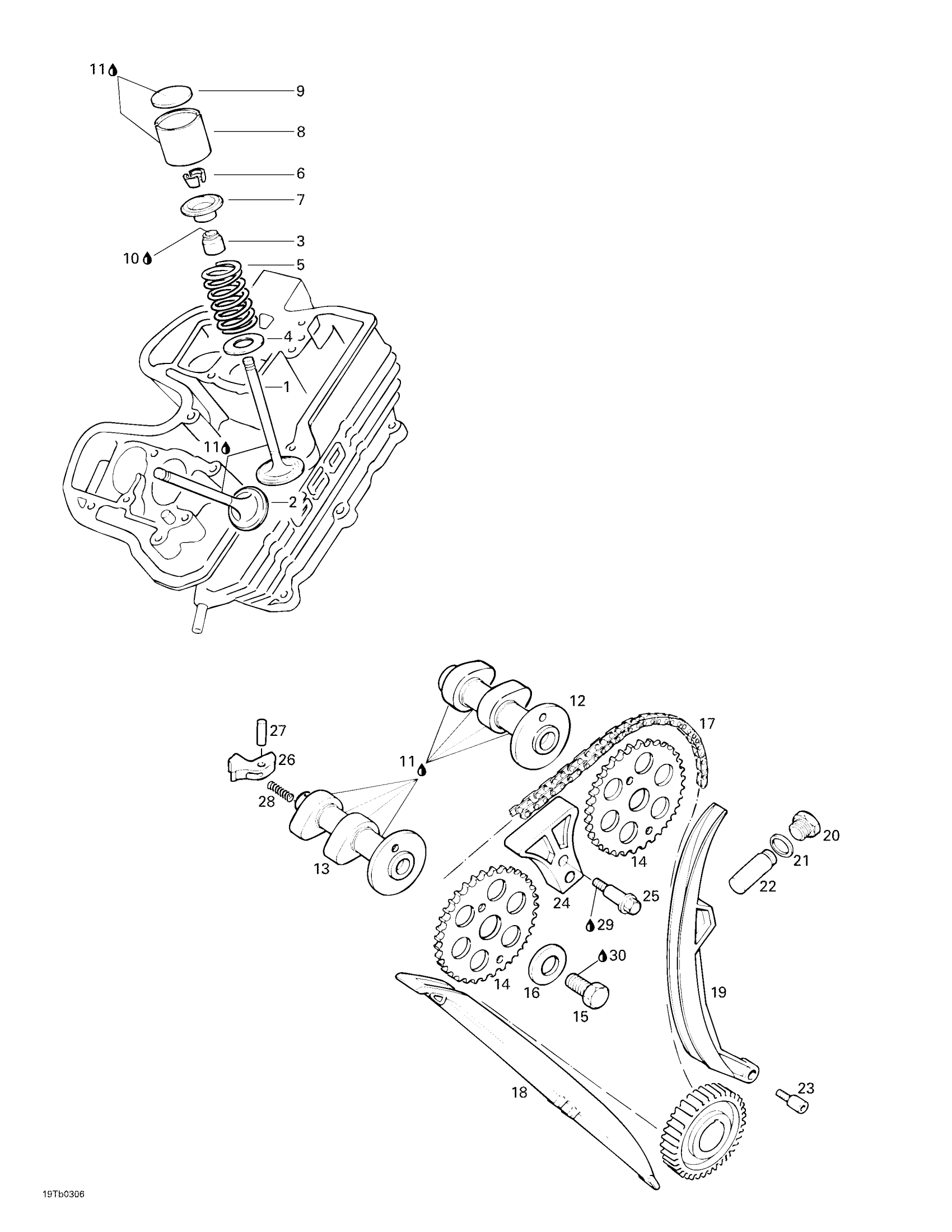

Can-Am DS 650, 2003 Valve Diagram

#

Description
Price

1

Inlet Valve

420253770

$59.97

2

EXHAUST VALVE - Call your local BRP dealership

420253780

$69.20

3

Seal

420230510

$11.77

4

THRUST WASHER - Call your local BRP dealership

420227982

$7.89

5

VALVE SPRING - Call your local BRP dealership

420239290

$14.23

6

Valve Cotter

420253645

$6.11

7

VALVE SPRING RETAINER - Call your local BRP dealership

420253760

$15.35

8

VALVE TAPPET - Call your local BRP dealership

420253545

$39.97

9

SHIM 2,1 - Call your local BRP dealership

420253741

$13.43

SHIM 2,15 - Call your local BRP dealership

420253752

$13.43

SHIM 2,2 - Call your local BRP dealership

420253742

$13.43

SHIM 2,25 - Call your local BRP dealership

420253753

$13.43

SHIM 2,3 - Call your local BRP dealership

420253743

Unavailable

Shim 2,35"

420253754

Unavailable

SHIM 2,4 - Call your local BRP dealership

420253744

$13.05

SHIM 2,45 - Call your local BRP dealership

420253755

$13.43

SHIM 2,5 - Call your local BRP dealership

420253745

$14.23

Shim 2,55"

420253756

Unavailable

SHIM 2,6 - Call your local BRP dealership

420253746

$13.05

Shim 2,7"

420253747

Unavailable

SHIM 2,8 - Call your local BRP dealership

420253748

$13.05

SHIM 2,9 - Call your local BRP dealership

420253749

Unavailable

10

Grease, Super Lube

293550030

$24.67

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Camshaft, Inlet

420220190

Unavailable

13

CAMSHAFT, EXHAUST - Call your local BRP dealership

420220200

$358.43

14

TIMING GEAR, 34 TEETH - Call your local BRP dealership

420634280

Unavailable

15

HEX. SCREW M10 X 20 - Call your local BRP dealership

207102044

$0.98

16

WASHER - Call your local BRP dealership

420627040

Unavailable

17

CHAIN-TIMING - Call your local BRP dealership

420297891

$176.12

18

Chain Guide

420236230

Unavailable

19

CHAIN TENSION GUIDE - Call your local BRP dealership

420236221

Unavailable

20

HEX. SCREW M18 X 10 - Call your local BRP dealership

420552277

$12.28

21

Crush Washer

420552280

$2.99

22

Chain Tensioner

415129408

$52.62

23

SCREW M6 - Call your local BRP dealership

420240940

$10.74

24

Chain Guide Bow

420236240

Unavailable

25

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

$10.52

26

CENTRIFUGAL WEIGHT - Call your local BRP dealership

420231045

$89.20

27

PEG - Call your local BRP dealership

420232910

$8.29

28

SPRING - Call your local BRP dealership

420239920

$3.82

29

Loctite 243, 10 ml

293800060

$20.77

30

Sealant Loctite 648

219703000

$35.72
