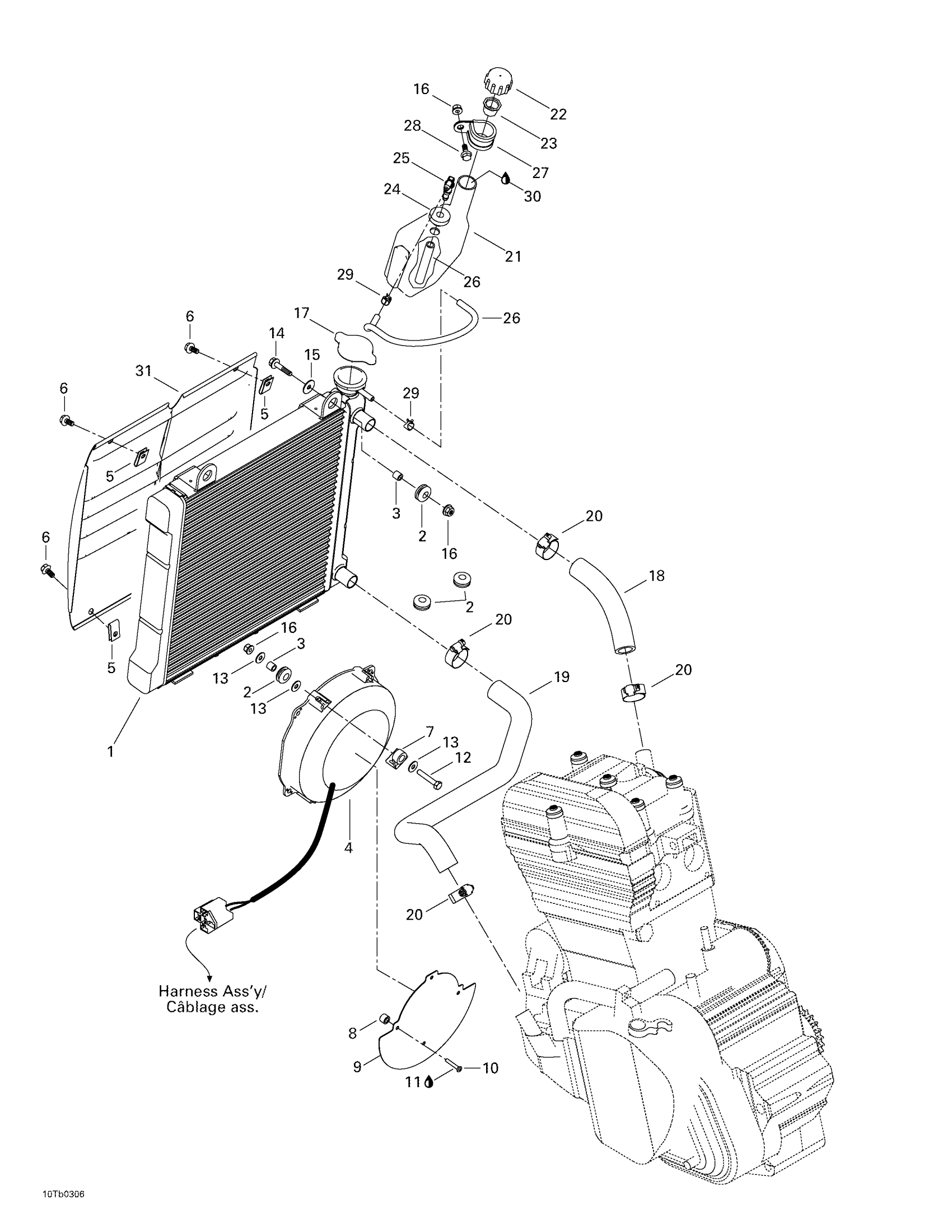

Can-Am DS 650, 2003 Cooling System Diagram
#
Description
Price
1
Radiator
709200070
Unavailable
3
Bushing
293900105
Unavailable
4
FAN ASSY - Call your local BRP dealership
709200092
Unavailable
5
Panel Nut M6 X 1.0
250100198
Unavailable
6
Hex. Flange Screw M6 X 12
207661244
Unavailable
7
Fan Support
709200017
Unavailable
8
Spacer
707000058
Unavailable
9
Heat Shield
709200041
Unavailable
10
Tapping Screw M4.2 X 25
209642590
Unavailable
11
Loctite 271, 10 ml
293800005
Unavailable
13
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
14
Hex. Flange Screw M6 X 25
207662544
Unavailable
15
Flat Washer
224060201
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Radiator Pressure Cap
709200207
Unavailable
18
Radiator Inlet Hose
709200021
Unavailable
19
Radiator Outlet Hose
709200022
Unavailable
20
Tridon Gear Clamp
293650051
Unavailable
21
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
22
TANK CAP - Call your local BRP dealership
709200009
Unavailable
23
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
26
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
27
Hose Anchor
709200036
Unavailable
28
Hex. Flange Screw M6 X 16
207661644
Unavailable
30
ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership
219700362
Unavailable
31
Radiator Protector
709200037
Unavailable
