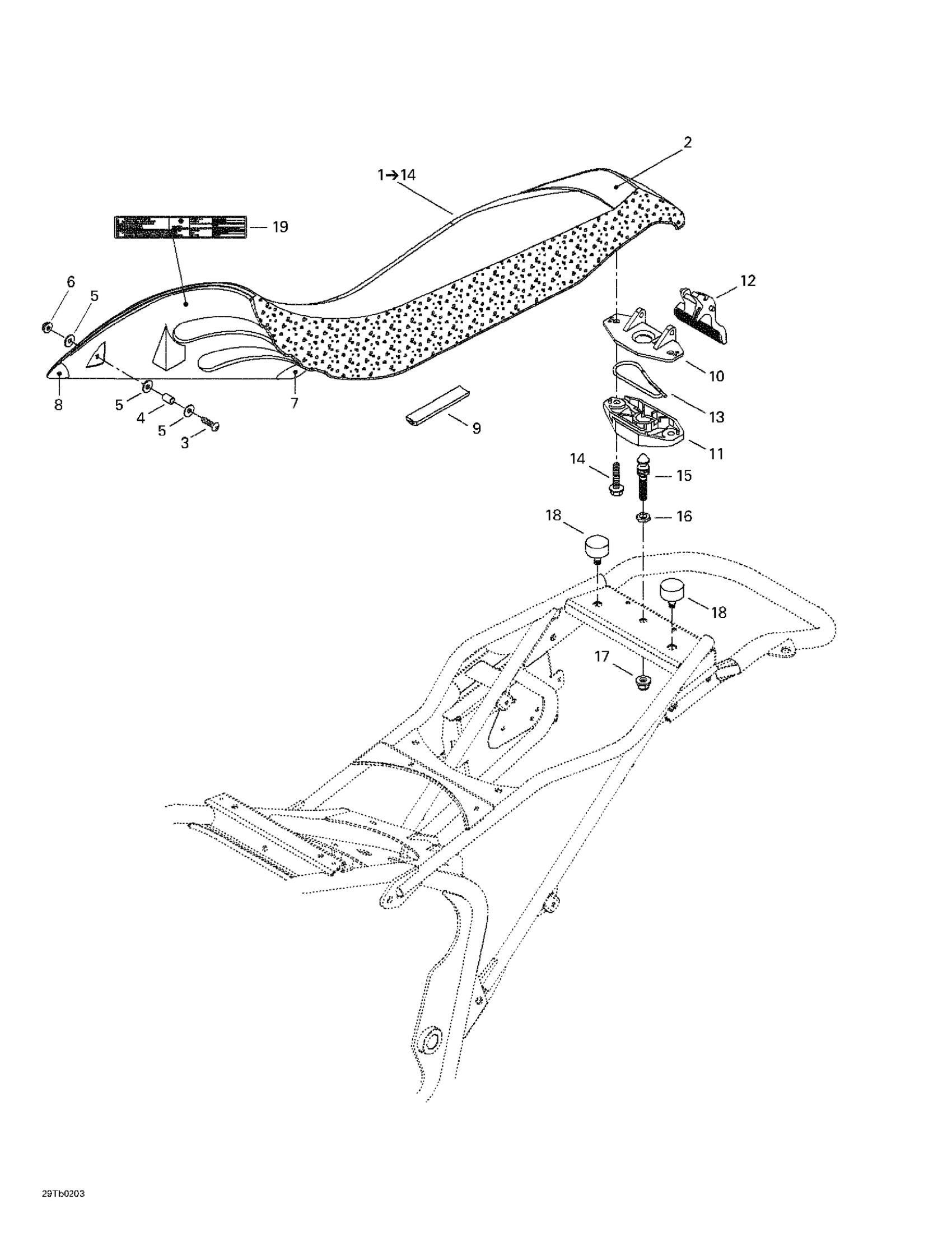

Can-Am DS 650, 2002 Seat Diagram

#

Description
Price

1

Seat Ass'y (Yellow) | Includes 1 - 14.

708000096

Unavailable

Seat Ass'y (Black)

708000126

Unavailable

2

Seat Cover (Yellow)

708000098

Unavailable

Seat Cover (Black)

708000109

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

$2.89

4

SPACER - Call your local BRP dealership

708000049

$7.66

5

Flat Washer

224061201

$1.11

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Seat Corner

708000035

Unavailable

8

LH Seat Corner

708000036

Unavailable

RH Seat Corner

708000037

Unavailable

9

Seal Tray 1000Mm Long

219704368

$12.91

10

Latch Ass'y

269700109

$20.12

11

Latch Ass'y

269700109

$20.12

12

Latch Ass'y

269700109

$20.12

13

Latch Spring

269700017

$7.27

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

15

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

16

Hex. Jam Nut M10

232100600

$1.85

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Rubber Stopper

708000758

$9.37

19

Emission Label

704900253

Unavailable
