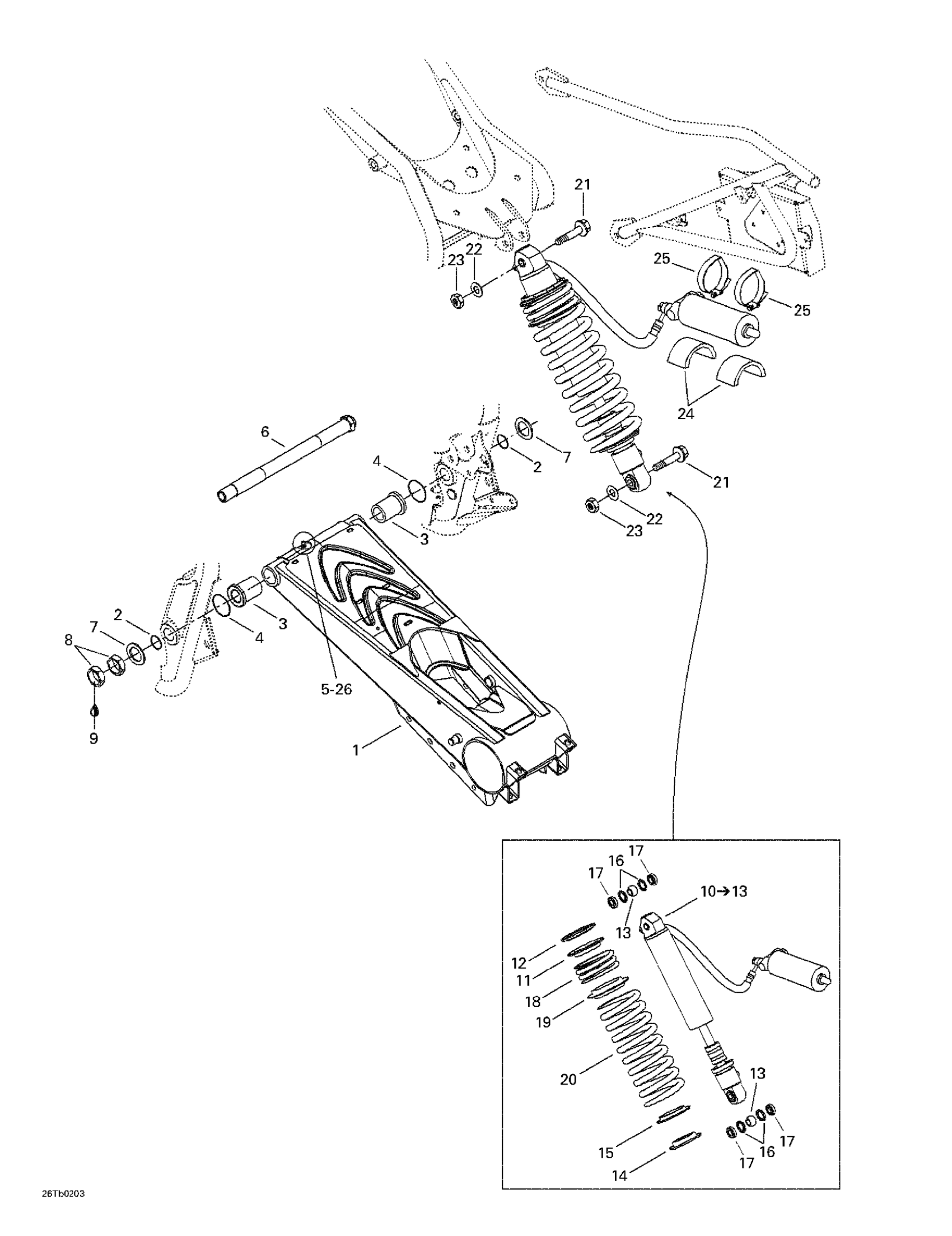

Can-Am DS 650, 2002 Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000134

Unavailable

2

O-RING - Call your local BRP dealership

293300074

$5.35

3

Cushion

706000089

Unavailable

4

O-Ring

293300068

$5.29

5

Grease Fitting

408200700

$2.80

6

PIVOT BOLT - Call your local BRP dealership

706000102

$134.58

7

WASHER - Call your local BRP dealership

293050003

$2.74

8

JAM NUT M20 - Call your local BRP dealership

250100009

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

Rear Shock | Includes 10 - 13.

706000148

Unavailable

11

SHOCK SPRING STOPPER - Call your local BRP dealership

706000062

$12.28

12

STOPPER RING - Call your local BRP dealership

706000082

$30.74

13

Ball Joint

706000105

Unavailable

14

SPRING STOPPER - Call your local BRP dealership

706000061

$15.35

15

SPRING GUIDE - Call your local BRP dealership

706000060

$9.97

16

SEAL - Call your local BRP dealership

293250111

$4.58

17

CUSHION - Call your local BRP dealership

706000103

$5.35

18

Rear Spring (Short)

706000059

Unavailable

19

Spring Spacer

706000079

Unavailable

20

Rear Spring (Long)

706000077

Unavailable

21

Hex. Flange Screw M12 X 60

207626046

$6.08

22

Washer

732900048

Unavailable

23

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

24

PROTECTOR - Call your local BRP dealership

293830083

$6.49

25

Norma Gear Clamp

293650118

$9.74

26

Synthetic Grease, 400 G

293550010

Unavailable
