Description

Price

1

Wheel Hub

705400045

Unavailable

2

SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership

205504044

Unavailable

3

INSIDE BUSHING - Call your local BRP dealership

293900032

$16.89

4

Ball Bearing

293350024

Unavailable

5

OUTSIDE BUSHING - Call your local BRP dealership

293900033

Unavailable

6

WEAR RING - Call your local BRP dealership

705400056

$13.82

7

SEAL - Call your local BRP dealership

293250094

$25.35

8

O-RING - Call your local BRP dealership

293300058

$5.35

9

Hex. Flange Castellated Nut M18

232291413

$2.82

10

Cotter Pin

371003400

$0.69

11

Front Tire

705400049

Unavailable

12

Front Rim | DS 650

705400121

Unavailable

13

Rim Valve With Cap

705400193

$6.69

14

Flange Nut M10

732610084

$5.49

15

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

779162

Unavailable

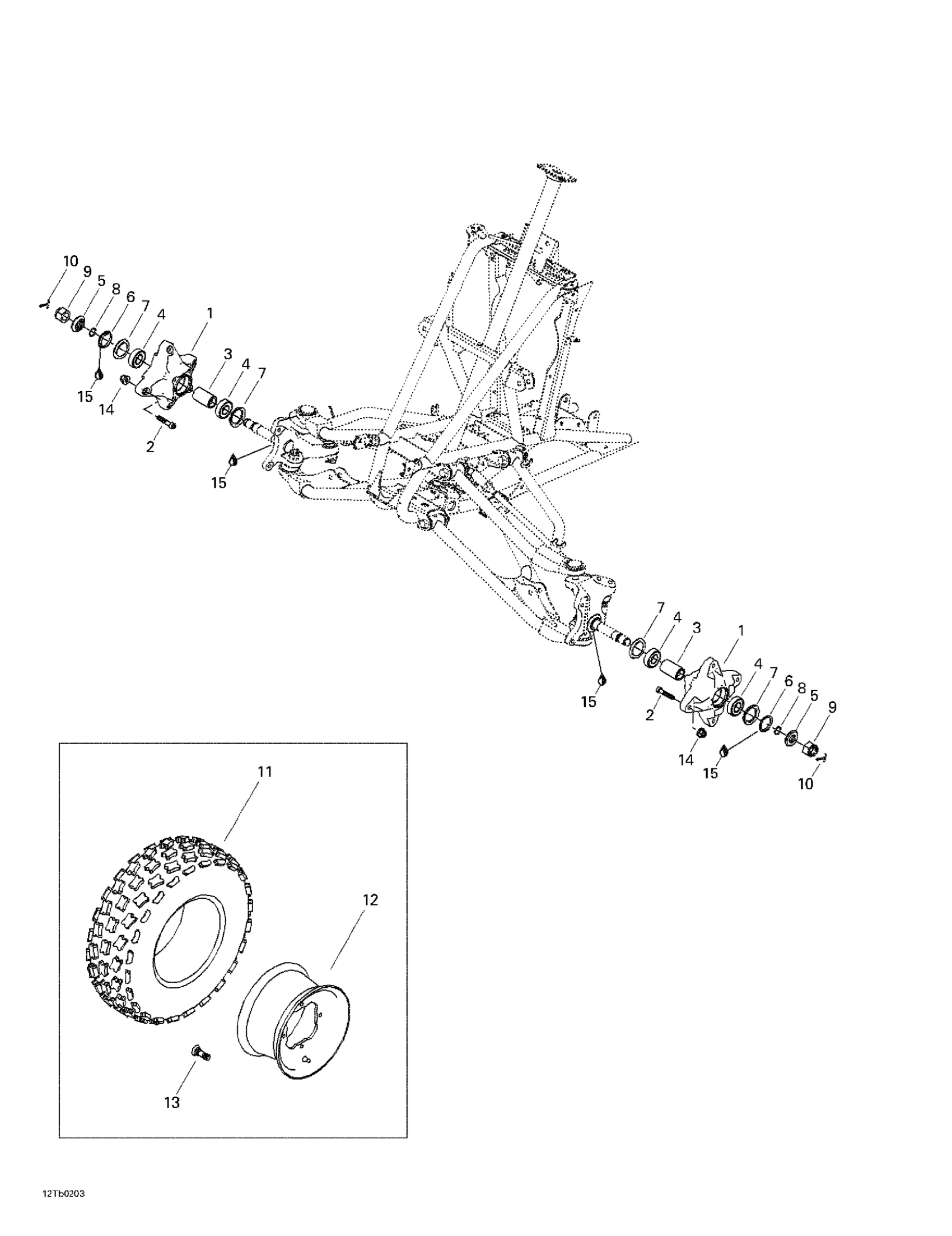

Can-Am DS 650, 2002 Drive System, Front Diagram
