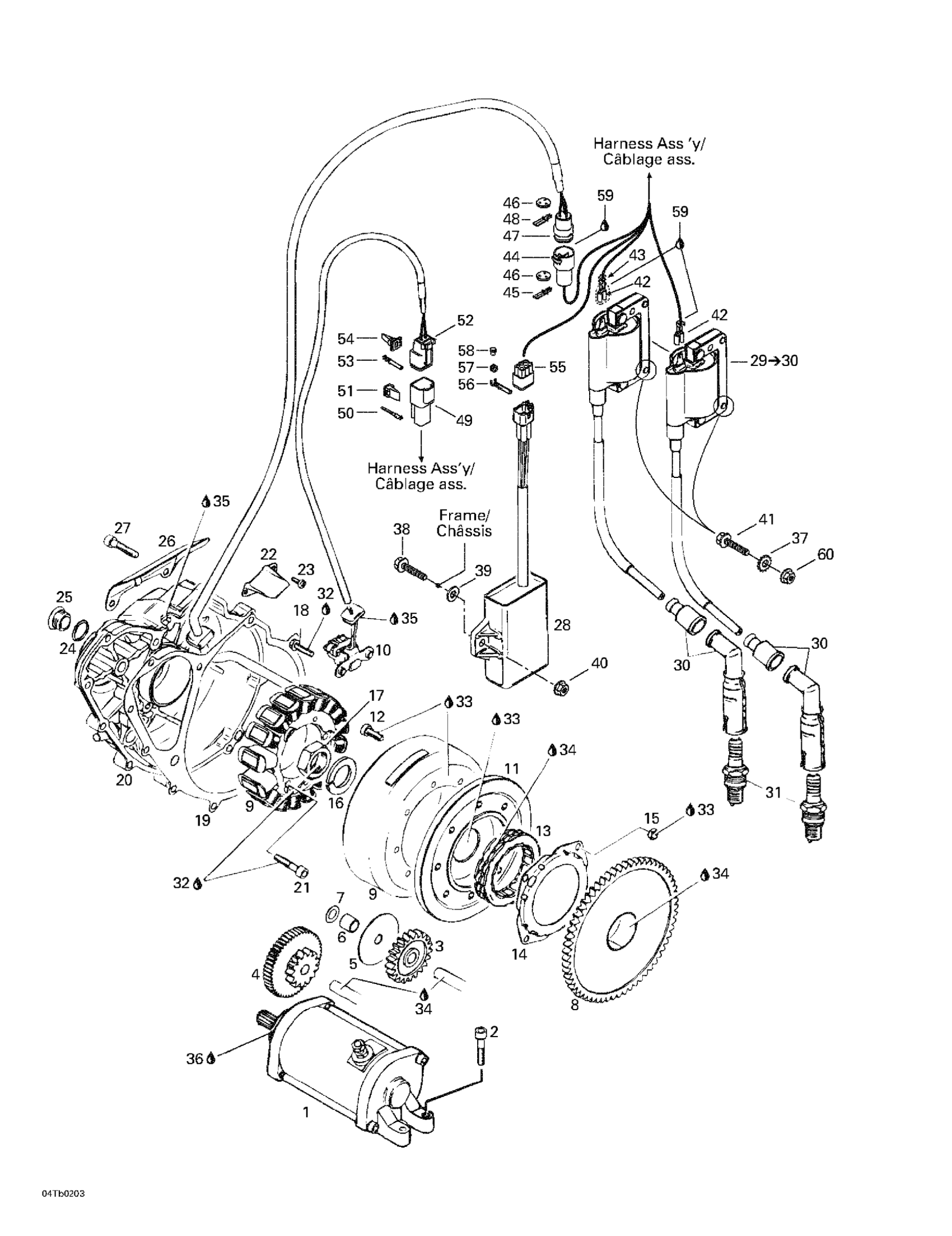

Can-Am DS 650, 2002 Ignition Diagram

#

Description
Price

1

Electric Starter

711294351

Unavailable

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

1

O-Ring For Starter (Not Illustrated)

293300103

Unavailable

2

Socket Head Screw M6 X 30

205063044

$1.63

3

Intermediate Gear (24 Teeth)

711234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

$161.16

5

Thrust Washer

711627080

Unavailable

6

Spacer

711247785

Unavailable

7

Thrust Washer

420827590

$3.75

8

Starting Gear (61 Teeth)

711634317

Unavailable

9

Magneto Ass'y 12V/280W

711295172

Unavailable

10

PICKUP ASS'Y - Call your local BRP dealership

711265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

$5.36

13

Sprag Clutch

420958857

$305.19

14

Housing-Clutch Sprag

711259192

Unavailable

15

Nut BM6

711242031

Unavailable

16

Lock Washer, 22 mm

420945759

$1.78

17

Hex. Nut, M22 X 1.5

420842239

$16.39

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Gasket

711250920

Unavailable

20

Ignition Cover

711211291

Unavailable

21

Socket Head Screw M6 x 35

711241810

Unavailable

22

Interior Cable Support Ass'y

420251889

$13.28

23

Phillips Screw M4 X 8

420240196

Unavailable

24

O-Ring

420250890

$2.87

25

Drain Plug

420241801

$7.01

26

Cable External Cover

711251990

Unavailable

27

Socket Head Screw M6 X 30

205063044

$1.63

28

Amplifier Box

711265368

Unavailable

29

Ignition Coil

711265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

$22.36

31

Spark Plug, NGK/DR8EA

707000008

$4.63

32

Loctite 243, 10 ml

293800060

$21.49

33

Sealant Loctite 648

219703000

$41.01

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

36

Was 420297616 Klueber Grease, 60g

219704464

$23.10

37

External Serrated Lock Washer 6 mm

234461608

$1.06

38

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

39

Flat Washer

224061201

$1.27

40

Hex. Flange Elastic Nut M5

233251414

$1.91

41

Hex. Flange Screw M6 X 25

207662544

$0.61

42

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

43

Rubber Envelope Terminal

710000115

Unavailable

44

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

46

SEAL - Call your local BRP dealership

409208500

Unavailable

47

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

49

Male Housing, 2 Circuits

409206900

$8.72

50

Male Terminal

278000631

$4.00

51

Male Lock, 2 Circuits

409207500

$2.93

52

Female Connector, 2 Circuits

409207300

$9.31

53

Female Terminal

27s8000632

Unavailable

54

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

55

Female Housing, 6 Circuits

710000081

$7.88

56

Female Terminal

409012100

$4.28

57

Seal

409012300

$4.25

58

Cap

710000080

$6.28

59

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
