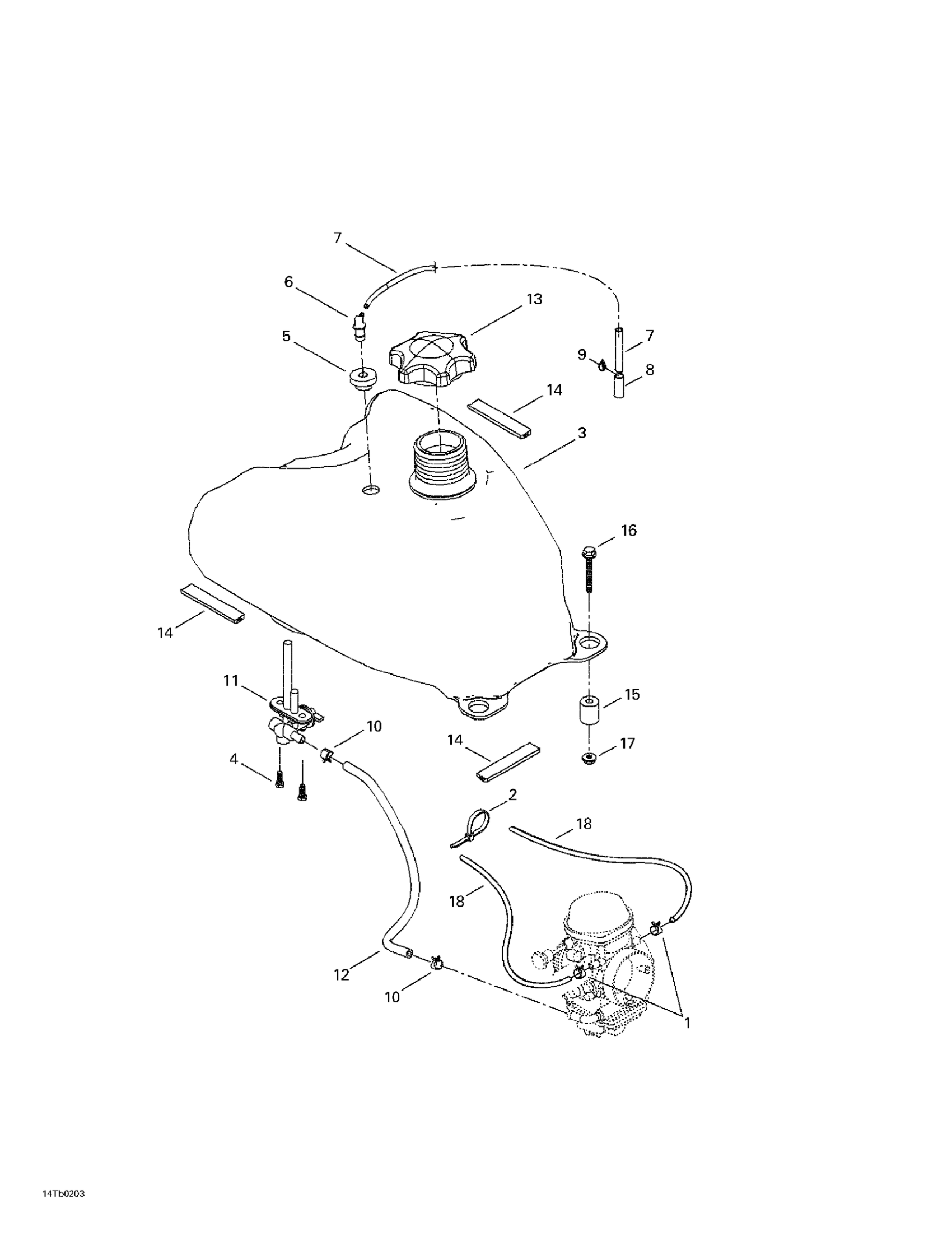

Can-Am DS 650, 2002 Fuel System Diagram

#

Description
Price

1

Spring Clamp

414420700

$0.66

2

Tie Wrap 142 mm

293750002

$1.01

3

FUEL TANK - Call your local BRP dealership

709000010

Unavailable

4

Hex. Screw M5 X 14

207151444

$0.82

5

Grommet

570045500

$6.13

6

Male Connector

414814100

$2.12

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

9

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

10

Spring Clamp

414655700

$0.66

11

FUEL VALVE - Call your local BRP dealership

709000011

Unavailable

12

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

13

Fuel Tank Cap 91 Octane

513033722

$22.36

14

Neoprene Seal (1PAC=3M)

219704364

$26.09

15

SPACER - Call your local BRP dealership

705000114

Unavailable

16

Hex. Flange Screw M8 x 60

207686044

$2.94

17

Hex. Flange Elastic Nut M8

233281414

$1.31

18

Hose

707200131

Unavailable
