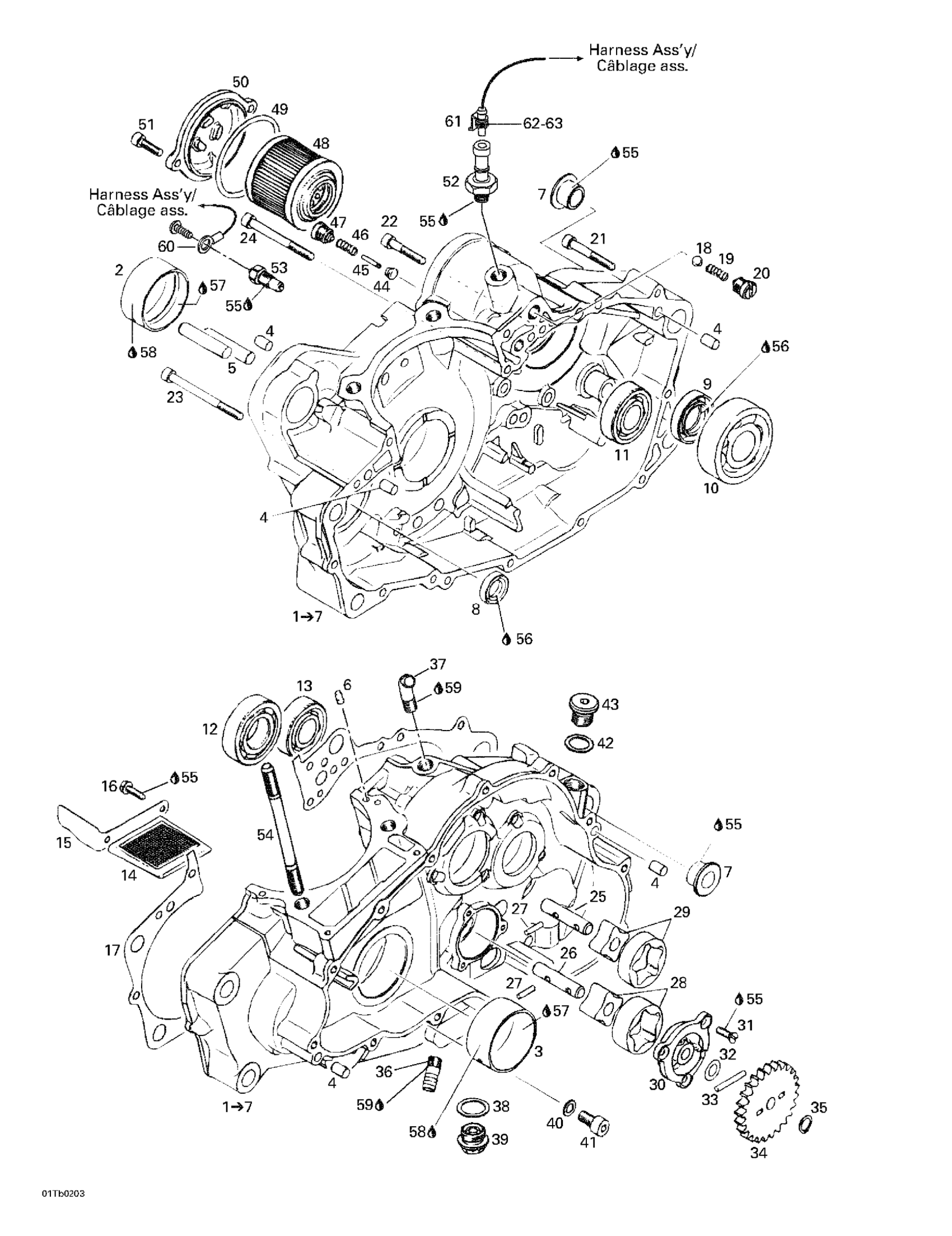

Can-Am DS 650, 2002 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711296346

$819.99

2

BUSHING - Call your local BRP dealership

420233677

$36.89

3

Bushing

711233680

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Location Pin 10 M6x50

420229302

$3.11

6

Drive Pin 5 X 10

420929650

$1.34

7

Sleeve

711247320

Unavailable

8

Oil Seal

711430550

$13.82

9

OIL SEAL - Call your local BRP dealership

420230395

$12.42

10

Ball Bearing

420932822

$29.20

11

Ball Bearing 6303

711232501

$27.66

12

Ball Bearing 6205

420232764

$24.58

13

Ball Bearing

420932816

$40.74

14

Oil Sieve

420256322

$27.66

15

Oil Sieve Guide

711256430

$15.35

16

Taptite Screw M5 X 16

420941928

$0.39

17

Gasket

711250910

$16.89

18

BALL 8 MM - Call your local BRP dealership

420932830

$1.51

19

Compression Spring

711239280

Unavailable

20

Valve Pin Screw

711256170

Unavailable

21

Socket Head Screw M6 x 45

711241822

$2.99

22

Socket Head Screw M6 x 35

711241810

Unavailable

23

Socket Head Screw M6 x 75

711240531

$4.58

24

Socket Head Screw M6 x 65

711241262

$4.72

25

Oil Pump Shaft

711220762

$22.94

26

Oil Pump Shaft

711220760

Unavailable

27

Needle Pin

420232731

$1.56

28

Oil Pump Rotor, Suction

420256681

$34.58

29

Oil Pump Rotor, Pressure

420256671

$32.28

30

Oil Pump Cover

711210642

Unavailable

31

Torx Head Screw M5 X 16

420640823

$1.85

32

Thrust Washer

420827590

$3.86

33

Needle Pin

420232431

$3.67

34

Oil Pump Gear (25 Teeth)

711234560

$31.51

35

Snap Ring

420245330

$1.43

36

Hose Nipple

711256330

$16.89

37

Angle Tube

711924245

$63.05

38

Crush Washer

420552280

$2.99

39

Drain Plug M18 X 1.5

420840278

$23.05

40

Sealing Ring

420950141

$1.64

41

Socket Head Screw M8 X 16

205081660

Unavailable

42

O-Ring

420430622

$3.61

43

Plug Screw M16 x 1,5

711240232

Unavailable

44

Retaining Valve

711260570

Unavailable

45

Valve Pin

711256150

Unavailable

46

Spring (Compression)

711239810

Unavailable

47

Valve Pin Screw

711256170

Unavailable

48

Oil Filter

420256188

$11.14

49

O-Ring

420230923

$2.59

50

Oil Filter Cover | 7449.

711610230

$46.89

51

Socket Head Screw M6 X 30

205063044

$1.42

52

Inter.Press.Hui*Switch-Oil Pressure

420856539

$33.77

53

Position Switch

420241856

$35.35

54

Stud M10 x 223

711640470

Unavailable

55

Loctite 243, 10 ml

293800060

$20.77

56

Grease, Super Lube

293550030

$24.67

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Was 420297616 Klueber Grease, 60g

219704464

$23.82

59

Loctite 277, 10 ml

293800073

Unavailable

60

OPEN BARREL - Call your local BRP dealership

710000112

$4.58

61

Male Housing, 1 Circuit

278001012

$12.65

62

Female Terminal

278001014

$2.72

63

Wire Seal

278001013

$2.72
