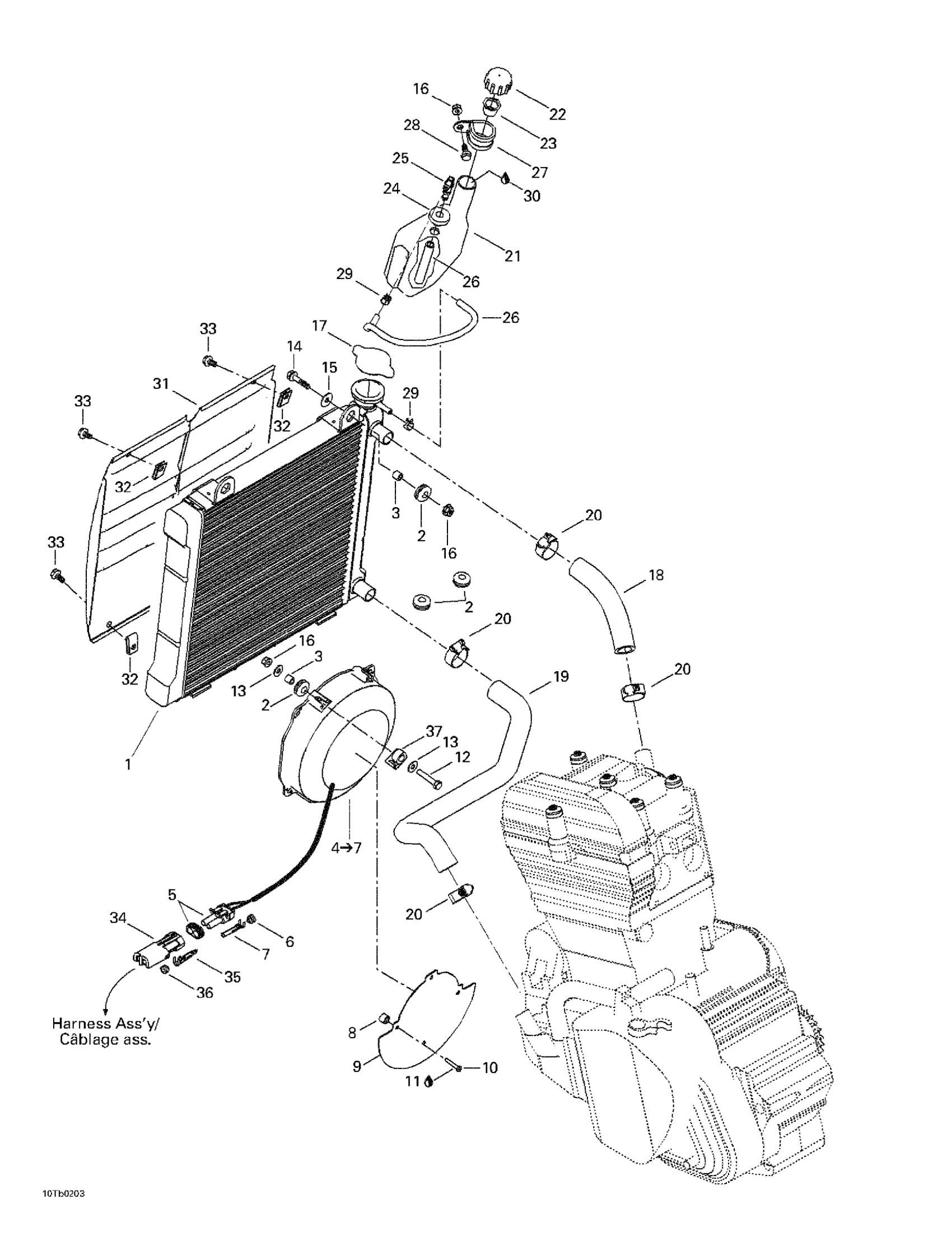

Can-Am DS 650, 2002 Cooling System Diagram

#

Description
Price

1

Radiator

709200070

Unavailable

2

Grommet

709000582

$4.25

3

Bushing

293900105

$6.07

4

FAN ASSY - Call your local BRP dealership

709200092

Unavailable

5

Male Connector, 2 Circuits

278000220

$12.66

6

Wire Seal

710000048

$5.85

7

Female Terminal

409007300

$0.42

8

Spacer

707000058

$11.81

9

Heat Shield

709200041

Unavailable

10

Tapping Screw M4.2 X 25

209642590

Unavailable

11

Loctite 271, 10 ml

293800005

$23.85

12

Hex. Flange Screw M6 X 35

207063544

$1.31

13

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

14

Hex. Flange Screw M6 X 25

207662544

$0.61

15

Flat Washer

224060201

$1.12

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Radiator Pressure Cap

709200207

$21.61

18

Radiator Inlet Hose

709200021

Unavailable

19

Radiator Outlet Hose

709200022

Unavailable

20

Tridon Gear Clamp

293650051

$4.15

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

TANK CAP - Call your local BRP dealership

709200009

Unavailable

23

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

24

Grommet

709200285

$8.13

25

Elbow Male Connector

414580600

$4.01

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

27

Hose Anchor

709200036

$10.51

28

Hex. Flange Screw M6 X 16

207661644

$0.70

29

Spring Clamp

414554800

$0.81

30

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

31

Radiator Protector

709200037

Unavailable

32

Panel Nut M6 X 1.0

250100198

$1.99

33

Hex. Flange Screw M6 X 12

207661244

$1.96

34

Female Housing, 2 Circuits

278000217

$8.72

35

Male Terminal

409004300

$5.30

36

Wire Seal

278000218

$4.00

37

Fan Support

709200017

Unavailable
