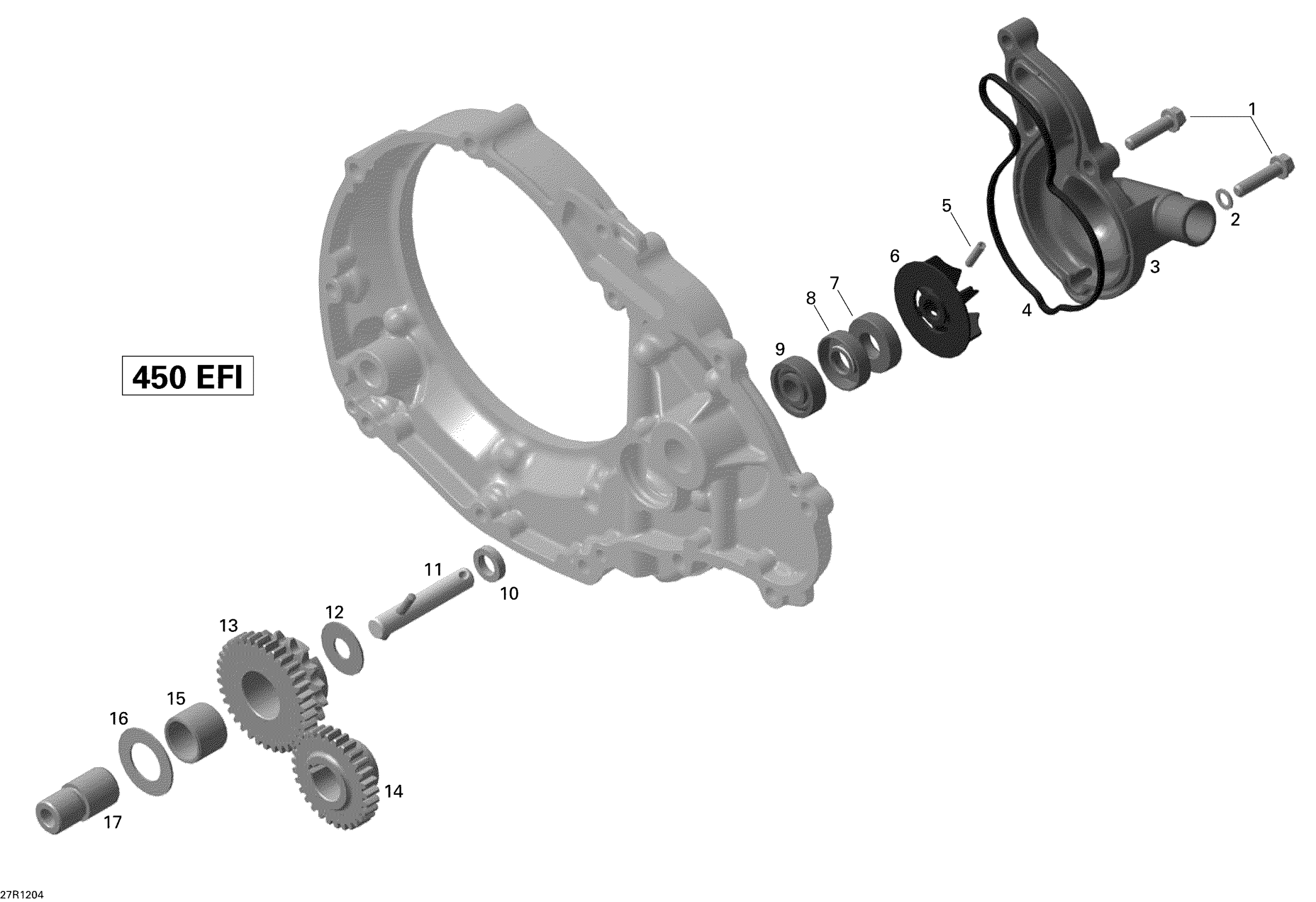

Can-Am DS 450EFI Xxc & Xmx, 2012 Engine Cooling Diagram

#

Description
Price

1

Torx Flange Screw M6 X 25

420641238

Unavailable

2

Seal Washer

420230415

$1.77

3

Water Pump Cover

420611670

$83.05

4

Gasket

420431030

$7.60

5

Spring Pin

420229280

Unavailable

6

Water Pump Impeller

420222272

Unavailable

7

Oil Seal

420230197

Unavailable

8

Oil Seal

420230195

$12.65

9

Ball Bearing

420232100

Unavailable

10

Distance Sleeve

420229880

Unavailable

11

Waterpump Shaft

420220171

Unavailable

12

Thrust Washer

420227680

Unavailable

13

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

$76.89

14

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

$79.20

15

NEEDLE BEARING - Call your local BRP dealership

420832990

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420627292

$7.72

17

BEARING PIN - Call your local BRP dealership

420229135

Unavailable

1

Torx Flange Screw M6 X 25

420641238

Unavailable

2

Seal Washer

420230415

$1.77

3

Water Pump Cover

420611670

$83.05

4

Gasket

420431030

$7.60

5

Spring Pin

420229280

Unavailable

6

Water Pump Impeller

420222272

Unavailable

7

Oil Seal

420230197

Unavailable

8

Oil Seal

420230195

$12.65

9

Ball Bearing

420232100

Unavailable

10

Distance Sleeve

420229880

Unavailable

11

Waterpump Shaft

420220171

Unavailable

12

Thrust Washer

420227680

Unavailable

13

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

$76.89

14

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

$79.20

15

NEEDLE BEARING - Call your local BRP dealership

420832990

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420627292

$7.72
