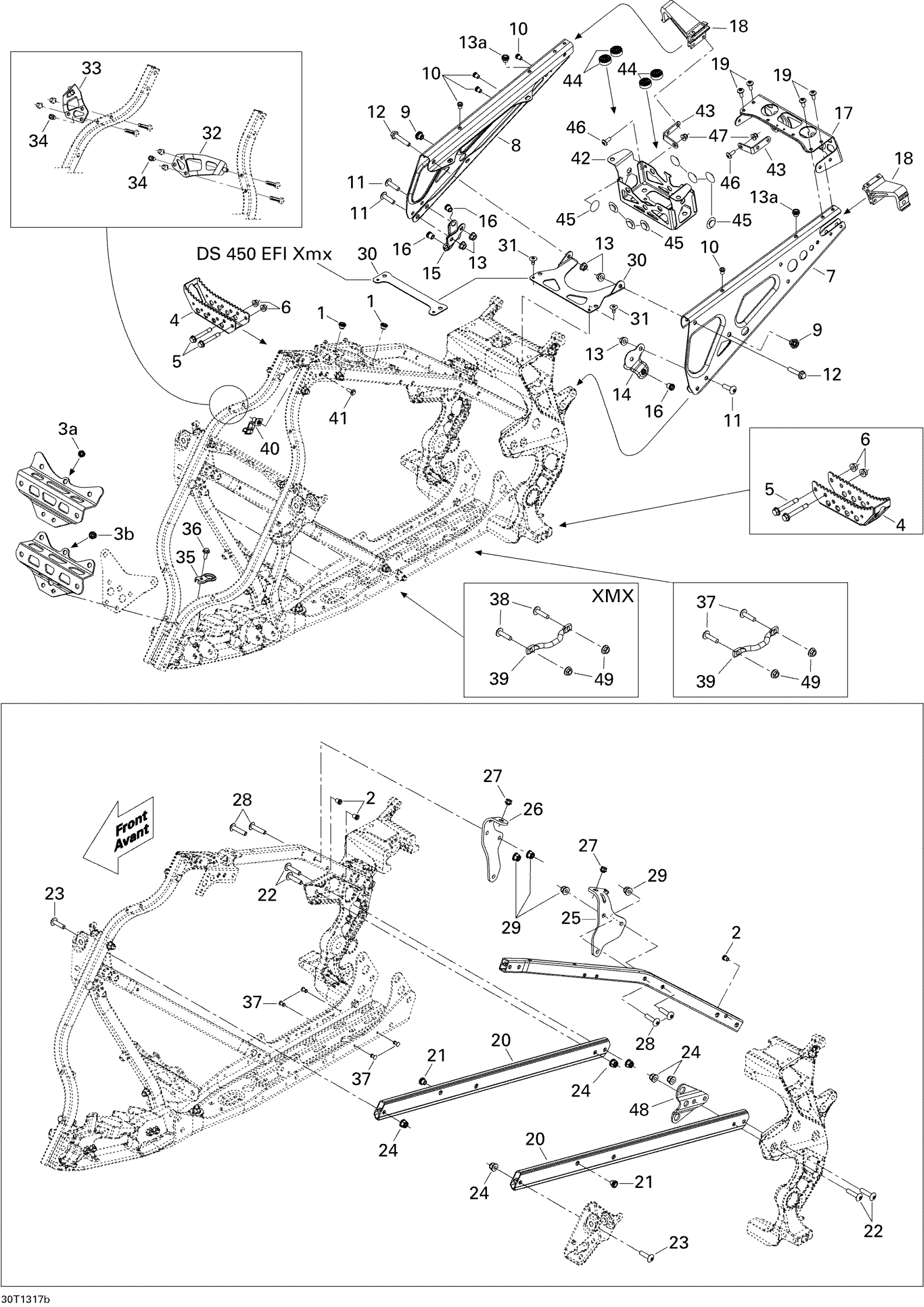

Can-Am DS 450EFI Xmx, 2013 Frame, System 2 Diagram

#

Description
Price

1

Threaded Insert M6 X 1.0

250100242

Unavailable

2

Insert M5 X 0.8

293450268

Unavailable

3a

Threaded Insert M6 X 1.0

250100242

Unavailable

3b

Not Available As Spare Parts

XXX

Unavailable

4

FOOTREST - Call your local BRP dealership

705201044

Unavailable

5

HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership

207586034

Unavailable

6

Hex. Flange Nut M8

233181434

Unavailable

7

EXTENTION - Call your local BRP dealership

705202547

Unavailable

8

EXTENTION - Call your local BRP dealership

705202548

Unavailable

9

Threaded Insert M6 X 1.0

250100242

Unavailable

10

Insert M5 X 0.8

293450268

Unavailable

11

Hex Torx Truss M8 X30

250000745

Unavailable

12

Hex. Flange Screw M8 X 40

207684034

Unavailable

13

Hex. Flange Nut M8

233181434

Unavailable

13a

Insert

293450275

Unavailable

14

LH Bracket

707600399

Unavailable

15

RH Bracket

705201485

Unavailable

16

Insert

293450275

Unavailable

17

PLATE SUPPORT - Call your local BRP dealership

705201898

Unavailable

18

REAR FENDER SUPPORT - Call your local BRP dealership

705002094

$15.35

19

Torx Screw M6 X 16

250000223

$1.74

20

Side Member

705201950

Unavailable

21

Insert

293450275

Unavailable

22

Torx Truss Screw M8 X 35

250000256

$0.91

23

Hex Torx Truss M8 X30

250000745

Unavailable

24

Hex. Flange Elastic Nut M8

233281434

Unavailable

25

LH ENGINE SUPPORT - Call your local BRP dealership

705201380

Unavailable

26

RH ENGINE SUPPORT - Call your local BRP dealership

705201381

Unavailable

27

Insert

293450278

Unavailable

28

Torx Truss Screw M8 X 35

250000256

$0.91

29

Hex. Flange Elastic Nut M8

233281434

Unavailable

30

REAR BRACE - Call your local BRP dealership

705201406

Unavailable

31

Pop Rivet 3/16"

293150008

Unavailable

32

LH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201461

Unavailable

33

RH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201462

Unavailable

34

Insert M5 X 0.8

293450268

Unavailable

35

RADIATOR GUIDE - Call your local BRP dealership

705201550

Unavailable

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

37

Torx Screw M5 X 20

250000792

Unavailable

38

Torx Screw M5 X 14

250000742

$1.20

39

NET ATTACHMENT - Call your local BRP dealership

705002639

$11.98

40

Cable Support

707000561

Unavailable

41

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

42

SUPPORT - Call your local BRP dealership

705202456

Unavailable

43

BRACKET - Call your local BRP dealership

707000864

$11.38

44

Rubber Stopper

708000506

Unavailable

45

Rubber Stopper

708000862

Unavailable

46

Torx Screw M6 X 16

250000223

$1.74

47

Flange Elastic Nut M6

233261434

Unavailable

48

Solenoide Support

705202636

Unavailable

49

Hex. Flange Nut M5

250100071

Unavailable
