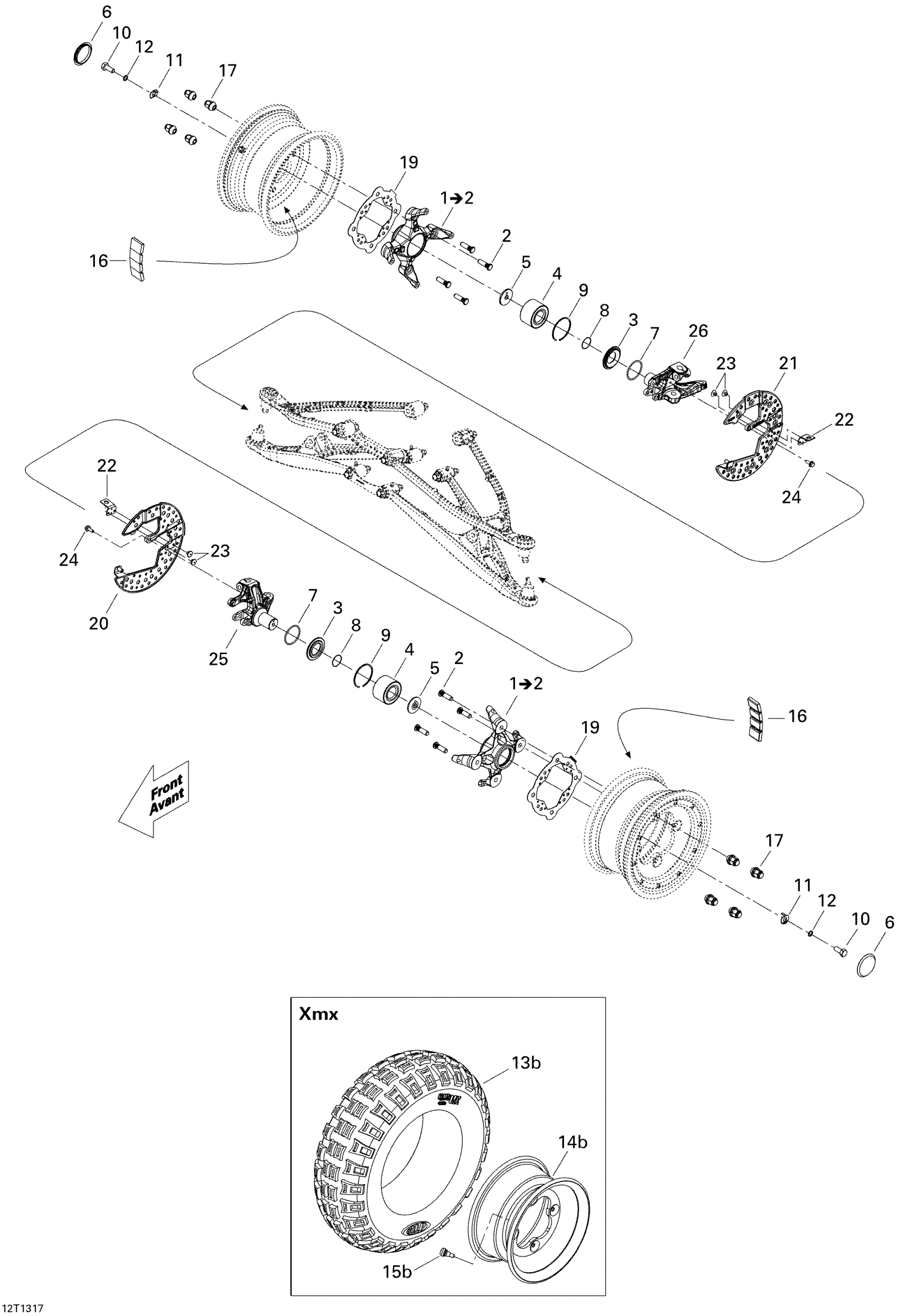

Can-Am DS 450EFI Xmx, 2013 Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 1 to 2

705400724

Unavailable

2

Wheel Stud

250300013

$3.98

3

SUPPORT RING - Call your local BRP dealership

705400371

Unavailable

4

Ball Bearing

293350150

Unavailable

5

WASHER - Call your local BRP dealership

705400722

Unavailable

6

CAP - Call your local BRP dealership

705400792

Unavailable

7

O-RING - Call your local BRP dealership

293300113

Unavailable

8

O-Ring

293300114

Unavailable

9

Circlip

293370019

Unavailable

10

HEX. SCREW M10 X 25 - Call your local BRP dealership

207102534

Unavailable

11

LOCK WASHER - Call your local BRP dealership

705400767

Unavailable

12

FLAT WASHER - Call your local BRP dealership

250200103

$1.62

13b

TIRE_20X6R10 F - Call your local BRP dealership

705400765

Unavailable

14b

RIM_10 INCH X 5 - Call your local BRP dealership | Xmx except Europe

705400656

Unavailable

15b

Rim Valve With Cap

705400193

Unavailable

16

Self Adhesive Weight, 5G 20mm

705502106

$4.35

17

Black, Wheel Nut M10 X 1.25

250100184

Unavailable

19

EXTERIOR DISK - Call your local BRP dealership

705400572

Unavailable

20

LH INTERIOR DISK - Call your local BRP dealership

705400573

Unavailable

21

RH INTERIOR DISK - Call your local BRP dealership

705400576

Unavailable

22

DISK SUPPORT - Call your local BRP dealership

705400603

Unavailable

23

Pop Rivet 3/16"

293150103

Unavailable

24

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

25

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

26

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable
