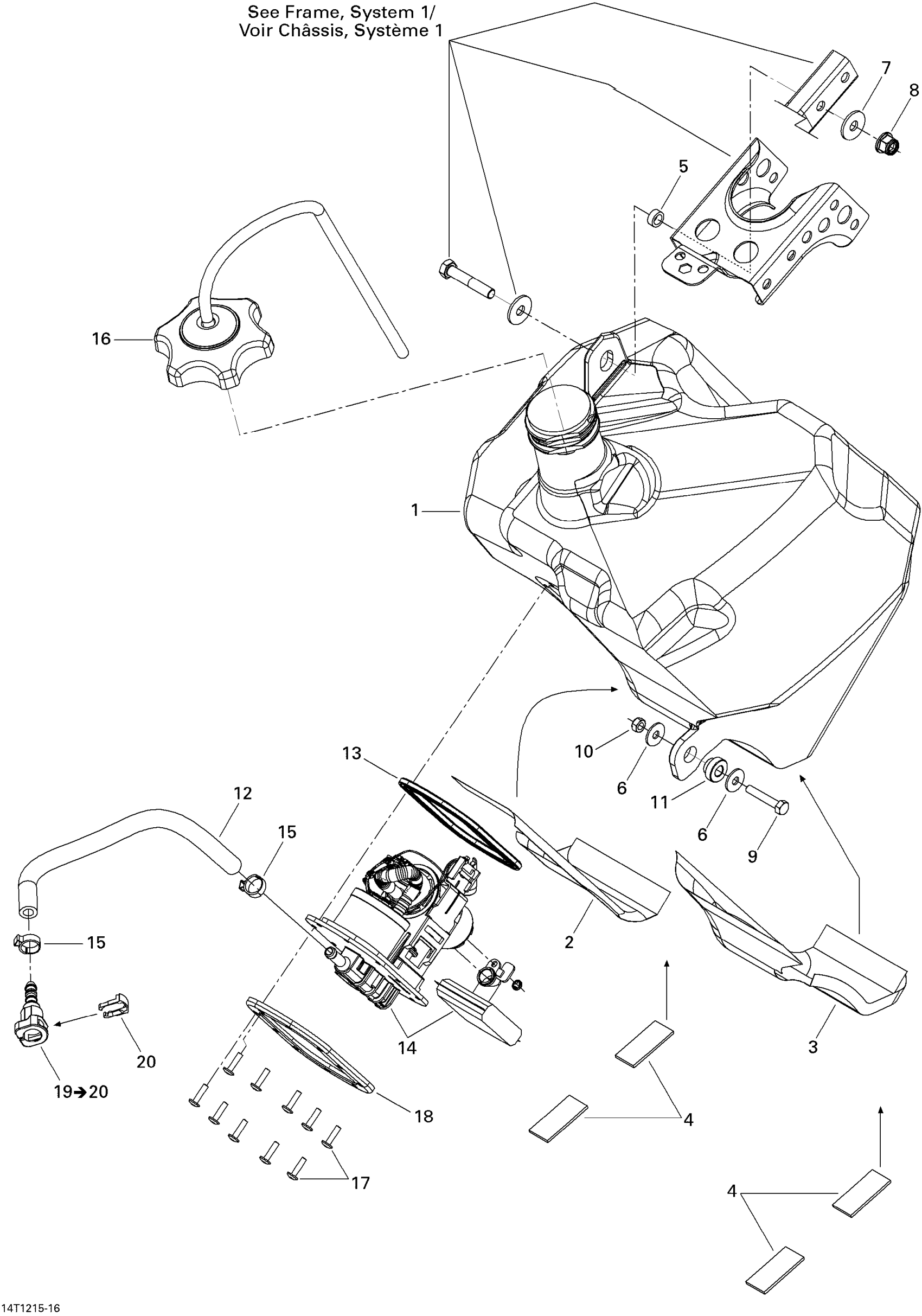

Can-Am DS 450EFI Xmx, 2013 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000237

Unavailable

2

REFLECTIVE SHEET - Call your local BRP dealership

709000242

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

709000243

Unavailable

4

Rubber Pad

709000401

$9.49

5

BUSHING - Call your local BRP dealership

293900067

Unavailable

6

Flat Washer

250200082

$0.40

7

Flat Washer M8

234082430

$2.00

8

Hex. Flange Elastic Nut M8

233281434

$2.00

9

Hex. Flange Screw M6 X 35

207063544

$1.31

10

Elastic Stop Nut M6

232561434

$1.78

11

BUSHING - Call your local BRP dealership

293900088

Unavailable

12

Was 709000163 Fuel Line

219704440

$25.34

13

Joint Etanche *Gasket

709000540

$34.30

14

Fuel Pump

709000386

Unavailable

15

Crimp Clamp, 15.3-706R

293650047

$3.03

16

FUEL CAP - Call your local BRP dealership

709000117

Unavailable

17

Torx Screw M4 X 16

250000750

$1.57

18

Pump Ring

709000170

$14.90

19

Female Quick Fitting Ass'y

709000125

$12.76

20

Locking Clip

513033135

$4.96
