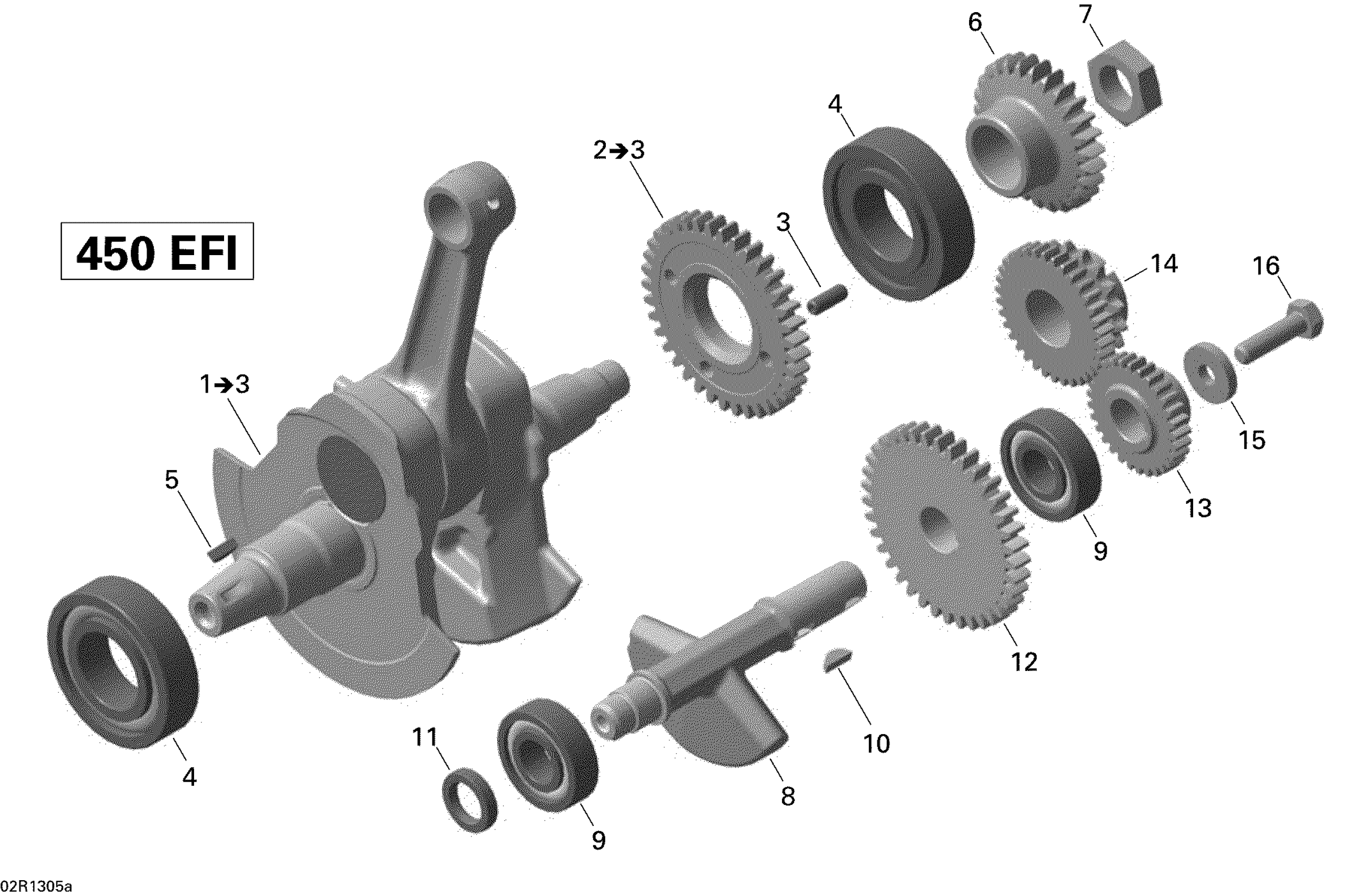

Can-Am DS 450EFI Xmx, 2013 Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass. | Includes 1 to 3

420685093

Unavailable

2

Balance Gear, 37 Teeth | Includes 2 to 3

420434697

$175.35

3

DOWEL PIN 6 X 16 - Call your local BRP dealership

420229490

Unavailable

4

Balll Bearing

420832526

Unavailable

5

Woodruff Key 4 X 5

420246570

$3.29

6

DRIVE GEAR, 27 TEETH - Call your local BRP dealership

420434680

$76.12

7

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

8

BALANCE SHAFT - Call your local BRP dealership

420620800

Unavailable

9

Balll Bearing

420232855

Unavailable

10

Woodruff Key 4 X 5

420246570

$3.29

11

Oil Seal

420250130

Unavailable

12

Balance Gear, 37 Teeth

420434690

$147.66

13

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

$79.20

14

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

$76.89

15

WASHER 23 MM - Call your local BRP dealership

420626460

Unavailable

16

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable
