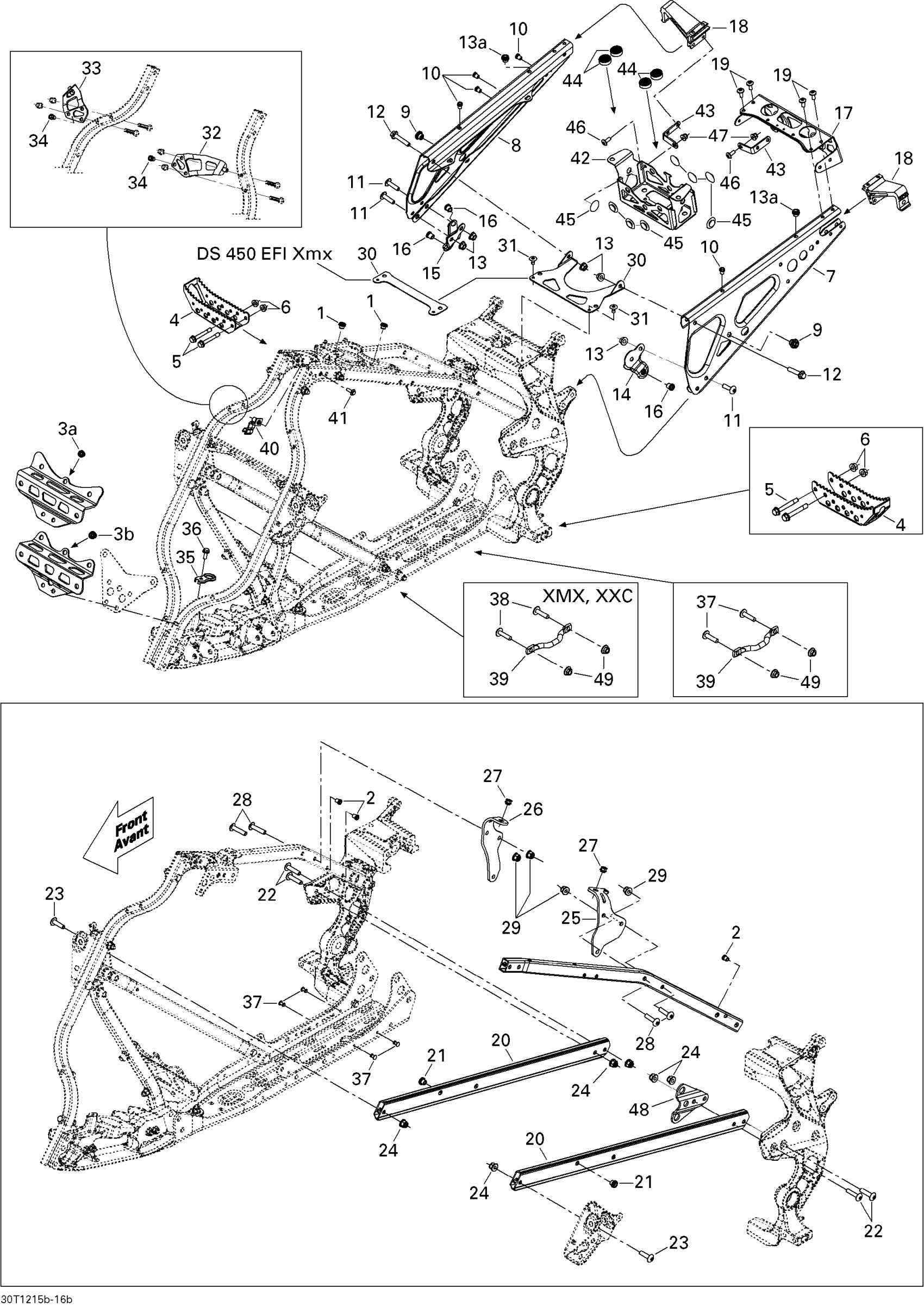

Can-Am DS 450EFI STD, 2012 Frame, System 2 Diagram

#

Description
Price

1

Threaded Insert M6 X 1.0

250100242

$2.54

2

Insert M5 X 0.8

293450268

$1.95

3a

Not Available As Spare Parts

XXX

Unavailable

3b

Insert

293450275

$9.89

4

FOOTREST - Call your local BRP dealership

705201044

Unavailable

5

HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership

207586034

Unavailable

6

Hex. Flange Nut M8

233181434

$2.06

7

EXTENTION - Call your local BRP dealership

705202547

$69.97

8

EXTENTION - Call your local BRP dealership

705202548

Unavailable

9

Threaded Insert M6 X 1.0

250100242

$2.54

10

Insert M5 X 0.8

293450268

$1.95

11

Hex Torx Truss M8 X30

250000745

$3.05

12

Hex. Flange Screw M8 X 40

207684034

$2.06

13

Hex. Flange Nut M8

233181434

$2.06

13a

Insert

293450275

$9.89

14

LH Bracket

707600399

Unavailable

15

RH Bracket

705201485

Unavailable

16

Insert

293450275

$9.89

17

PLATE SUPPORT - Call your local BRP dealership

705201898

$25.35

18

REAR FENDER SUPPORT - Call your local BRP dealership

705002094

$15.35

19

Torx Screw M6 X 16

250000223

$1.74

20

Side Member

705201950

$73.05

21

Insert

293450275

$9.89

22

Torx Truss Screw M8 X 35

250000256

$0.91

23

Hex Torx Truss M8 X30

250000745

$3.05

24

Hex. Flange Elastic Nut M8

233281434

$1.74

25

LH ENGINE SUPPORT - Call your local BRP dealership

705201380

$15.35

26

RH ENGINE SUPPORT - Call your local BRP dealership

705201381

$18.43

27

Insert

293450278

$4.09

28

Torx Truss Screw M8 X 35

250000256

$0.91

29

Hex. Flange Elastic Nut M8

233281434

$1.74

30

REAR BRACE - Call your local BRP dealership

705201406

Unavailable

31

Pop Rivet 3/16"

293150008

$0.40

32

LH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201461

$17.66

33

RH BODY ATTACHMENT PLATE - Call your local BRP dealership

705201462

$17.66

34

Insert M5 X 0.8

293450268

$1.95

35

RADIATOR GUIDE - Call your local BRP dealership

705201550

$4.86

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

37

Torx Screw M5 X 20

250000792

$1.74

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Cable Support

707000561

Unavailable

41

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

42

SUPPORT - Call your local BRP dealership

705202456

$64.58

43

BRACKET - Call your local BRP dealership

707000864

$11.38

44

Rubber Stopper

708000506

$6.15

45

Rubber Stopper

708000862

$7.06

46

Torx Screw M6 X 16

250000223

$1.74

47

Flange Elastic Nut M6

233261434

$3.61

48

Solenoide Support

705202636

$19.20

49

Hex. Flange Nut M5

250100071

$1.77
