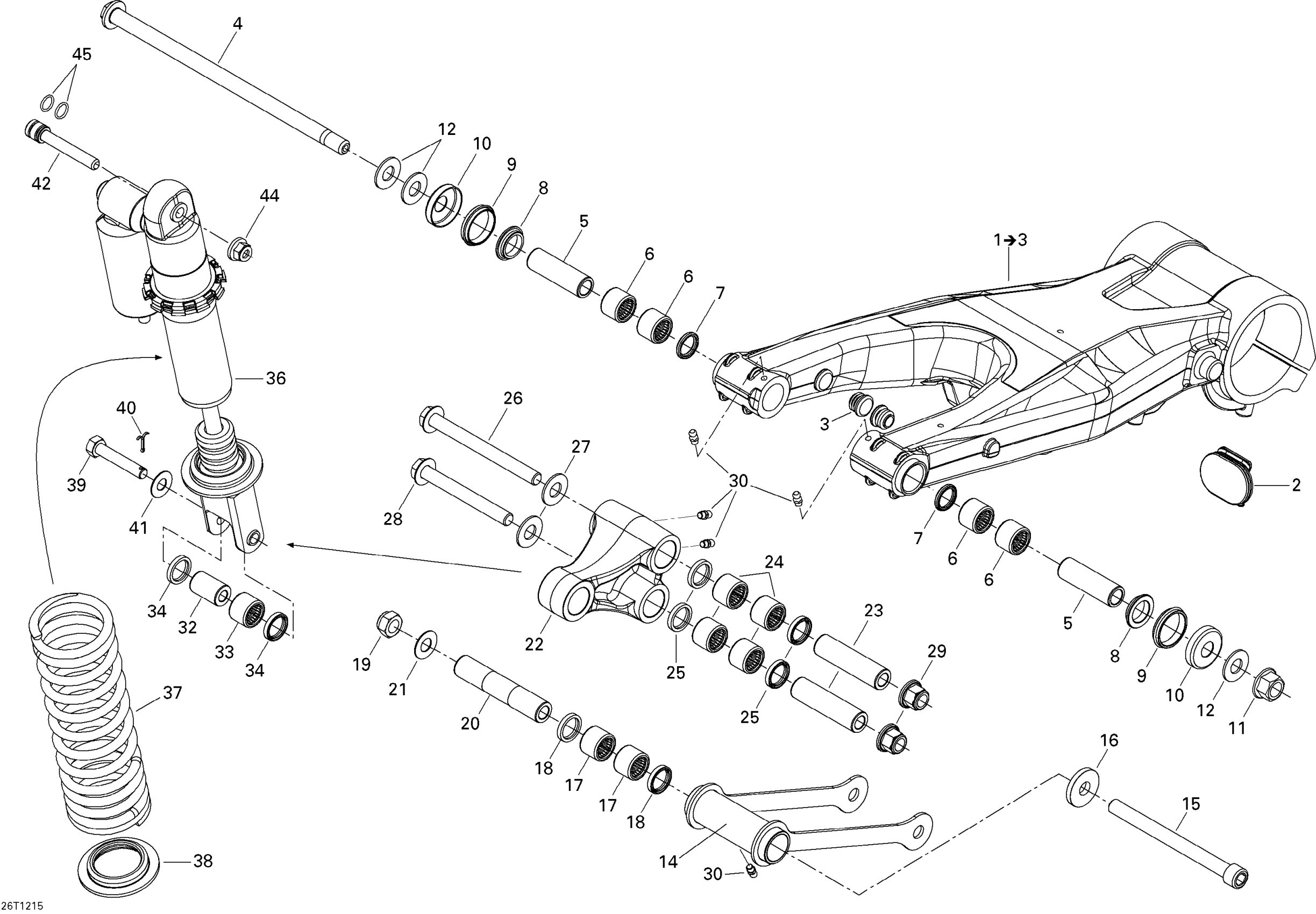

Can-Am DS 450EFI STD, 2012 Rear Suspension Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000849

Unavailable

2

SWING ARM CAP - Call your local BRP dealership

706000459

Unavailable

3

Cap

517302716

$3.73

4

HEX. SCREW M14 X 287 - Call your local BRP dealership

250000358

Unavailable

5

BUSHING - Call your local BRP dealership

706000978

$24.58

6

Bearing

706000447

$11.83

7

SEAL - Call your local BRP dealership

706000850

$9.74

8

SPACER - Call your local BRP dealership

706000701

$11.38

9

SEAL - Call your local BRP dealership

706000750

$7.29

10

SEAL CAP - Call your local BRP dealership

706000738

$30.74

11

Elastic Stop Nut

232571436

$2.06

12

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

14

LEVER - Call your local BRP dealership

706000445

$43.05

15

Hexa gonal Socket Screw M12 X 140

231024087

$9.29

16

Washer

250200052

$10.14

17

Bearing

706000447

$11.83

18

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

19

Elastic Stop Nut M12

232521416

$1.40

20

BUSHING - Call your local BRP dealership

706000730

Unavailable

21

Hardened Washer

706200281

$2.34

22

SECONDARY LEVER - Call your local BRP dealership

706200465

$135.35

23

Bushing

706000731

$14.75

24

Bearing

706000447

$11.83

25

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

26

SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership

230223086

$9.91

27

Hardened Washer

706200281

$2.34

28

Hexagonal Screw M12 X 105

230020586

$7.28

29

Flange Elastic Nut

233221434

$4.28

30

Grease Fitting

250000315

$4.82

32

BUSHING - Call your local BRP dealership

706000733

$7.65

33

Bearing

706000447

$11.83

34

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

36

REAR SHOCK - Call your local BRP dealership

706000504

Unavailable

37

Yellow Spring | Yellow Model

706000677

Unavailable

38

Spring Stopper

706000567

$15.35

39

BOLT M10 - Call your local BRP dealership

250000254

Unavailable

40

Cotter Pin

250400034

$2.06

41

Flat Washer

250200080

$2.06

42

SCREW - Call your local BRP dealership

706000541

Unavailable

44

Hex. Flange Elastic Nut M10

233201436

$1.74

45

O-RING - Call your local BRP dealership

504151954

$2.14
