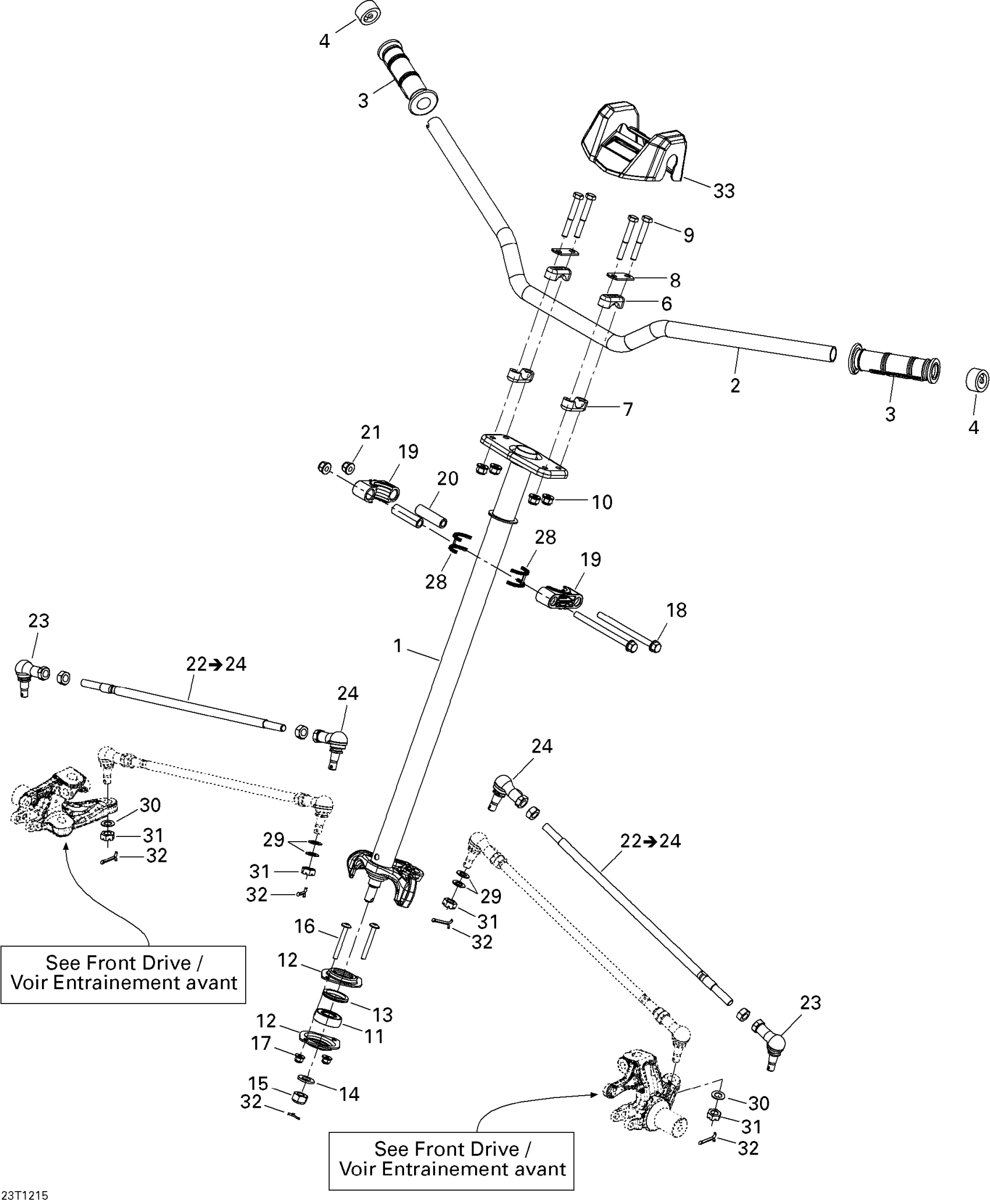

Can-Am DS 450EFI STD, 2012 Steering Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership

709400802

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400369

Unavailable

3

Handle Grip

709400493

$14.75

4

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Steering Support

709400919

$20.74

7

Steering Support

709400919

$20.74

8

Stiffner

709400509

$4.43

9

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

207086034

Unavailable

10

Hex. Flange Elastic Nut M8

233281434

$1.74

11

Ball Bearing

709400439

$18.43

12

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

13

Seal

293250177

$7.37

14

Flat Washer

234021430

$2.06

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

16

Torx Screw M6 X 50

250000317

$2.06

17

Flange Elastic Nut M6

233261434

$3.61

18

Hex. Flange Screw M8 X 110

230681034

$4.28

19

Half Bushing

709400471

$13.59

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281434

$1.74

22

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

23

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

24

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

28

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

29

Washer

503183800

$3.20

30

Washer

503183800

$3.20

31

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

32

Cotter Pin

250400034

$2.06

33

STEERING COVER - Call your local BRP dealership

709400452

Unavailable
