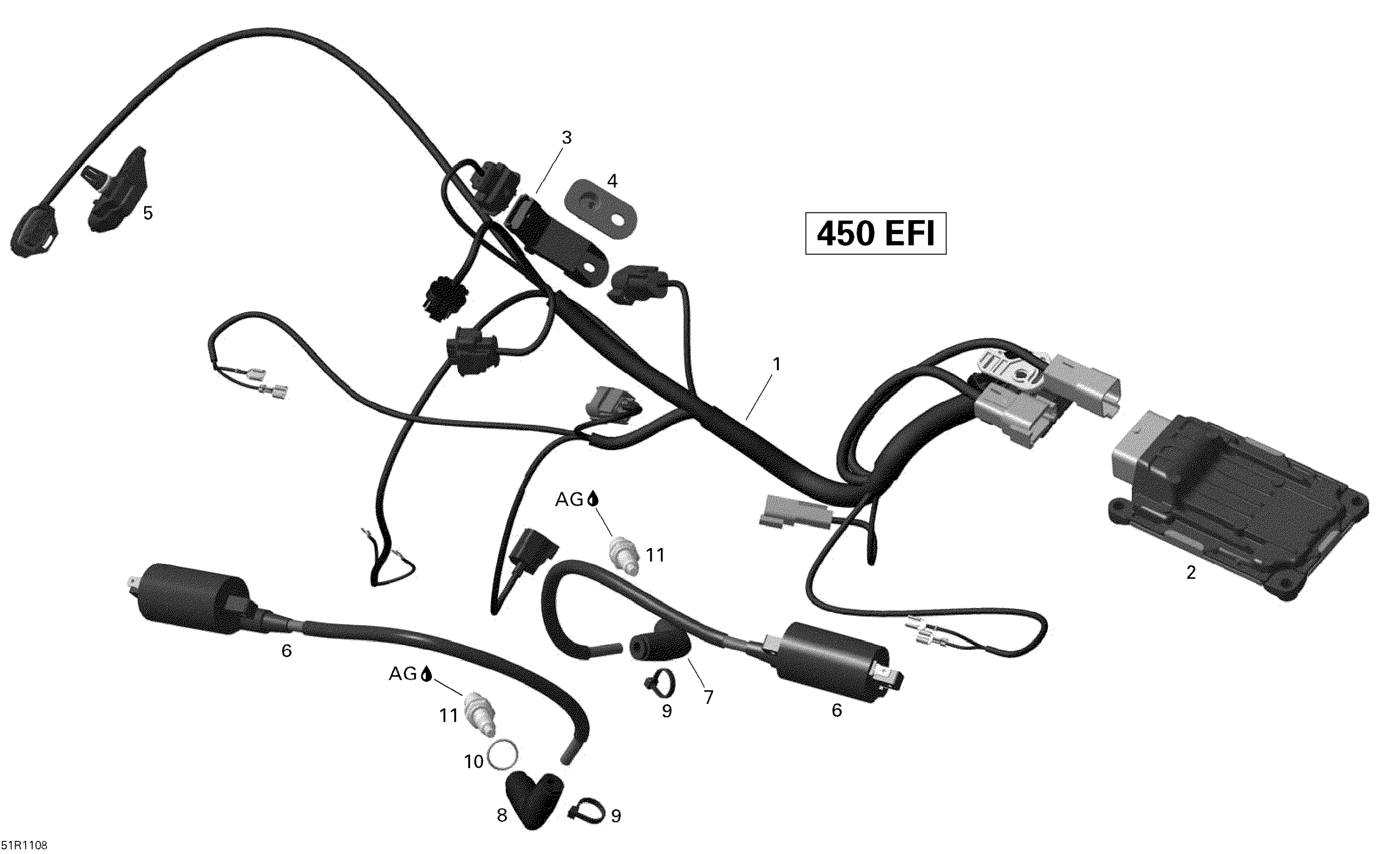

Can-Am DS 450 Xxc, Xmx EFI, 2011 Engine Harness And Electronic Module Diagram

#

Description

Price

1

WIRING HARNESS ASS'Y - Call your local BRP dealership

420665591

$506.89

2

Module Ecu *Electronic Box

420266697

$1,424.99

3

Pressure Sensor

270600040

$157.92

4

ADAPTOR - Call your local BRP dealership

420460700

$9.74

5

Pressure And Temperature Sensor

707000995

$70.82

6

Ignition Coil

420265414

$110.74

7

Spark Plug Connector, Short

420265244

$32.28

8

Spark Plug Connector, Long

420265246

$27.66

9

Tie Rap

420866710

$4.36

10

O-Ring

420230890

$4.41

11

Spark Plug NGK DCPR9E

278002297

$5.66

AG

Heat-Sink Paste P12, 90 ml

420897186

$31.82
