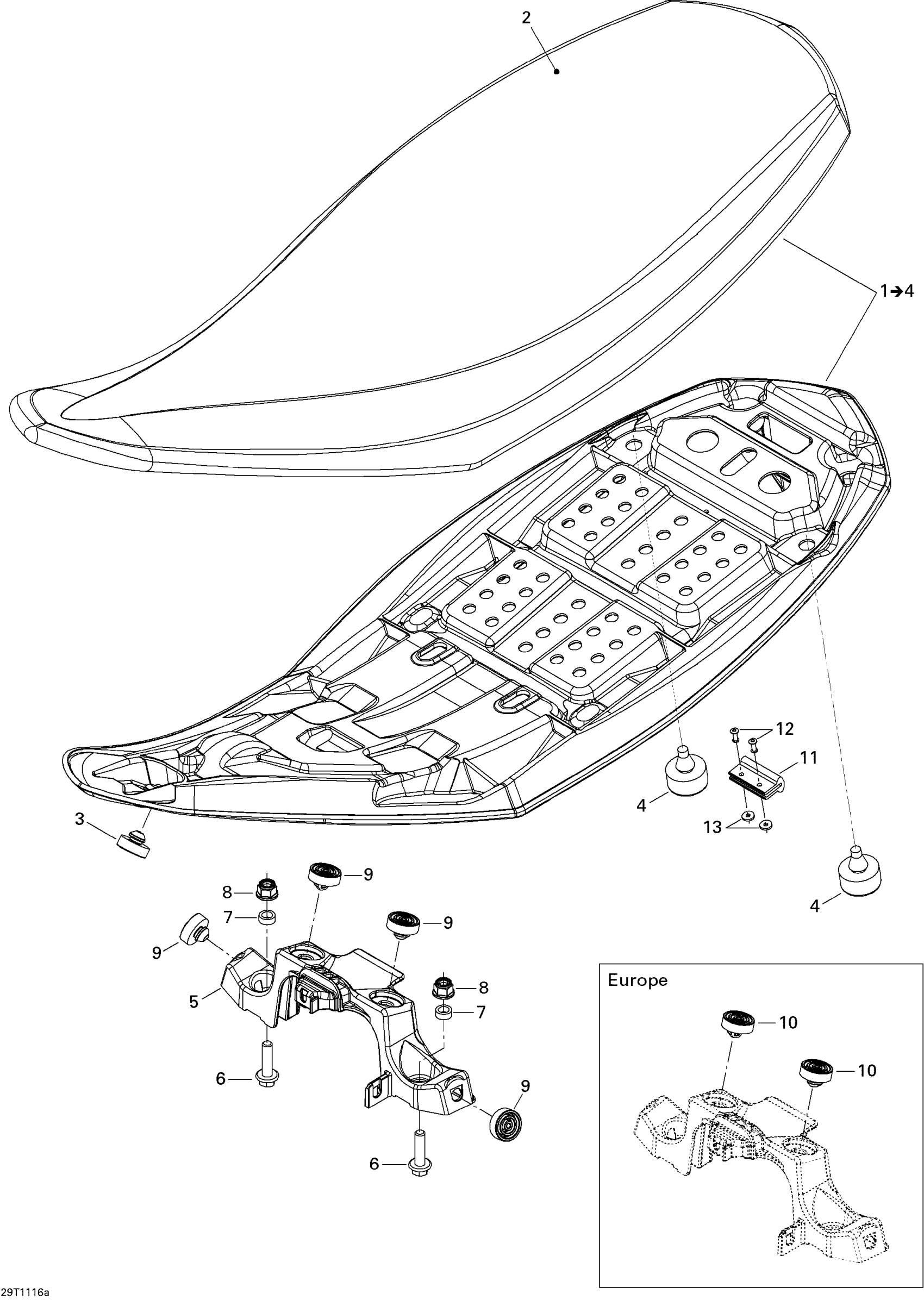

Can-Am DS 450 Xxc, Xmx EFI, 2011 Seat Xmx Europe Diagram

#

Description

Price

1

SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 4

708001150

Unavailable

2

Seat Cover

708000729

$152.28

3

Rubber Stopper

708000506

$6.15

4

Rubber Stopper

708000758

$9.37

5

SEAT GUIDE - Call your local BRP dealership

705201407

$14.02

6

Hex. Flange Screw M8 X 30

207683034

$4.28

7

BUSHING - Call your local BRP dealership

293900067

$7.38

8

Hex. Flange Elastic Nut M8

233281434

$1.74

9

Rubber Stopper

708000506

$6.15

10

Rubber Stopper

708000506

$6.15

11

ANCHOR - Call your local BRP dealership

705201353

$6.49

12

Pop Rivet 1/8”

293150015

$0.34

13

WASHER - Call your local BRP dealership

293150007

$0.38
