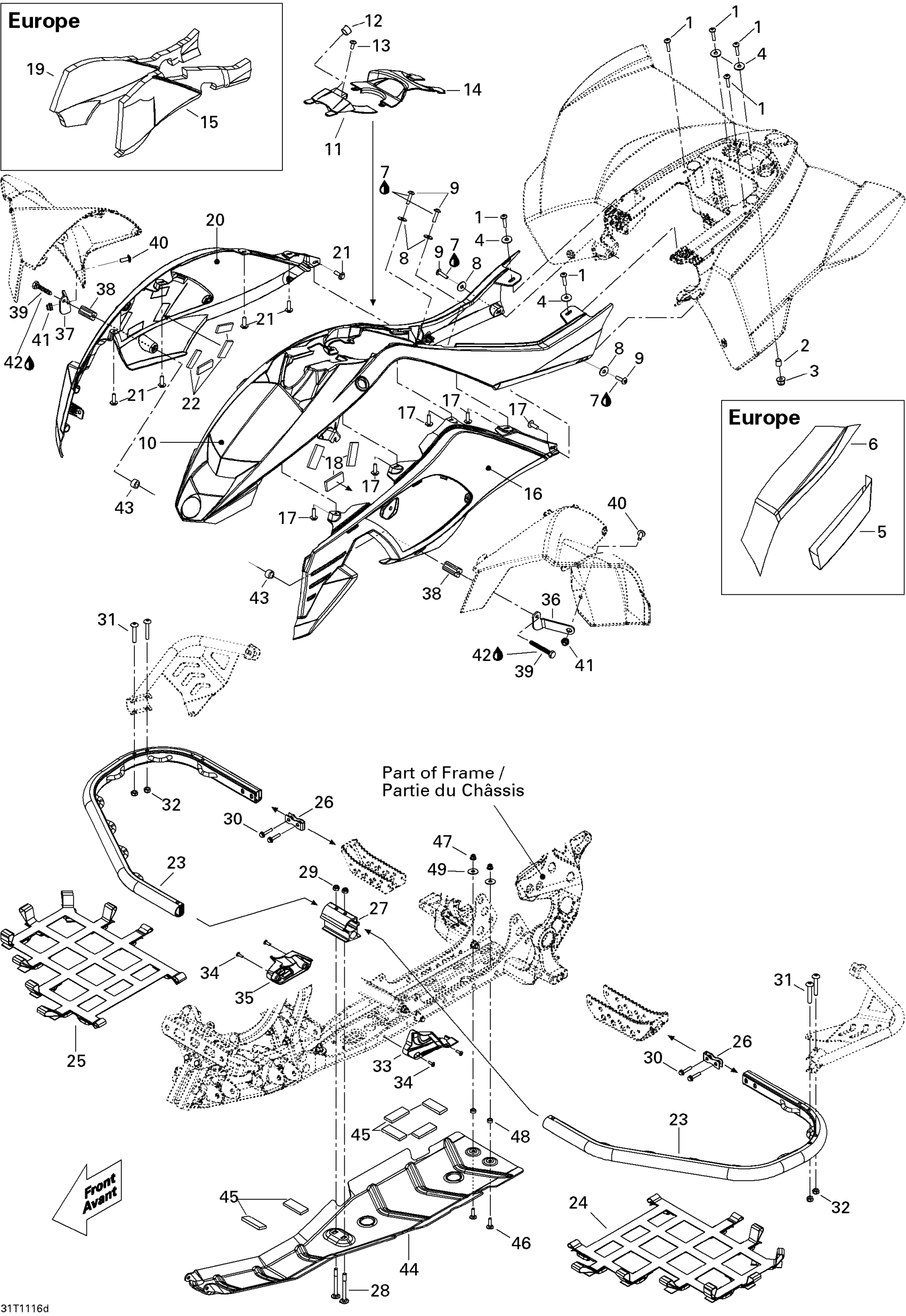

Can-Am DS 450 Xxc, Xmx EFI, 2011 Body And Accessories 4 Xmx Europe Diagram

#

Description
Price

1

Torx Screw M5 X 25

250000762

$1.74

2

Bushing

709000162

$13.83

3

Hex. Flange Elastic Nut M5

233251414

$1.66

4

Washer | DS 650 X

391301600

$0.48

5

Reflective Sheet | Europe

705003351

Unavailable

6

Reflective Sheet | Europe

705003357

Unavailable

7

Loctite 243, 10 ml

293800060

$20.77

8

Stainless Steel Flat Washer

234062670

$1.74

9

Torx Screw M6 x 25

250000284

$1.74

10

Front fascia

705002157

Unavailable

11

DASH-BOARD - Call your local BRP dealership

705003316

Unavailable

12

Cap

572051500

$5.38

13

Torx Truss Screw M6 X 16

250000721

$1.39

14

ACCESS COVER - Call your local BRP dealership

705002288

Unavailable

15

L.H. Foam

705003293

Unavailable

16

LH SIDE PANNEL - Call your local BRP dealership

705002961

$78.99

17

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

18

Not Available As Spare Parts

XXX

Unavailable

19

R.H. Foam

705003292

Unavailable

20

RH SIDE PANNEL - Call your local BRP dealership

705002962

$83.05

21

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

22

Not Available As Spare Parts

XXX

Unavailable

23

NERF BAR - Call your local BRP dealership

705003065

Unavailable

24

LH NET - Call your local BRP dealership

705001952

$35.35

25

RH NET - Call your local BRP dealership

705001953

$36.89

26

ATTACHMENT PLATE - Call your local BRP dealership

705002646

$13.83

27

NERF BAR HOLDER - Call your local BRP dealership

705003761

$13.83

28

CARRIAGE BOLT M8 X 80 - Call your local BRP dealership

207788036

$5.80

29

Elastic Stop Nut

232581434

$1.64

30

Hex. Flange Screw M8 X 25

207682534

$0.90

31

Torx Truss Screw M8 X 50

250000761

$6.18

32

Elastic Stop Nut

232581434

$1.64

33

LH ENGINE MOULDING - Call your local BRP dealership

705002631

$29.20

34

Torx Screw M6 X 20

250000722

$1.34

35

RH Engine Moulding

705002632

Unavailable

36

LH FENDER SUPPORT - Call your local BRP dealership

705002695

$6.49

37

RH FENDER SUPPORT - Call your local BRP dealership

705002696

Unavailable

38

BUSHING - Call your local BRP dealership

705002697

Unavailable

39

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

$3.31

40

Torx Truss Screw M6 X 16

250000721

$1.39

41

Threaded Insert M6 X 1.0

250100242

$2.54

42

Loctite 243, 10 ml

293800060

$20.77

43

BUSHING - Call your local BRP dealership

293900067

$7.38

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable
