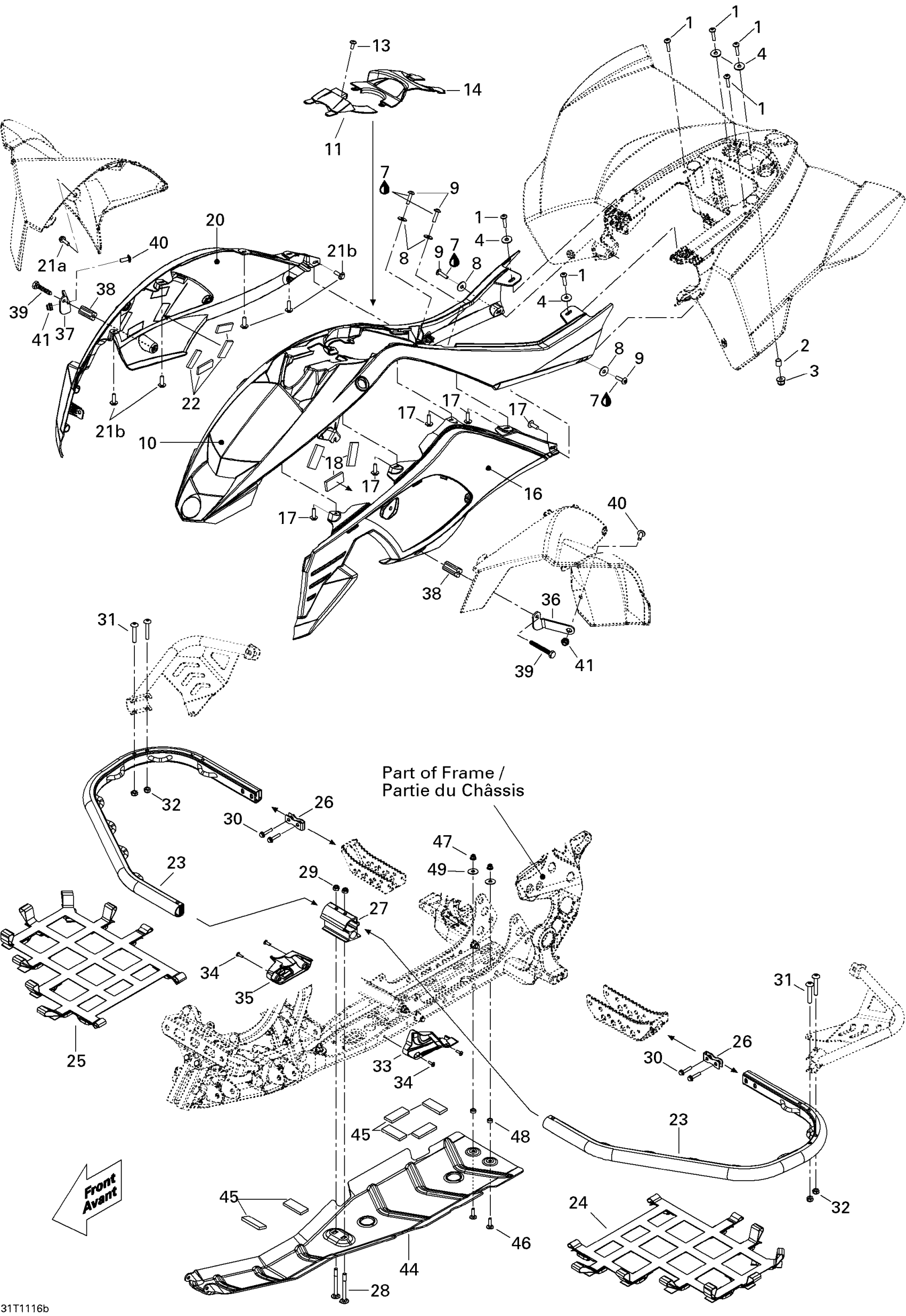

Can-Am DS 450 Xxc, Xmx EFI, 2011 Body And Accessories 2 Diagram

#

Description
Price

1

Torx Screw M5 X 25

250000762

$1.74

2

Bushing

709000162

$13.83

3

Hex. Flange Elastic Nut M5

233251414

$1.66

4

Washer | DS 650 X

391301600

$0.48

7

Loctite 243, 10 ml

293800060

$20.77

8

Stainless Steel Flat Washer

234062670

$1.74

9

Torx Screw M6 x 25

250000284

$1.74

10

FRONT FASCIA - Call your local BRP dealership

705001750

$124.58

11

DASH-BOARD - Call your local BRP dealership

705001758

$11.38

13

Torx Truss Screw M6 X 16

250000721

$1.39

14

ACCESS COVER - Call your local BRP dealership

705002288

Unavailable

16

LH SIDE PANEL - Call your local BRP dealership

705004039

$77.66

17

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

18

Gasket

705002447

$3.63

20

RH SIDE PANEL - Call your local BRP dealership

705004040

$77.66

21a

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

21b

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

22

Gasket

705002447

$3.63

23

NERF BAR - Call your local BRP dealership

705003924

Unavailable

24

LH NET - Call your local BRP dealership

705003928

$35.35

25

RH NET - Call your local BRP dealership

705003929

Unavailable

26

ATTACHMENT PLATE - Call your local BRP dealership

705002646

$13.83

27

NERF BAR HOLDER - Call your local BRP dealership

705003761

$13.83

28

CARRIAGE BOLT M8 X 80 - Call your local BRP dealership

207788036

$5.80

29

Elastic Stop Nut

232581434

$1.64

30

Hex. Flange Screw M8 X 25

207682534

$0.90

31

Torx Truss Screw M8 X 50

250000761

$6.18

31

Torx Truss Screw M8 X 50

250000761

$6.18

32

Elastic Stop Nut

232581434

$1.64

32

Elastic Stop Nut

232581434

$1.64

33

LH ENGINE MOULDING - Call your local BRP dealership

705002631

$29.20

34

Torx Screw M6 X 20

250000722

$1.34

35

RH Engine Moulding

705002632

Unavailable

36

LH FENDER SUPPORT - Call your local BRP dealership

705002695

$6.49

37

RH FENDER SUPPORT - Call your local BRP dealership

705002696

Unavailable

38

BUSHING - Call your local BRP dealership

705002697

Unavailable

39

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$6.08

40

Torx Truss Screw M6 X 16

250000721

$1.39

41

Threaded Insert M6 X 1.0

250100242

$2.54

44

SKID PLATE - Call your local BRP dealership | Xxc

705201761

Unavailable

45

PROTECTOR - Call your local BRP dealership

293830083

$6.49

46

CARRIAGE BOLT M6 X 25 - Call your local BRP dealership

207762534

$1.69

47

Flange Elastic Nut M6

233261434

$3.61

48

BUSHING - Call your local BRP dealership

293900067

$7.38

49

Flat Washer M6, Stainless

234062600

$0.64
