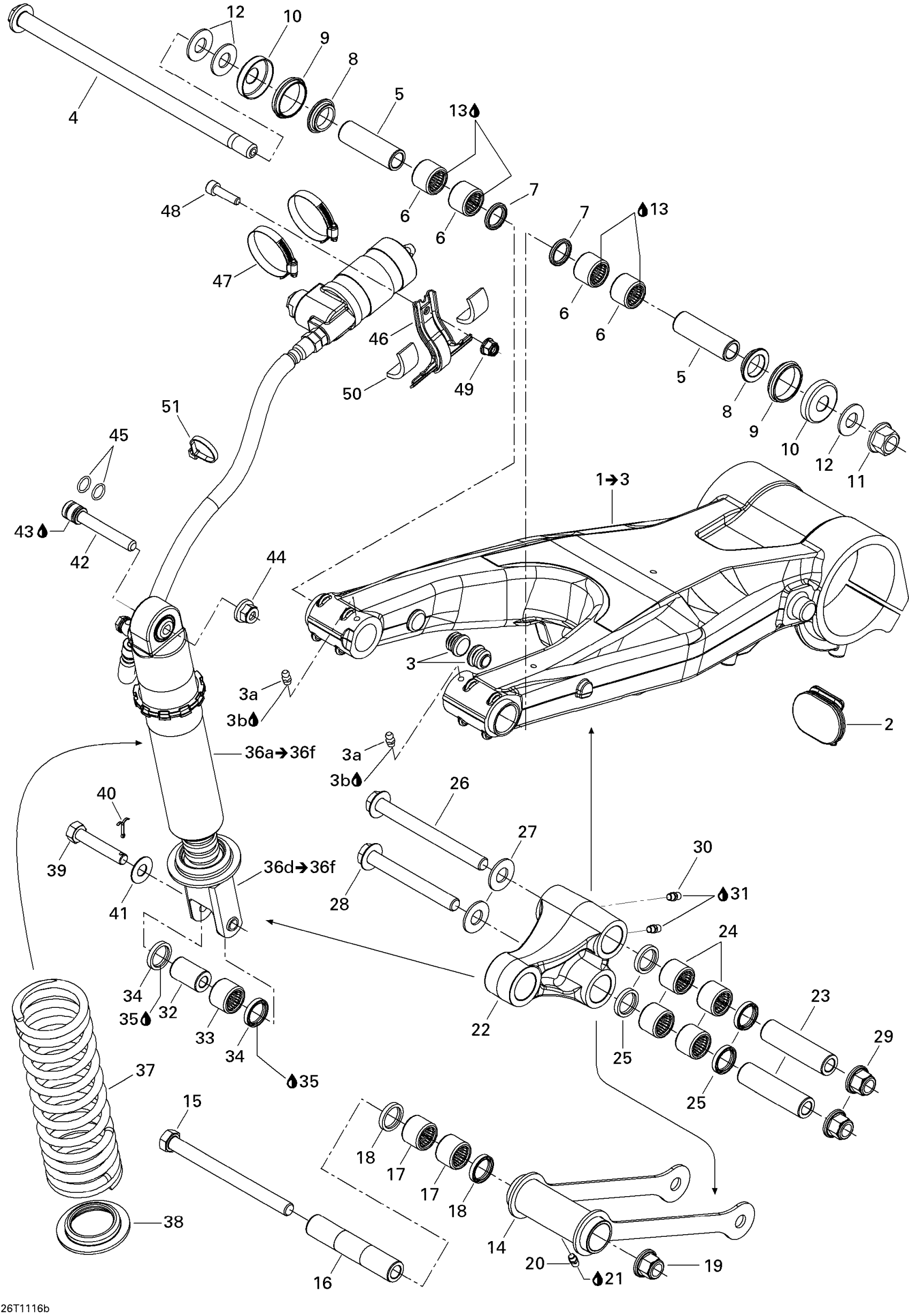

Can-Am DS 450 Xxc, Xmx EFI, 2011 Rear Suspension Xmx Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000849

Unavailable

2

SWING ARM CAP - Call your local BRP dealership

706000459

Unavailable

3

Cap

517302716

$3.73

3a

Grease Fitting

250000315

$4.82

3b

Synthetic Grease, 400 G

293550010

Unavailable

4

HEX. SCREW M14 X 287 - Call your local BRP dealership

250000358

Unavailable

5

BUSHING - Call your local BRP dealership

706000978

$24.58

6

Bearing

706000447

$11.83

7

SEAL - Call your local BRP dealership

706000850

$9.74

8

SPACER - Call your local BRP dealership

706000701

$11.38

9

SEAL - Call your local BRP dealership

706000750

$7.29

10

SEAL CAP - Call your local BRP dealership

706000738

$30.74

11

Elastic Stop Nut

232571436

$2.06

12

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

LEVER - Call your local BRP dealership

706000445

$43.05

15

Hexagonal Screw M12 x 145

230024586

Unavailable

16

BUSHING - Call your local BRP dealership

706000730

Unavailable

17

Bearing

706000447

$11.83

18

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

19

Flange Elastic Nut

233221434

$4.28

20

Grease Fitting

250000315

$4.82

21

Synthetic Grease, 400 G

293550010

Unavailable

22

SECONDARY LEVER - Call your local BRP dealership

706200465

$135.35

23

Bushing

706000731

$14.75

24

Bearing

706000447

$11.83

25

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

26

SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership

230223086

$9.91

27

Hardened Washer

706200281

$2.34

28

Hexagonal Screw M12 X 105

230020586

$7.28

29

Flange Elastic Nut

233221434

$4.28

30

Grease Fitting

250000315

$4.82

31

Synthetic Grease, 400 G

293550010

Unavailable

32

BUSHING - Call your local BRP dealership

706000733

$7.65

33

Bearing

706000447

$11.83

34

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

35

Synthetic Grease, 400 G

293550010

Unavailable

36a

REAR SHOCK - Call your local BRP dealership | Includes 36a to 36f

706000611

$466.99

36b

Spring Stopper

706000567

$15.35

36c

SHOCK OIL, 1 LITER - Call your local BRP dealership

293600136

Unavailable

36d

Rear Piston And Rod Kit | Includes 36d to 36f

715500331

Unavailable

36e

Circlip En C

715900075

$4.86

36f

Circlip - Call your local BRP dealership

715900076

$4.03

37

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000847

$78.43

38

Spring Stopper

706000567

$15.35

39

BOLT M10 - Call your local BRP dealership

250000254

Unavailable

40

Cotter Pin

250400034

$2.06

41

FLAT WASHER - Call your local BRP dealership

250200074

$2.38

42

SCREW - Call your local BRP dealership

706000541

Unavailable

43

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

44

Hex. Flange Elastic Nut M10

233201436

$1.74

45

O-RING - Call your local BRP dealership

504151954

$2.14

46

SUPPORT - Call your local BRP dealership

706001423

Unavailable

47

Tridon Clamp

293650036

$5.86

48

Socket Head Screw M8 X 30

205083044

$0.92

49

Hex. Flange Elastic Nut M8

233281434

$1.74

50

RUBBER PAD - Call your local BRP dealership

293830129

$5.68

51

Tie-rap 627 mm

293750041

$0.91
