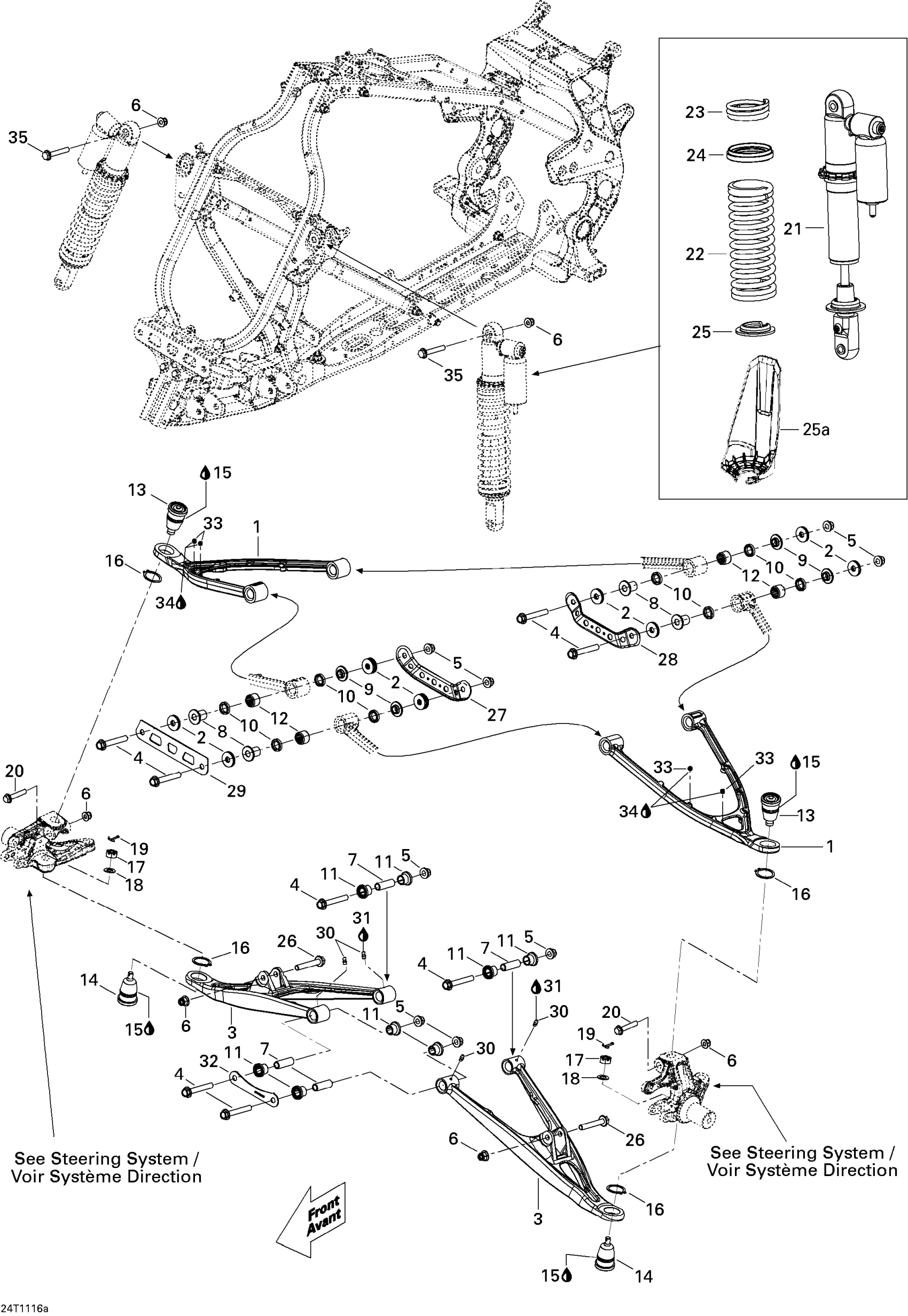

Can-Am DS 450 Xxc, Xmx EFI, 2011 Front Suspension Xxc Diagram

#

Description
Price

1

UPPER ARM - Call your local BRP dealership

706200864

Unavailable

2

Flat Washer M10 | 4X4

250200014

$1.17

3

LOWER ARM - Call your local BRP dealership

706200456

Unavailable

4

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

$3.54

5

Hex. Flange Elastic Nut M10

233201436

$1.74

6

Hex. Flange Elastic Nut M10

233201434

$1.63

7

Sleeve

706201587

$4.60

8

Inner Bushing

706200888

$15.35

9

INNER BUSHING - Call your local BRP dealership

706200889

$14.78

10

SEAL - Call your local BRP dealership

293200120

Unavailable

11

Bushing

706200181

$3.68

12

Needle Bearing

293350064

$22.28

13

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

14

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

15

Loctite 609, 10 ml

413703100

$24.58

16

Circlip 32 mm

293370009

$1.49

17

CASTLE NUT - Call your local BRP dealership

250100094

$3.54

18

Flat Washer 10 mm

234001410

$0.98

19

Cotter Pin

250400035

$2.06

20

Hex. Flange Screw

207605534

$2.06

21

FRONT SHOCK - Call your local BRP dealership

706200531

Unavailable

22

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200830

$78.43

23

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200873

$48.43

24

Spring Spacer

503191281

$7.66

25

SPRING STOPPER - Call your local BRP dealership

706000528

$11.38

25a

ROD PROTECTOR - Call your local BRP dealership

706201286

$7.29

26

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable

27

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

28

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

29

Plate

706200759

Unavailable

30

Grease Fitting

250000315

$4.82

31

Synthetic Grease, 400 G

293550010

Unavailable

32

Front Suspension Lower Plate

706200722

Unavailable

33

Socket Set Screw M6 X 6

206260699

$3.63

34

Loctite 243, 10 ml

293800060

$20.77

35

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable
