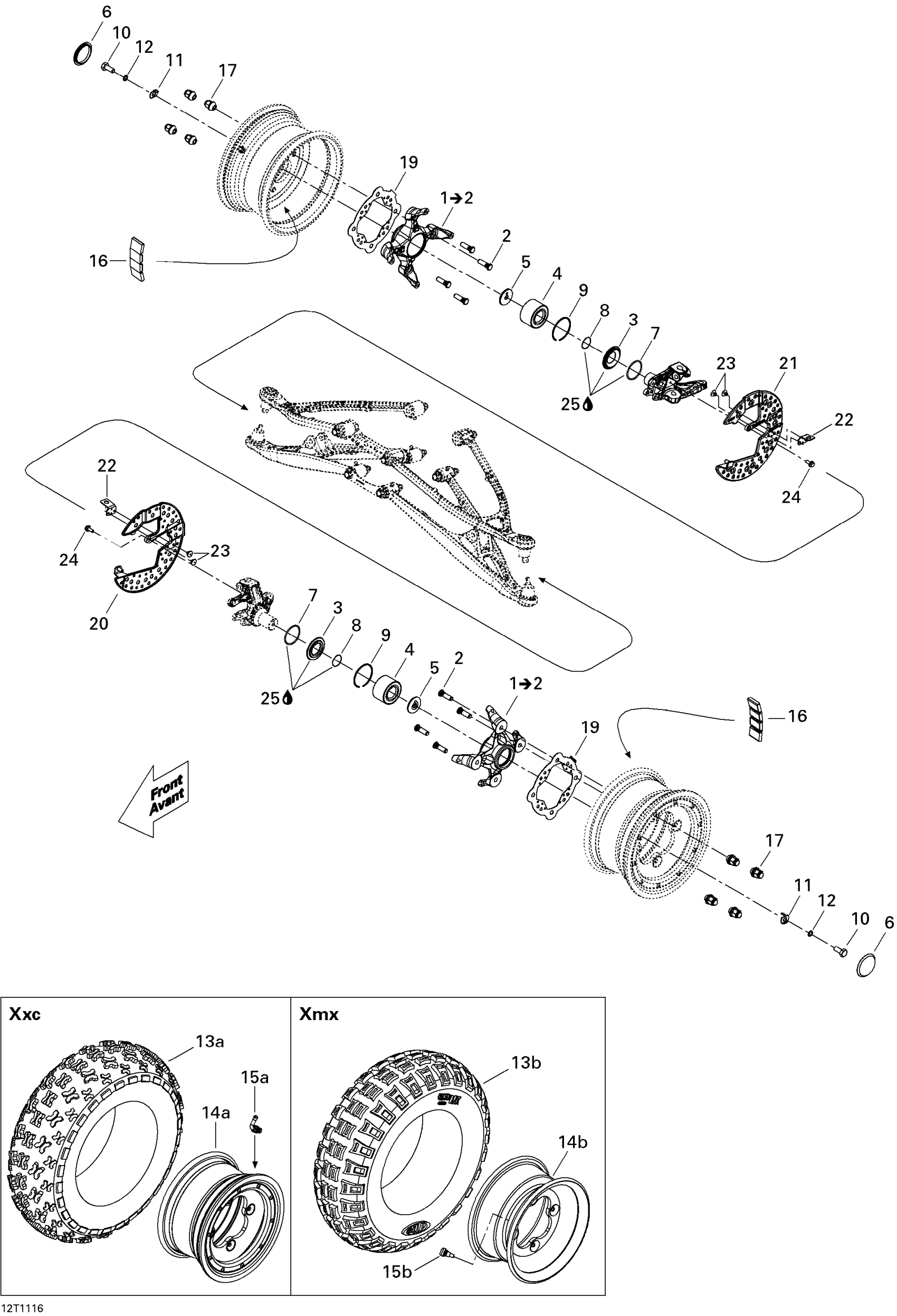

Can-Am DS 450 Xxc, Xmx EFI, 2011 Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 1 to 2

705400724

$97.66

2

Wheel Stud

250300013

$3.98

3

SUPPORT RING - Call your local BRP dealership

705400371

Unavailable

4

Ball Bearing

293350150

$52.99

5

WASHER - Call your local BRP dealership

705400722

Unavailable

6

CAP - Call your local BRP dealership

705400792

Unavailable

7

O-RING - Call your local BRP dealership

293300113

Unavailable

8

O-Ring

293300114

$12.97

9

Circlip

293370019

$4.98

10

HEX. SCREW M10 X 25 - Call your local BRP dealership

207102534

$1.69

11

LOCK WASHER - Call your local BRP dealership

705400767

$6.49

12

FLAT WASHER - Call your local BRP dealership

250200103

$1.62

13a

TIRE_21X7R10 F - Call your local BRP dealership | Xxc

705400650

Unavailable

13b

TIRE_20X6R10 F - Call your local BRP dealership | Xmx except Europe

705400655

$88.43

14a

RIM_10 INCH X 5,5 - Call your local BRP dealership | Xxc

705400651

$281.51

14b

RIM_10 INCH X 5 - Call your local BRP dealership | Xmx except Europe

705400656

$139.99

15a

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

$9.35

15b

Rim Valve With Cap

705400193

$6.69

16

Self Adhesive Weight, 5G 20mm

705502106

$4.35

17

Black, Wheel Nut M10 X 1.25

250100184

$2.48

19

EXTERIOR DISK - Call your local BRP dealership

705400572

$6.49

20

LH INTERIOR DISK - Call your local BRP dealership

705400573

$15.35

21

RH INTERIOR DISK - Call your local BRP dealership

705400576

$15.35

22

DISK SUPPORT - Call your local BRP dealership

705400603

Unavailable

23

Pop Rivet 3/16"

293150103

$0.54

24

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

25

Graisse *Grease

293550062

$15.35
