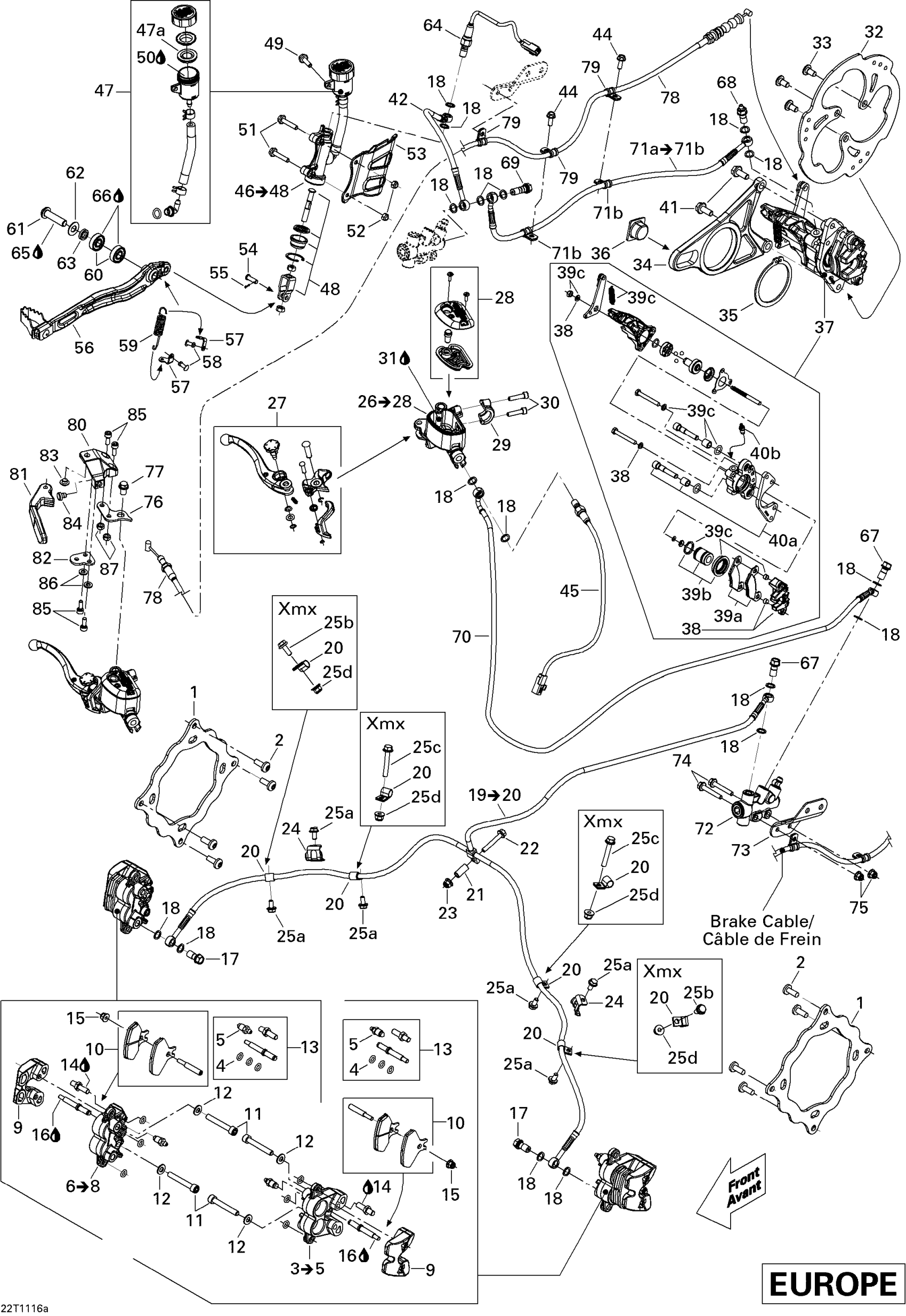

Can-Am DS 450 Xxc, Xmx EFI, 2011 Hydraulic Brakes Xmx Europe Diagram

#

Description
Price

1

FRONT BRAKE DISC - Call your local BRP dealership

705600400

$115.35

2

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

3

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 5

705600401

$200.74

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 6 to 8

705600404

$200.74

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

OUTER CALIPER - Call your local BRP dealership

705600560

Unavailable

10

Front Brake Pad Kit

705600402

$46.89

11

SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership

205085534

Unavailable

12

Flat Washer M8

234081430

$1.74

13

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

Flange Elastic Nut M6

233261434

$3.61

16

Loctite 243, 10 ml

293800060

$20.77

17

Banjo Bolt

705600628

$11.05

18

Copper Washer

705601628

$4.34

19

BRAKE LINE - Call your local BRP dealership | Includes 50 to 51

705601041

Unavailable

20

Clamp

293650256

$4.36

21

SPACER - Call your local BRP dealership

512059812

$9.38

22

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

$1.83

23

Flange Elastic Nut M6

233261434

$3.61

24

Not Available As Spare Parts

XXX

Unavailable

25a

Not Available As Spare Parts

XXX

Unavailable

25b

Hex. Flange Screw M6 X 16

207661634

$1.74

25c

Hex. Flange Screw M6 X 40

207664034

Unavailable

25d

Flange Elastic Nut M6

233261434

$3.61

26

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27

705600409

$167.66

27

Brake Lever Kit

705600491

$78.43

28

CAP SET - Call your local BRP dealership

705600493

$49.20

29

BRACKET KIT - Call your local BRP dealership

705600619

$17.66

30

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

205062534

$1.83

31

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

32

REAR BRAKE DISC - Call your local BRP dealership

705600655

$109.20

33

SHOULDER SCREW M8 - Call your local BRP dealership

250000330

$7.49

34

REAR CALIPER SUPPORT - Call your local BRP dealership

705600656

$92.28

35

SNAP RING - Call your local BRP dealership

293370045

$5.68

36

GUIDE REAR CALIPER - Call your local BRP dealership

705600412

$7.12

37

REAR CALIPER ASS'Y - Call your local BRP dealership | Includes 13 to 19

705600657

$262.28

38

Anvil Kit

705600658

Unavailable

39a

Brake Pad Kit

705600711

$46.89

39b

PISTONT KIT - Call your local BRP dealership

705600668

$43.05

39c

HARDWARE KIT - Call your local BRP dealership

705600667

$79.20

40a

SUPPORT KIT - Call your local BRP dealership

705600685

$68.43

40b

Bleeder Kit

705600686

Unavailable

41

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

42

BRAKE LINE - Call your local BRP dealership

705600986

$34.58

44

Hex. Flange Screw M6 X 16

210261650

$1.22

45

Switch

710003837

$41.51

46

Rear Master Cylinder | Includes 46 to 48

705600738

$258.43

47

SET TANK ASS'Y - Call your local BRP dealership

705600740

$60.74

47a

DIAPHRAGM - Call your local BRP dealership

705600762

$10.57

48

ROD SET - Call your local BRP dealership

705600498

Unavailable

49

Hex. Flange Screw M6 X 20

207662034

$1.74

50

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

52

Elastic Stop Nut M6

232561434

$1.55

53

Hose Protector

705600538

$10.98

54

Clevis Pin

250400031

$7.37

55

Cotter Pin

250400032

$2.31

56

BRAKE PEDAL - Call your local BRP dealership

705600534

$101.51

57

FIXATION PLATE - Call your local BRP dealership

705600631

$5.68

58

Pop Rivet 3/16”

390407200

$0.66

59

BRAKE PEDAL SPRING - Call your local BRP dealership

705600635

$10.28

60

Bearing

705600458

$7.03

61

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205404036

Unavailable

62

Washer

506152194

$4.42

63

Bushing

293900087

$7.60

64

BRAKE SWITCH - Call your local BRP dealership

710003838

Unavailable

65

Loctite 243, 10 ml

293800060

$20.77

66

Loctite 609, 10 ml

413703100

$24.58

67

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

68

SCREW BLEEDER - Call your local BRP dealership

705600680

$13.05

69

Banjo Bolt

705600958

$7.60

70

FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership

705600615

Unavailable

71a

BRAKE LINE - Call your local BRP dealership | Includes 52 to 53

705600948

Unavailable

71b

Clamp

293650256

$4.36

72

SPLITTER - Call your local BRP dealership

705600617

$132.28

73

Splitter Support

705600618

Unavailable

74

Hex. Flange Screw M6 X 45

207664544

$1.07

75

Flange Elastic Nut M6

233261434

$3.61

76

LEVER SUPPORT - Call your local BRP dealership

705600660

$13.05

77

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

78

BRAKE CABLE - Call your local BRP dealership

705600661

$60.74

79

Clamp

293650256

$4.36

80

CABLE SUPPORT - Call your local BRP dealership

705600662

$38.43

81

LEVER BRAKE - Call your local BRP dealership

705600663

Unavailable

82

SUPPORT - Call your local BRP dealership

705600664

$13.82

83

LEVER PIVOT - Call your local BRP dealership

705600665

Unavailable

84

Stopper

705600666

Unavailable

85

Socket Screw M6 X 16

205061660

$1.25

86

Stainless Flat Washer M6

234061600

$0.25

87

Elastic Stop Nut M6

232561434

$1.55
