Description

Price

1

Torx Flange Screw M6 X 25

420641238

$2.68

2

Seal Washer

420230415

$1.77

3

Water Pump Cover

420611670

$83.05

4

Gasket

420431030

$7.60

5

Spring Pin

420229280

$5.52

6

Water Pump Impeller

420222272

$14.75

7

Oil Seal

420230197

$12.65

8

Oil Seal

420230195

$12.65

9

Ball Bearing

420232100

$15.57

10

Distance Sleeve

420229880

$12.91

11

Waterpump Shaft

420220171

$32.28

12

Thrust Washer

420227680

$11.98

13

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

$76.89

14

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

$79.20

15

NEEDLE BEARING - Call your local BRP dealership

420832990

$14.49

16

THRUST WASHER - Call your local BRP dealership

420627292

$7.72

17

BEARING PIN - Call your local BRP dealership

420229135

$23.05

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

K

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

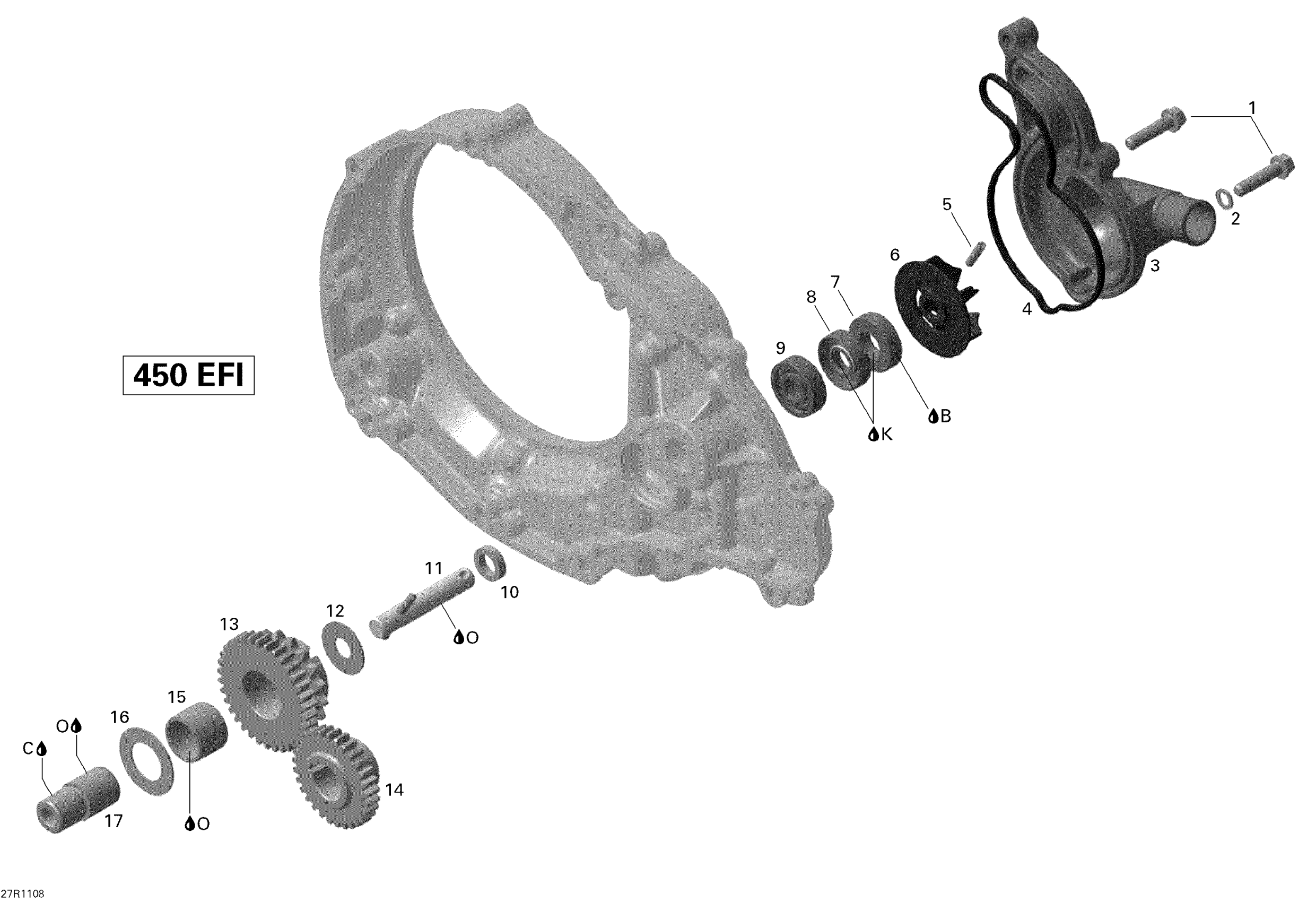

Can-Am DS 450 Xxc, Xmx EFI, 2011 Engine Cooling Diagram

Not Available As Spare Part - Friction Washer
