Description

Price

1

Cylinder Head Ass'y | Includes 1 to 7

420623470

$679.97

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

$16.12

4

Center Pin

420232210

$8.29

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Socket Head Screw M6 X 30

205063044

$1.42

7

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

8

Exhaust Valve 31 mm

420254027

$73.42

9

Intake Valve, 38 mm

420254295

$36.89

10

THRUST WASHER - Call your local BRP dealership

420227980

$7.39

11

Valve Spring Shim

420253967

$11.06

12

Seal

420230510

$11.77

13

Valve Spring, Inner

420238201

$20.74

14

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

$17.66

15

Valve Spring Retainer

420253957

$12.91

16

Valve Cotter

420253645

$6.11

17

SHIM 2.3 - Call your local BRP dealership

420253974

$11.15

17

Shim 2.35

420253975

$12.52

17

SHIM 2.4 - Call your local BRP dealership

420253976

$11.15

17

SHIM 2.45 - Call your local BRP dealership

420253977

$11.15

17

SHIM 2.5 - Call your local BRP dealership

420253978

$11.15

17

SHIM 2.55 - Call your local BRP dealership

420253979

$11.15

17

SHIM 2.6 - Call your local BRP dealership

420253980

$11.15

17

SHIM 2.65 - Call your local BRP dealership

420253981

$11.15

17

SHIM 2.7 - Call your local BRP dealership

420253982

$11.15

17

SHIM 2.75 - Call your local BRP dealership

420253983

$11.15

17

SHIM 2.8 - Call your local BRP dealership

420253984

$11.15

17

SHIM 2.85 - Call your local BRP dealership

420253985

$11.15

17

SHIM 2.9 - Call your local BRP dealership

420253986

$11.15

17

SHIM 2.95 - Call your local BRP dealership

420253987

$11.15

17

SHIM 3.0 - Call your local BRP dealership

420253988

$14.06

17

SHIM 3.05 - Call your local BRP dealership

420253989

$14.06

18

Tappet Valve

420253990

$55.35

19

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.23

20

Angular Tube

420922242

$12.29

21

Temperature Sensor

420274040

$55.35

22

Copper Washer

420250640

$0.81

23

Elbow Fitting

420224090

$16.89

24

STUB M8 X 16/20 - Call your local BRP dealership

420241560

$3.54

25

Cylinder Head Gasket

420650210

$23.05

26

Hex. Flange Nut M10

233101414

$4.10

27

Socket Head Screw M6 X 100 This part replaces 420241601.

420241602

Unavailable

28

VALVE COVER - Call your local BRP dealership

420211662

$76.89

29

Distance Screw

420241625

$14.37

30

Valve Cover Gasket

420650345

$14.37

31

HOSE NIPPLE - Call your local BRP dealership

420924722

$16.12

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

M

Molykote G-N, 50 g

420297433

$22.72

O

Not Available As Spare Part - Friction Washer

Unavailable

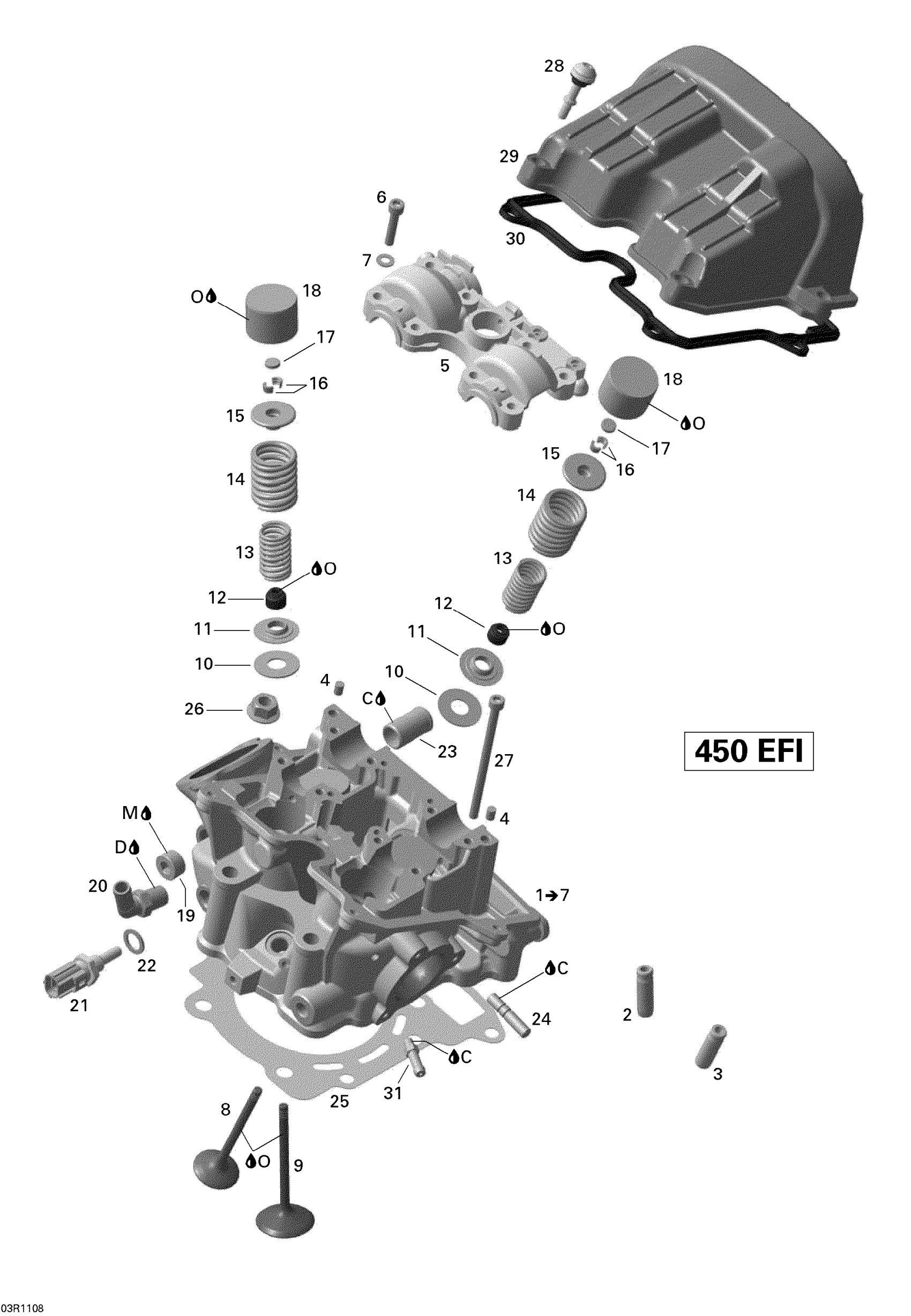

Can-Am DS 450 Xxc, Xmx EFI, 2011 Cylinder Head Diagram
