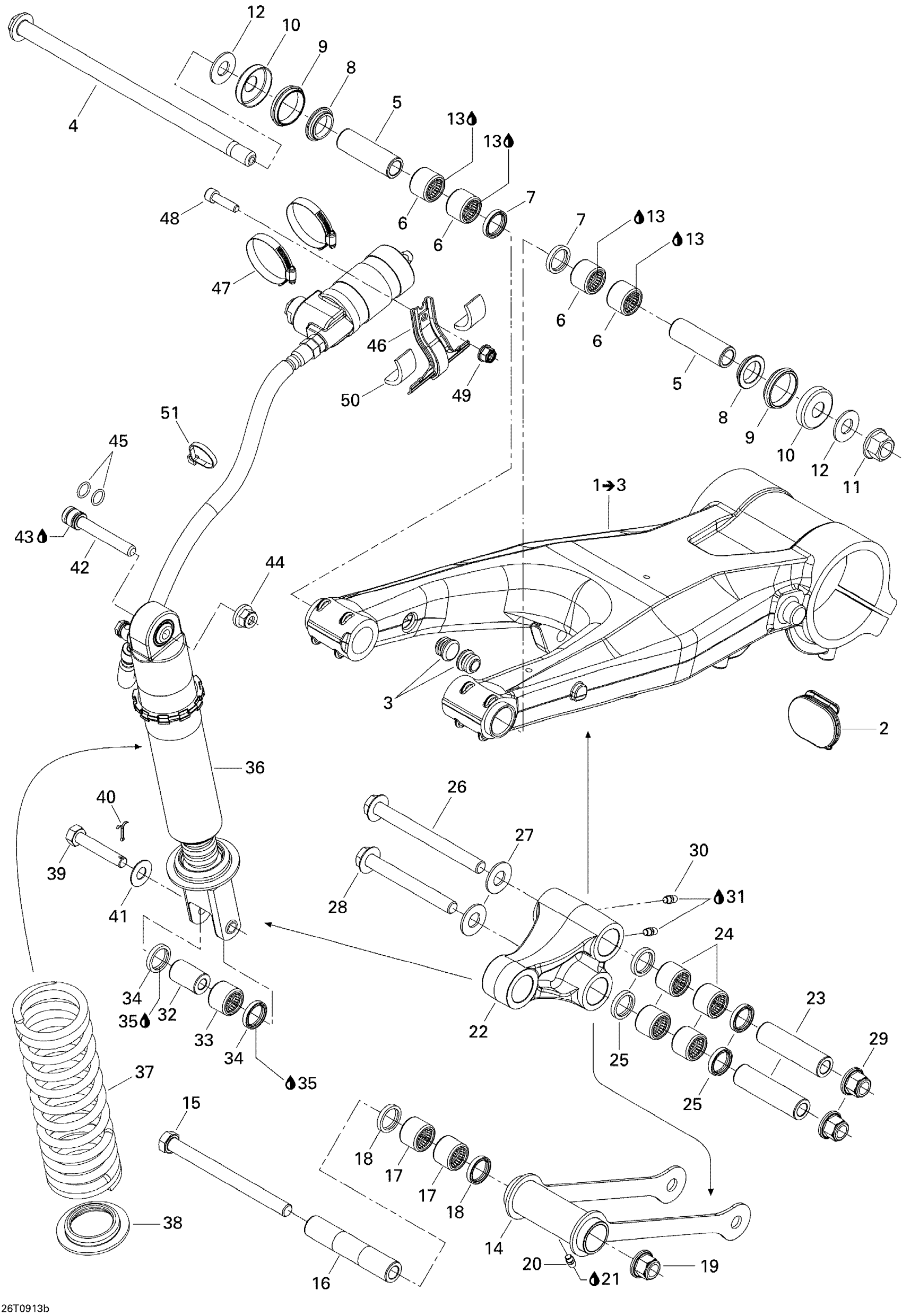

Can-Am DS 450 Xxc, Xmx EFI, 2009 Rear Suspension Xmx Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000849

Unavailable

2

SWING ARM CAP - Call your local BRP dealership

706000459

Unavailable

3

Cap

517302716

$3.73

4

HEX. SCREW M14 X 287 - Call your local BRP dealership

250000358

Unavailable

5

BUSHING - Call your local BRP dealership

706000732

Unavailable

6

Bearing

706000447

$11.83

7

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

8

SPACER - Call your local BRP dealership

706000701

Unavailable

9

SEAL - Call your local BRP dealership

706000750

Unavailable

10

SEAL CAP - Call your local BRP dealership

706000738

Unavailable

11

Elastic Stop Nut

232571436

$2.06

12

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

LEVER - Call your local BRP dealership

706000445

Unavailable

15

Hexagonal Screw M12 x 145

230024586

Unavailable

16

BUSHING - Call your local BRP dealership

706000730

Unavailable

17

Bearing

706000447

$11.83

18

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

19

Flange Elastic Nut

233221434

$4.28

20

Grease Fitting

250000315

$4.82

21

Synthetic Grease, 400 G

293550010

Unavailable

22

SECONDARY LEVER - Call your local BRP dealership

706200465

Unavailable

23

Bushing

706000731

$14.75

24

Bearing

706000447

$11.83

25

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

26

SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership

230223086

Unavailable

27

Hardened Washer

706200281

$2.34

28

Hexagonal Screw M12 X 105

230020586

$7.28

29

Flange Elastic Nut

233221434

$4.28

30

Grease Fitting

250000315

$4.82

31

Synthetic Grease, 400 G

293550010

Unavailable

32

BUSHING - Call your local BRP dealership

706000733

Unavailable

33

Bearing

706000447

$11.83

34

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

35

Synthetic Grease, 400 G

293550010

Unavailable

36a

REAR SHOCK - Call your local BRP dealership | Includes 36a to 36f

706000611

Unavailable

36b

Spring Stopper

706000567

$15.35

36c

SHOCK OIL, 1 LITER - Call your local BRP dealership

293600136

Unavailable

36d

Rear Piston And Rod Kit | Includes 36d to 36f

715500331

Unavailable

36e

Circlip En C

715900075

$4.86

36f

Circlip - Call your local BRP dealership

715900076

$4.03

38

Spring Stopper

706000567

$15.35

39

BOLT M10 - Call your local BRP dealership

250000254

Unavailable

40

Cotter Pin

250400034

$2.06

41

Flat Washer

250200080

$2.06

42

SCREW - Call your local BRP dealership

706000541

Unavailable

43

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

44

Hex. Flange Elastic Nut M10

233201436

$1.74

45

O-RING - Call your local BRP dealership

504151954

Unavailable

46

SUPPORT - Call your local BRP dealership

706001423

Unavailable

47

Tridon Clamp

293650036

$5.86

48

Socket Head Screw M8 X 30

205083044

$0.92

49

Hex. Flange Elastic Nut M8

233281434

$1.74

50

Gasket

705002447

$3.63

51

Tie-Rap 180 mm

414115200

$0.09
