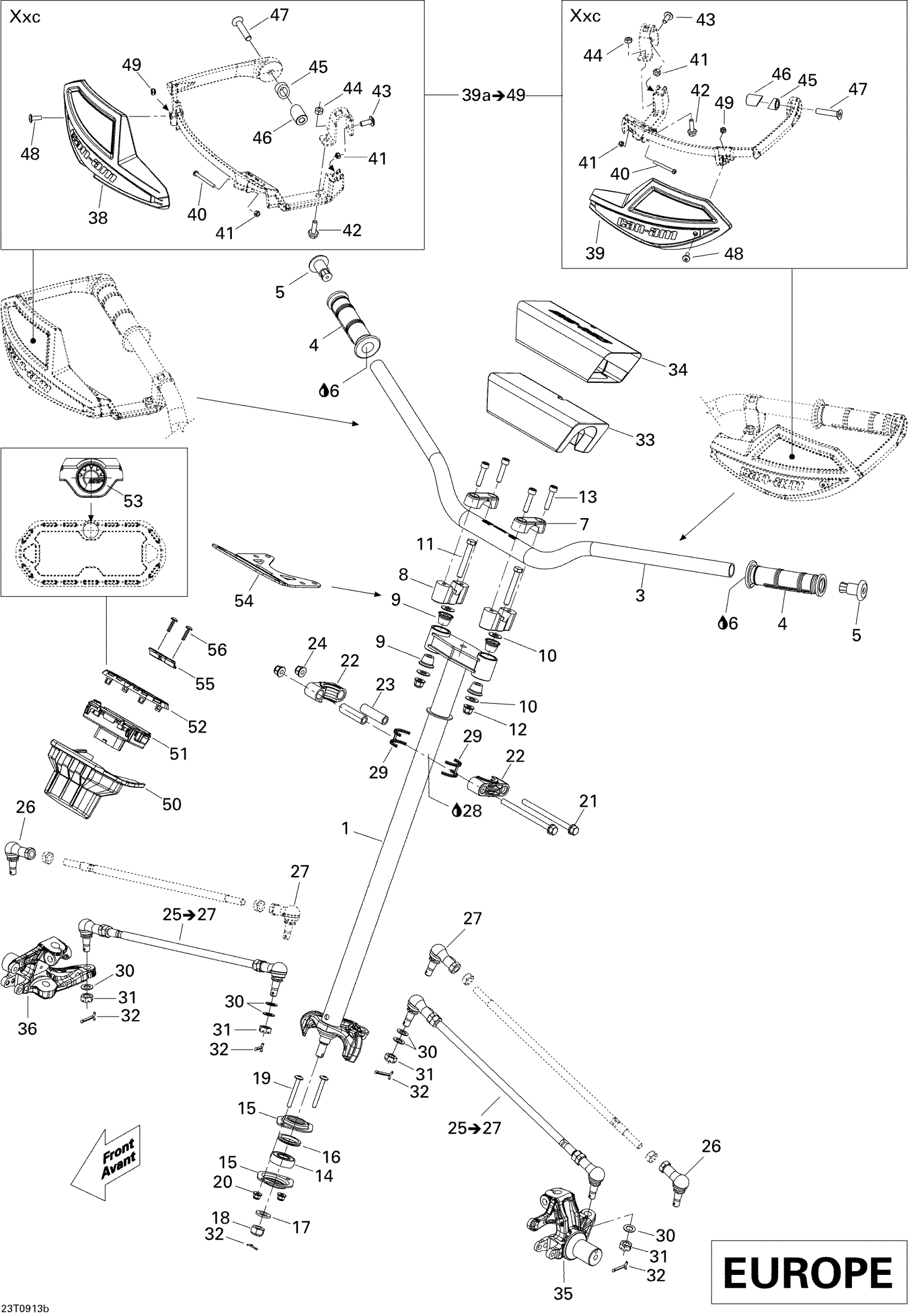

Can-Am DS 450 Xxc, Xmx EFI, 2009 Steering Europe Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

1

STEERING COLUMN - Call your local BRP dealership | Xmx

709400805

$245.35

3

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

$57.66

4

Handle Grip

709400493

$14.75

5

END PIECE - Call your local BRP dealership

709400627

$6.49

6

Loctite 406, 7 Oz

293800100

$36.99

7

Support

709400496

$27.66

8

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

$17.66

9

DAMPER BUSHING - Call your local BRP dealership

293830131

$6.18

10

Washer

506152194

$4.42

11

Screw Hex. M10 X 70

250001024

$1.74

12

Elastic Flange Nut M10

232501416

$1.25

13

Socket Head Screw

205083534

$2.06

14

Ball Bearing

709400439

$18.43

15

THRUST WASHER - Call your local BRP dealership

709400468

$10.52

16

Seal

293250177

$7.37

17

Flat Washer

234021430

$2.06

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

$1.83

19

Torx Screw M6 X 50

250000317

$2.06

20

Flange Elastic Nut M6

233261434

$3.61

21

Hex. Flange Screw M8 X 110

230681034

$4.28

22

Half Bushing

709400471

$13.63

23

BUSHING - Call your local BRP dealership

709400072

Unavailable

24

Hex. Flange Elastic Nut M8

233281434

$1.74

25

ROD_TIE ASSY - Call your local BRP dealership

709400352

$130.74

25

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900053

$41.51

27

BALL JOINT - Call your local BRP dealership

715900052

$41.51

28

Synthetic Grease, 400 G

293550010

Unavailable

29

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

30

Flat Washer

250200084

$2.76

31

CASTLE NUT - Call your local BRP dealership

250100094

$3.54

32

Cotter Pin

250400034

$2.06

33

Foam

709400422

$16.12

34

Cover

709400423

$32.28

35

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

36

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

38

RH DEFLECTOR - Call your local BRP dealership | Xxc

709400616

$30.74

39

LH DEFLECTOR - Call your local BRP dealership | Xxc

709400617

$30.74

39a

Air Deflector Support Kit | X

715001378

$143.54

40

Socket Head Screw M4 X 40 | X

205444086

$1.42

41

Elastic Stop Nut M4

232541414

$0.48

42

Hex. Flange Screw M6 X 20

207662044

$1.66

43

Torx Screw M6 X 16

250000223

$1.74

44

Hex. Elastic Stop Nut M6

232561600

$0.92

45

Small Bracket | DS 650 X

709400161

$20.74

46

Large Bracket | DS 650 X

709400162

$16.89

47

Socket Head Screw | X

205384034

$5.19

48

Torx Screw M5 X 14

250000742

$1.20

49

Hex. Elastic Nut M5 | X

232551600

$0.91

50

Speedometer Cover

709400514

$15.35

51

Calibrated Speedometer | Includes 16 to 17

710003288

$332.28

52

Trim Ring Ass'y

710001183

$18.43

53

BRP Logo13 mm

704904615

$9.66

54

INDICATOR SUPPORT - Call your local BRP dealership

709400671

$36.89

55

Latch Indicator Cover

709400573

$10.98

56

Truss Head Torx Screw K50 X 20

250000297

$2.06
