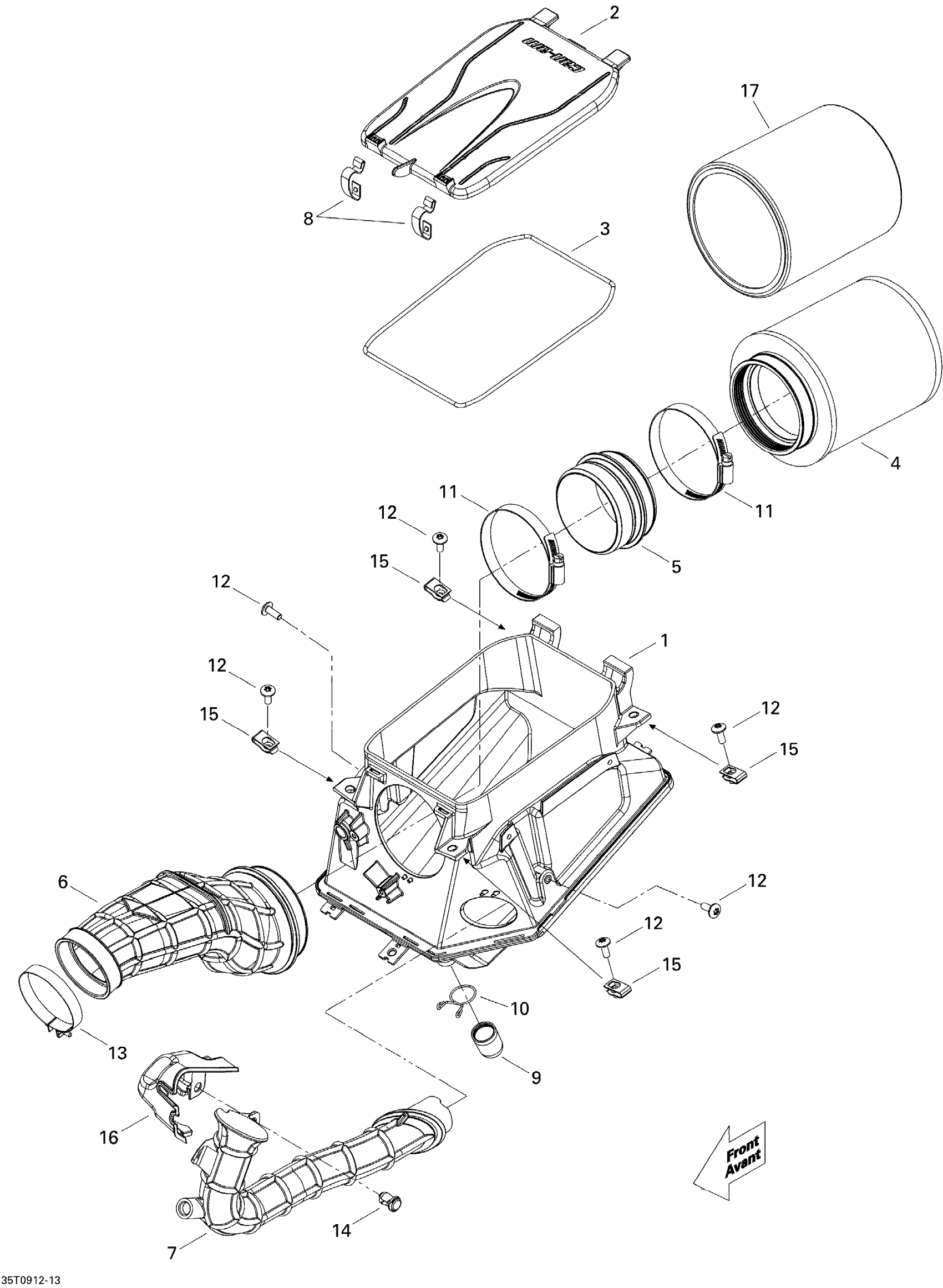

Can-Am DS 450 Xxc, Xmx EFI, 2009 Air Intake Silencer Diagram

#

Description
Price

1

AIR SILENCER - Call your local BRP dealership

707800242

Unavailable

2

Air Box Cover

707800215

$36.89

3

GASKET - Call your local BRP dealership

707800240

$10.74

4

Air Filter

707800216

$31.51

5

ADAPTOR - Call your local BRP dealership

707800257

Unavailable

6

INTAKE ADAPTOR - Call your local BRP dealership

707800218

Unavailable

7

FRONT AIR INTAKE - Call your local BRP dealership

707800258

Unavailable

8

Cover Bracket

707800249

$8.45

9

Drain Tube

707800080

$7.37

10

Retainer Clip

707800278

$12.91

11

Tridon Clamp

204000079

$8.71

12

Torx Screw M6 X 16

250000223

$1.74

13

GEMI CLAMP - Call your local BRP dealership

293650159

Unavailable

14

Tuflok Plastic Rivet

293150230

$1.21

15

Panel Nut M6 X 1.0

250100198

$1.73

16

DEFLECTOR - Call your local BRP dealership

707800285

Unavailable

17

INTAKE PRE-FILTER - Call your local BRP dealership

707800293

Unavailable
