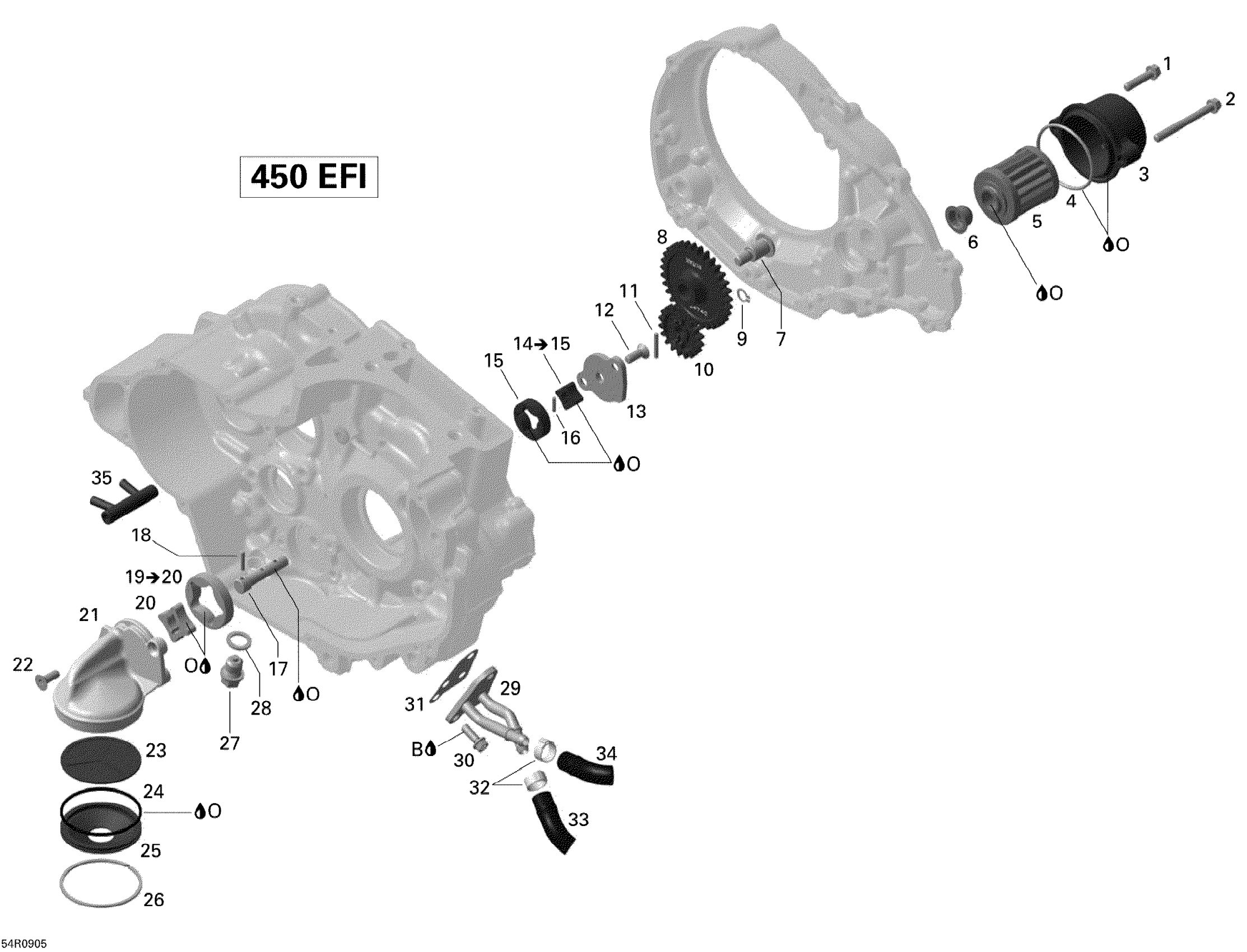

Can-Am DS 450 Xxc, Xmx EFI, 2009 Engine Lubrication Diagram

#

Description
Price

1

Torx Flange Screw M6 X 25

420641238

$2.68

2

Torx Flange Screw M6 X 55

420440702

$2.54

3

OIL FILTER COVER - Call your local BRP dealership

420211509

$32.99

4

O-Ring

420430920

$2.22

5

Oil Filter

420256455

$11.14

6

SLEEVE - Call your local BRP dealership

420647100

Unavailable

7

BEARING BOLT M8 - Call your local BRP dealership

420241150

$19.20

8

Idle Gear, 31 Teeth

420434740

$17.66

9

Retaining Ring

420245570

$6.45

10

Oil Pump Gear, 18 Teeth

420434730

$12.91

11

Needle Pin

420932840

$3.09

12

Countersunk Screw M6 X 16

420440906

$3.11

13

Oil Pump Cover

420611791

$27.66

14

Inner And Outer Rotor Ass'y | Includes 14 to 15

420256477

$41.51

15

Not Available As Spare Part - Friction Washer

Unavailable

16

NEEDLE PIN - Call your local BRP dealership

420832560

Unavailable

17

OIL PUMP SHAFT - Call your local BRP dealership

420620810

$27.66

18

NEEDLE PIN - Call your local BRP dealership

420232980

Unavailable

19

Inner And Outer Rotor Ass'y | Includes 19 to 20

420256117

$67.66

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Oil Sieve Cover

420610740

$59.97

22

Screw M6 X 20

420941436

$2.37

23

OIL SIEVE - Call your local BRP dealership

420256570

$13.78

24

O-Ring

420650697

$10.14

25

Oil Collector

420256650

$50.74

26

SNAP RING - Call your local BRP dealership

420845590

$6.45

27

Magnetic Drain Plug M12

420241787

$16.89

28

Copper Washer

420250640

$0.81

29

Connection Cover

420656460

$55.35

30

Torx Flange Screw M6 X 20

420440207

$2.54

31

Gasket

420431120

$10.98

32

Clamp

420851458

$7.23

33

Oil Hose

420460791

$17.66

34

OIL HOSE - Call your local BRP dealership

420460792

$13.05

35

OIL TUBE - Call your local BRP dealership

420656300

$9.35

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable
