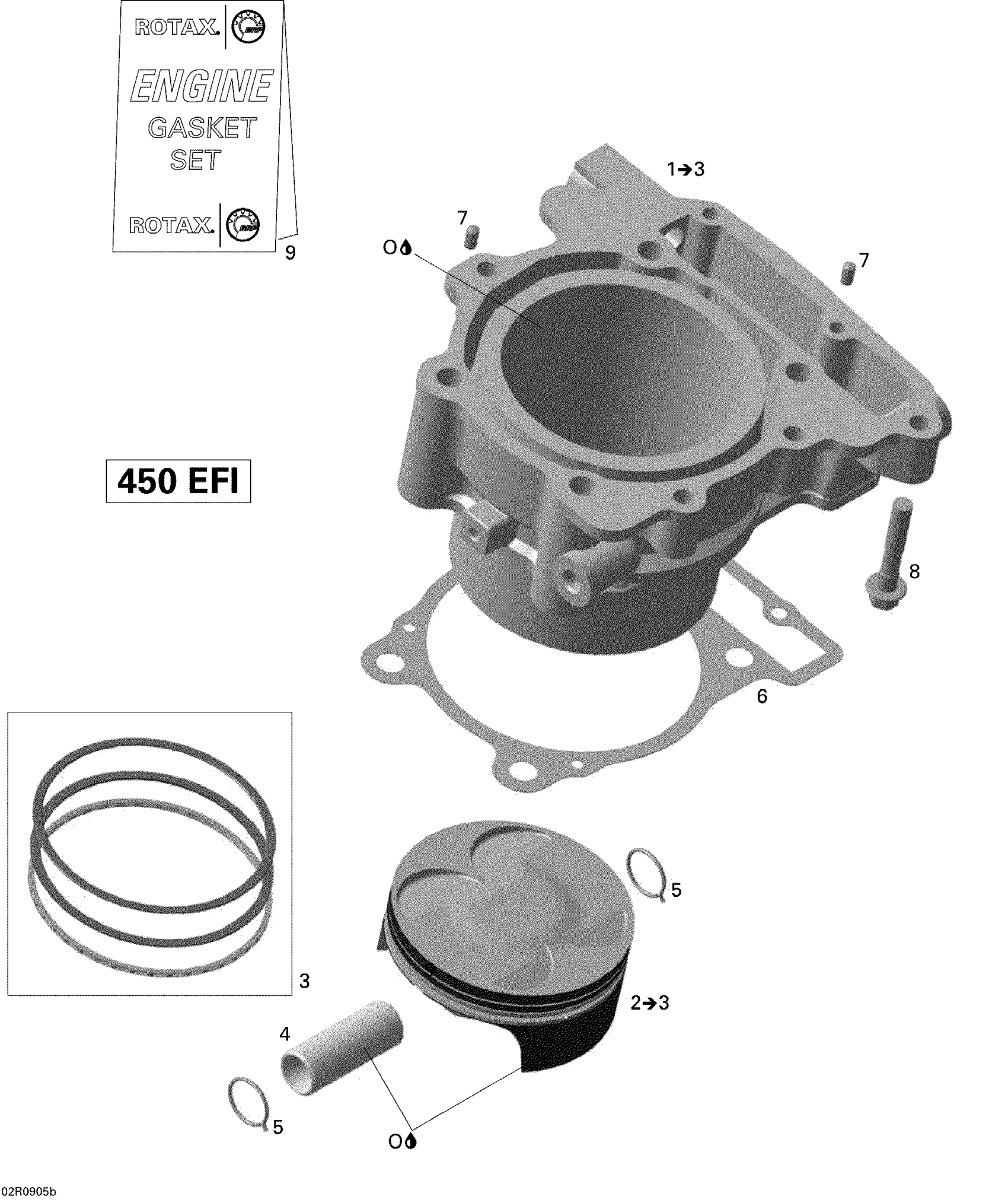

Can-Am DS 450 Xxc, Xmx EFI, 2009 Cylinder And Piston Diagram

#

Description

Price

1

Cylinder And Piston Ass'y | Includes 1 to 3

420623826

$759.97

2

Piston Ass'y, 96.95 mm | Includes 2 to 3

420685132

$249.97

2

PISTON ASS'Y, 96.96 MM - Call your local BRP dealership | Includes 2 to 3

420685133

$182.28

3

Piston Ring Set

420685134

$69.97

4

Piston Pin

420216276

$34.58

5

Piston Circlip

420845107

$4.33

6

Cylinder Gasket

420650390

$15.22

7

Drive Pin 5 X 10

420929650

$1.34

8

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940637

$6.31

9

Gasket Set, Engine

420685380

$249.20

O

Not Available As Spare Part - Friction Washer

Unavailable
