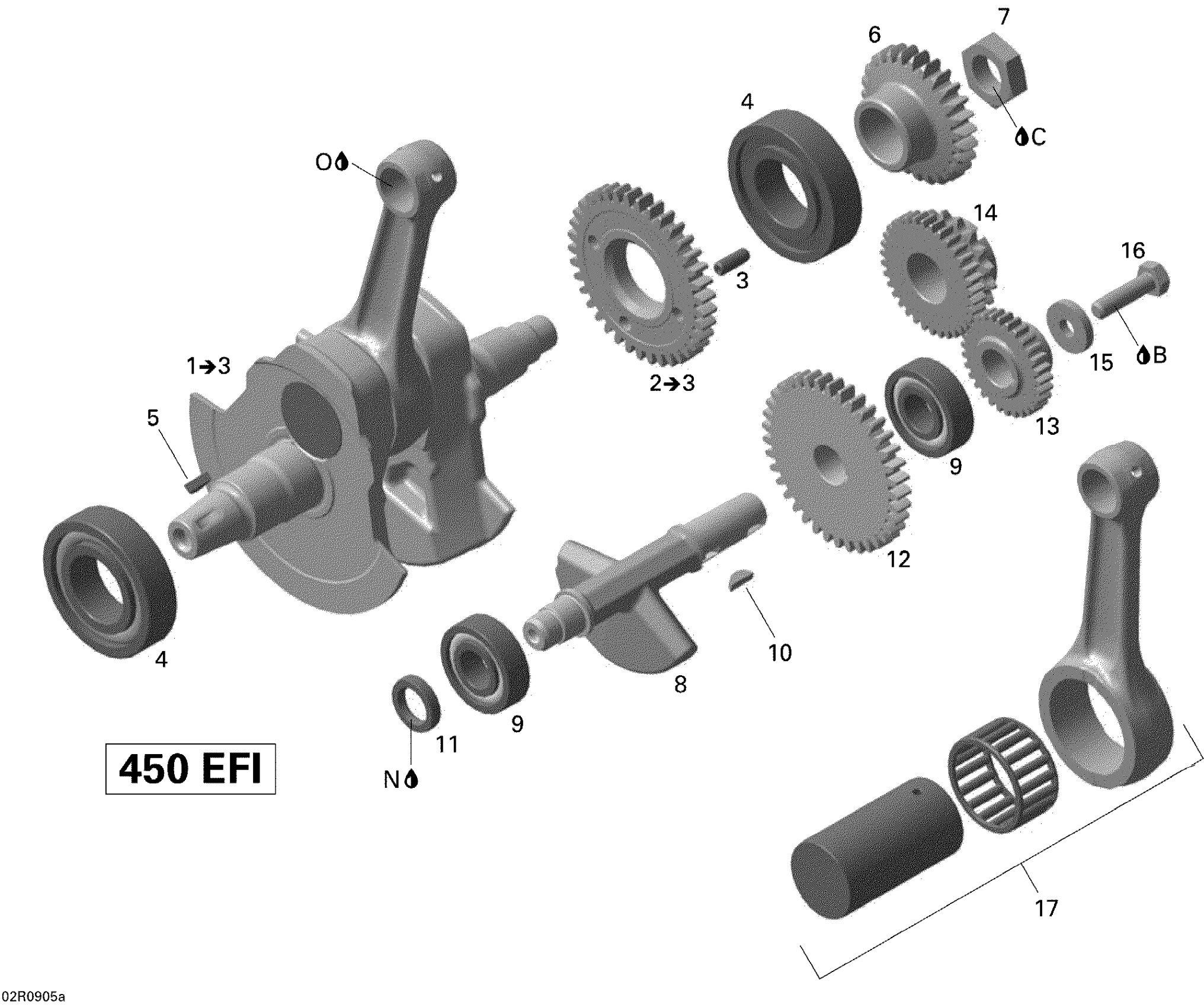

Can-Am DS 450 Xxc, Xmx EFI, 2009 Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass. | Includes 1 to 3

420685093

$719.97

1

Crankshaft Ass. | Includes 1 to 3

420685093

$719.97

2

Balance Gear, 37 Teeth | Includes 2 to 3

420434697

$175.35

2

Balance Gear, 37 Teeth | Includes 2 to 3

420434697

$175.35

3

DOWEL PIN 6 X 16 - Call your local BRP dealership

420229490

Unavailable

3

DOWEL PIN 6 X 16 - Call your local BRP dealership

420229490

Unavailable

4

Balll Bearing

420832526

$80.74

4

Balll Bearing

420832526

$80.74

5

Woodruff Key 4 X 5

420246570

$3.29

5

Woodruff Key 4 X 5

420246570

$3.29

6

DRIVE GEAR, 27 TEETH - Call your local BRP dealership

420434680

Unavailable

6

DRIVE GEAR, 27 TEETH - Call your local BRP dealership

420434680

Unavailable

7

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

7

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

8

BALANCE SHAFT - Call your local BRP dealership

420620800

Unavailable

8

BALANCE SHAFT - Call your local BRP dealership

420620800

Unavailable

9

Balll Bearing

420232855

$24.02

9

Balll Bearing

420232855

$24.02

10

Woodruff Key 4 X 5

420246570

$3.29

10

Woodruff Key 4 X 5

420246570

$3.29

11

Oil Seal

420250130

$17.66

11

Oil Seal

420250130

$17.66

12

Balance Gear, 37 Teeth

420434690

$147.66

12

Balance Gear, 37 Teeth

420434690

$147.66

13

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

Unavailable

13

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

Unavailable

14

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

Unavailable

14

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

Unavailable

15

WASHER 23 MM - Call your local BRP dealership

420626460

Unavailable

15

WASHER 23 MM - Call your local BRP dealership

420626460

Unavailable

16

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

16

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

C

Sealant Loctite 648

219703000

$35.72

N

Grease, Super Lube

293550030

$24.67

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable
