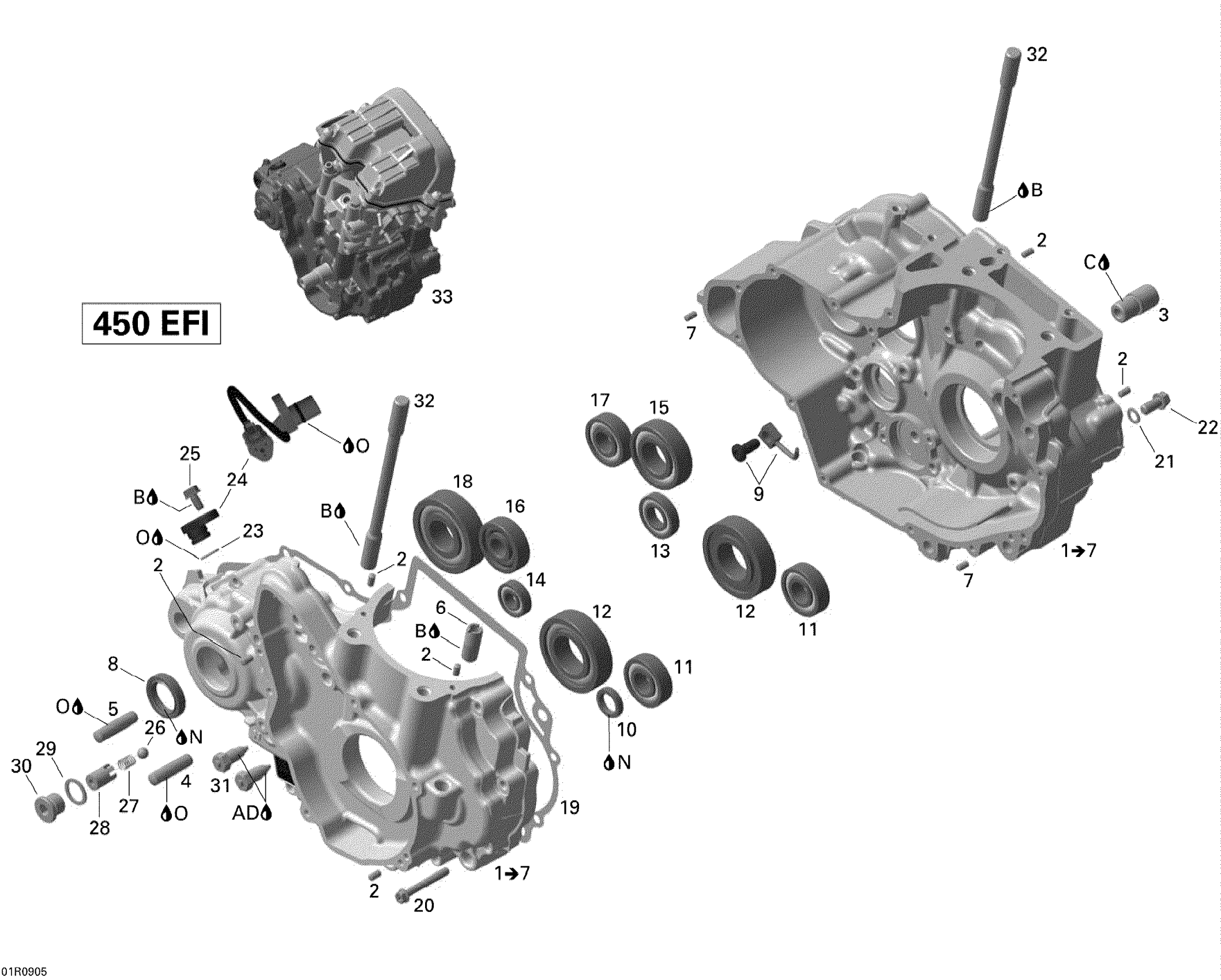

Can-Am DS 450 Xxc, Xmx EFI, 2009 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 7

420685894

$722.28

2

Drive Pin 5 X 10

420929650

$1.34

3

BEARING PIN - Call your local BRP dealership

420229135

$23.05

4

Location Pin 10 M6x50

420229302

$3.11

5

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

$5.74

6

Hose Nipple

420256332

$16.89

7

DOWEL PIN - Call your local BRP dealership

420832731

$1.83

8

OIL SEAL - Call your local BRP dealership

420830602

Unavailable

9

Oil Spray Nozzle Ass'y

420856986

$41.51

10

Oil Seal

420250130

$17.66

11

Balll Bearing

420232855

$24.02

12

Balll Bearing

420832526

$81.51

13

BALL BEARING - Call your local BRP dealership

420232590

$18.43

14

Balll Bearing

420232400

$23.05

15

BALL BEARING - Call your local BRP dealership

420232765

$18.43

16

Ball Bearing 6302

420232291

$28.43

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Ball Bearing

420932822

$29.20

19

Gasket

420431010

$23.05

20

Torx Flange Screw M6 X 45

420641198

$3.38

21

Sealing Ring

420950141

$1.64

22

Torx Flange Screw M8 X 16

420440852

$4.00

23

O-Ring

420230451

$10.98

24

COVER - Call your local BRP dealership

420627805

$10.62

24

Camshft Position Sensor Ass'y

420265727

$108.89

25

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

$1.69

26

Ball 8.5 mm

420432680

$5.52

27

COMPRESSION SPRING - Call your local BRP dealership

420238030

Unavailable

28

PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership

420256483

Unavailable

29

O-Ring

420430622

$3.61

30

Plug Screw M16 X 1.5

420240234

$13.58

31

Position Switch

420241856

$35.35

32

Stud

420241580

$16.89

33

LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership

420044904

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

AD

Not Available As Spare Part - Friction Washer

Unavailable
