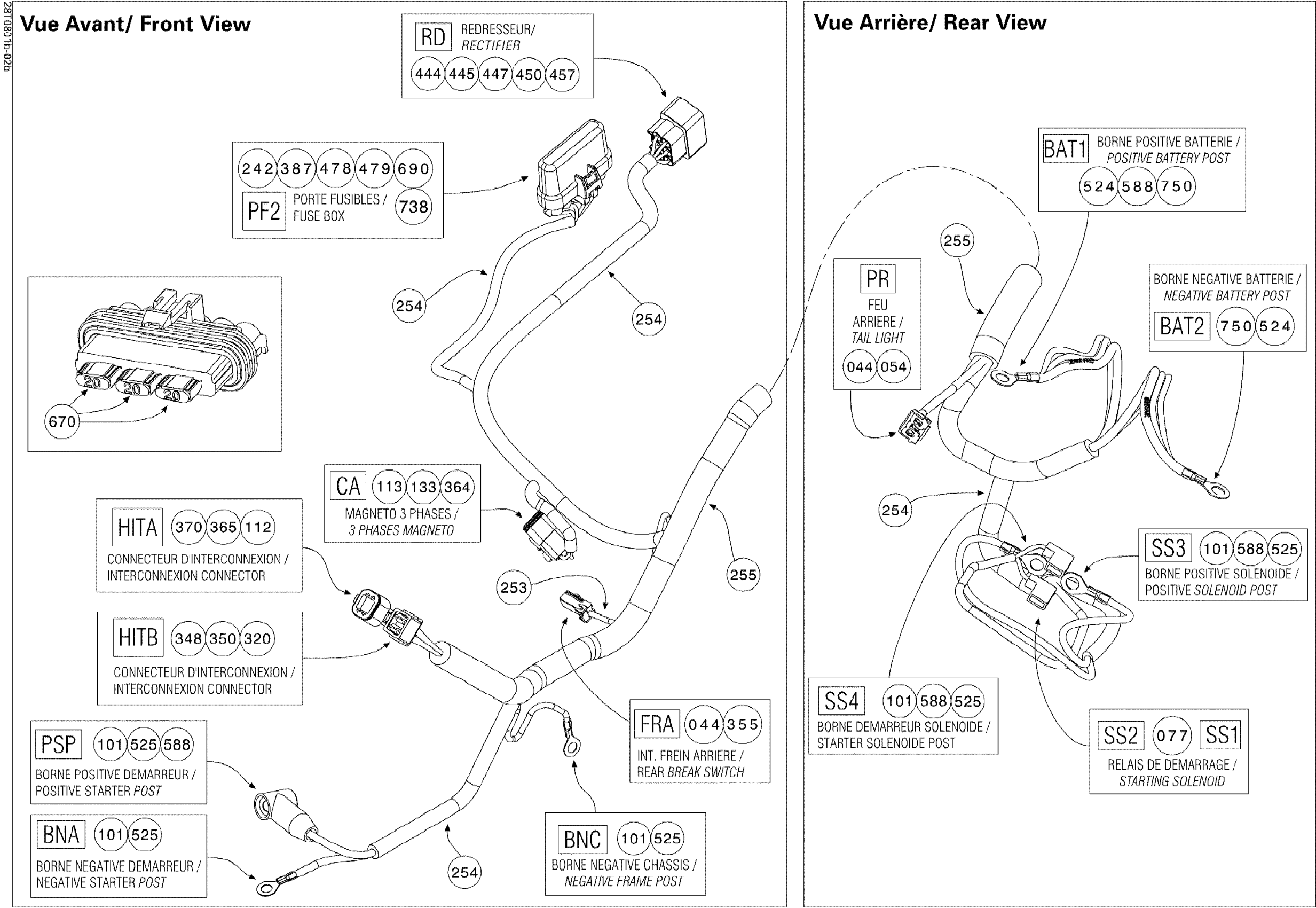

Can-Am DS 450 X, 2008 Main Harness Rear Diagram

#

Description
Price

1

TAIL HARNESS - Call your local BRP dealership | Includes 1 to 750

710001101

Unavailable

44

Female Terminal

515175231

$4.12

54

Female Housing, 3 Circuits

515175495

$15.35

77

Female Terminal

409010300

$4.12

101

Open Barrel Terminal

278001392

$4.12

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

133

Female Lock

409207200

$3.48

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

320

Female Terminal

515175567

$6.03

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

355

Female Housing, 2 Circuits

515175658

$15.35

364

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

$10.60

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

$12.42

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

$5.74

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

444

MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000336

$14.65

445

JOINT SEAL - Call your local BRP dealership

710000337

$7.32

447

SECONDARY LOCK - Call your local BRP dealership

710000339

$14.65

450

CAP - Call your local BRP dealership

710000343

$6.49

457

FEMALE TERMINAL - Call your local BRP dealership

710000356

$8.94

478

Housing, 6 Circuits

710000888

$16.89

479

Lock

710000889

$4.60

524

Heat Shrink Tubing 25 mm

512059668

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

588

Protector Cap

710000526

$10.14

670

Little Fuse, 20 Amperes

710000746

$6.77

690

Female Terminal

710000890

$3.73

738

Cover

710000897

$12.62

750

Terminal

710000913

$5.46
