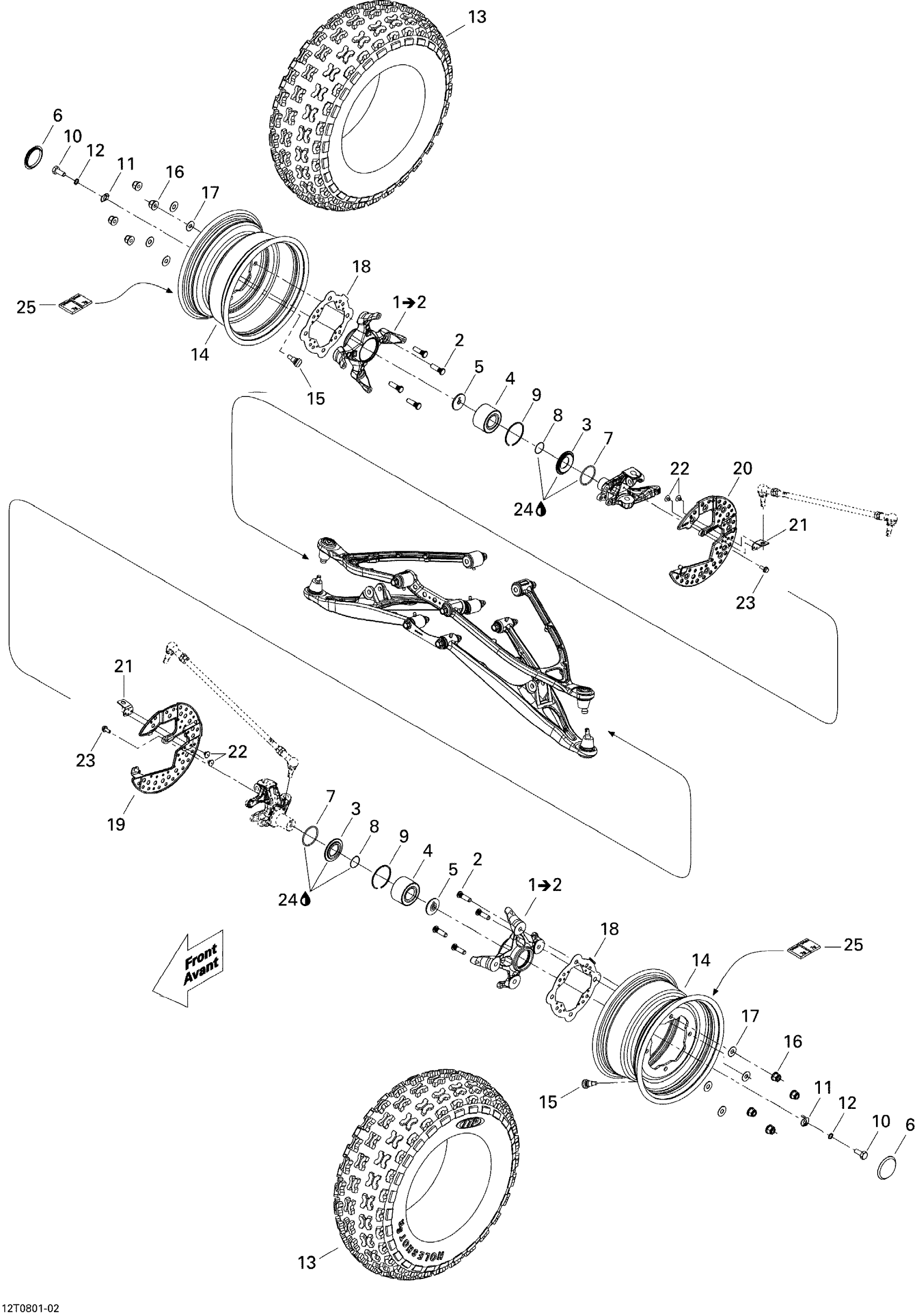

Can-Am DS 450 X, 2008 Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 1 to 2

705400368

$104.99

2

Wheel Stud

250000138

Unavailable

3

SUPPORT RING - Call your local BRP dealership

705400371

Unavailable

4

Ball Bearing

293350150

$52.99

5

WASHER - Call your local BRP dealership

705400722

Unavailable

6

CAP - Call your local BRP dealership

705400792

Unavailable

7

O-RING - Call your local BRP dealership

293300113

Unavailable

8

O-Ring

293300114

$12.97

9

Circlip

293370019

$4.98

10

HEX. SCREW M10 X 25 - Call your local BRP dealership

207102534

$1.69

11

LOCK WASHER - Call your local BRP dealership

705400767

$6.49

12

Copper Washer

705601628

$4.34

13

TIRE_21X7R10 F - Call your local BRP dealership

705400432

Unavailable

14

FRONT RIM - Call your local BRP dealership

705400428

$104.58

15

Rim Valve With Cap

705400193

$6.69

16

Flange Nut M10

250100105

$5.49

17

Flat Washer

250200080

$2.06

18

EXTERIOR DISK - Call your local BRP dealership

705400572

$6.49

19

LH INTERIOR DISK - Call your local BRP dealership

705400573

$15.35

20

RH INTERIOR DISK - Call your local BRP dealership

705400576

$15.35

21

DISK SUPPORT - Call your local BRP dealership

705400603

Unavailable

22

Pop Rivet 3/16"

293150103

$0.54

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

24

Graisse *Grease

293550062

$15.35

25

Self Adhesive Weight, 5G 20mm

705502106

$4.35
