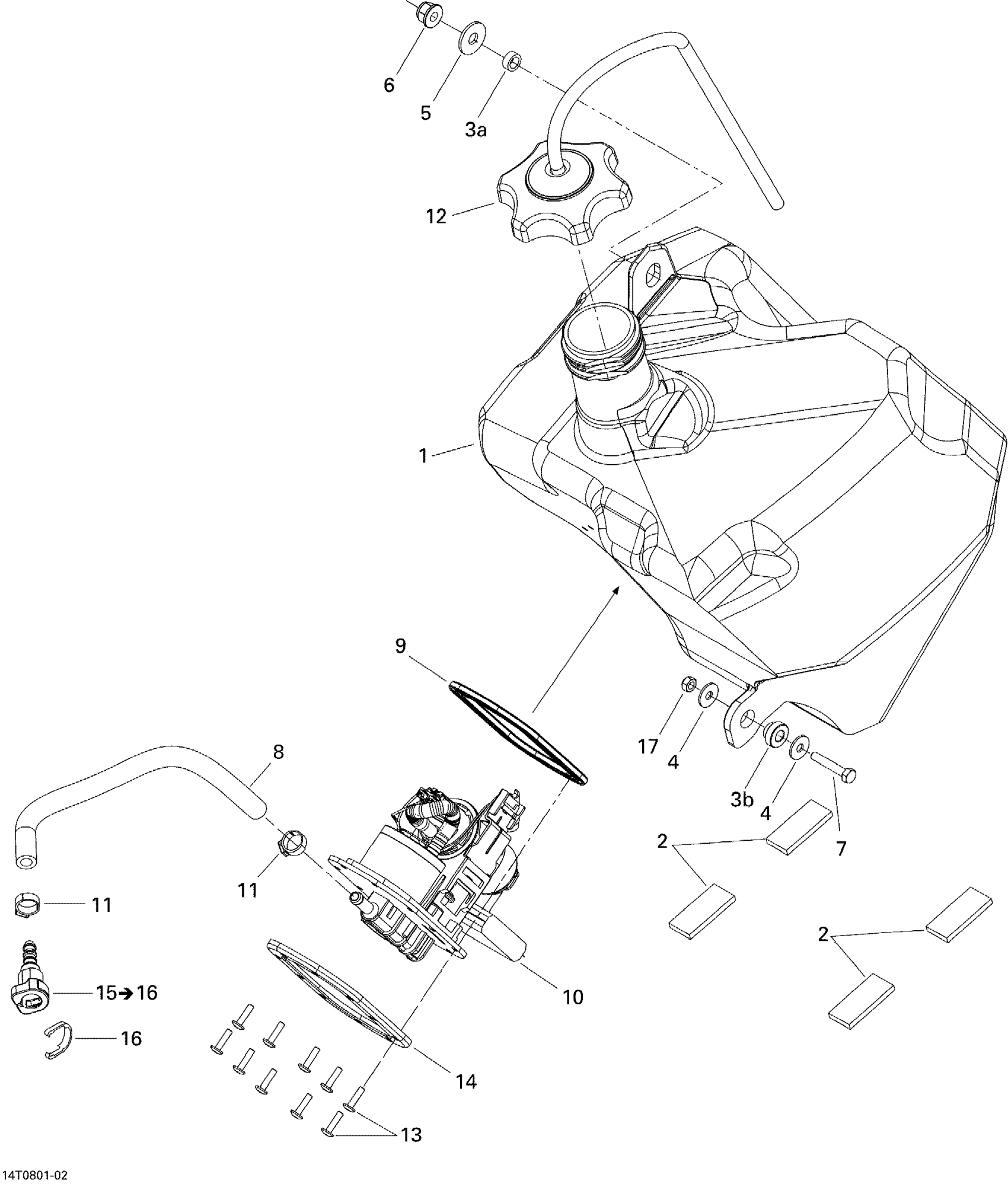

Can-Am DS 450 X, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000180

Unavailable

2

Rubber Pad

709000401

$9.98

3a

BUSHING - Call your local BRP dealership

293900067

Unavailable

3b

BUSHING - Call your local BRP dealership

293900088

Unavailable

4

Flat Washer

250200082

$0.35

5

Flat Washer M8

234082430

$2.06

6

Hex. Flange Elastic Nut M8

233281434

$1.74

7

Hex. Flange Screw M6 X 35

207063544

$1.35

8

Was 709000163 Fuel Line

219704440

$27.66

9

Joint Etanche *Gasket

709000540

$36.89

10

Fuel Pump

709000386

Unavailable

11

Crimp Clamp, 15.3-706R

293650047

$2.64

12

FUEL CAP - Call your local BRP dealership

709000117

Unavailable

13

Torx Screw M4 X 16

250000750

$1.37

14

Pump Ring

709000170

$15.35

15

Female Quick Fitting Ass'y

709000125

$11.12

16

Locking Clip

513033135

$5.11

17

Flange Elastic Nut M6

233261434

$3.61
