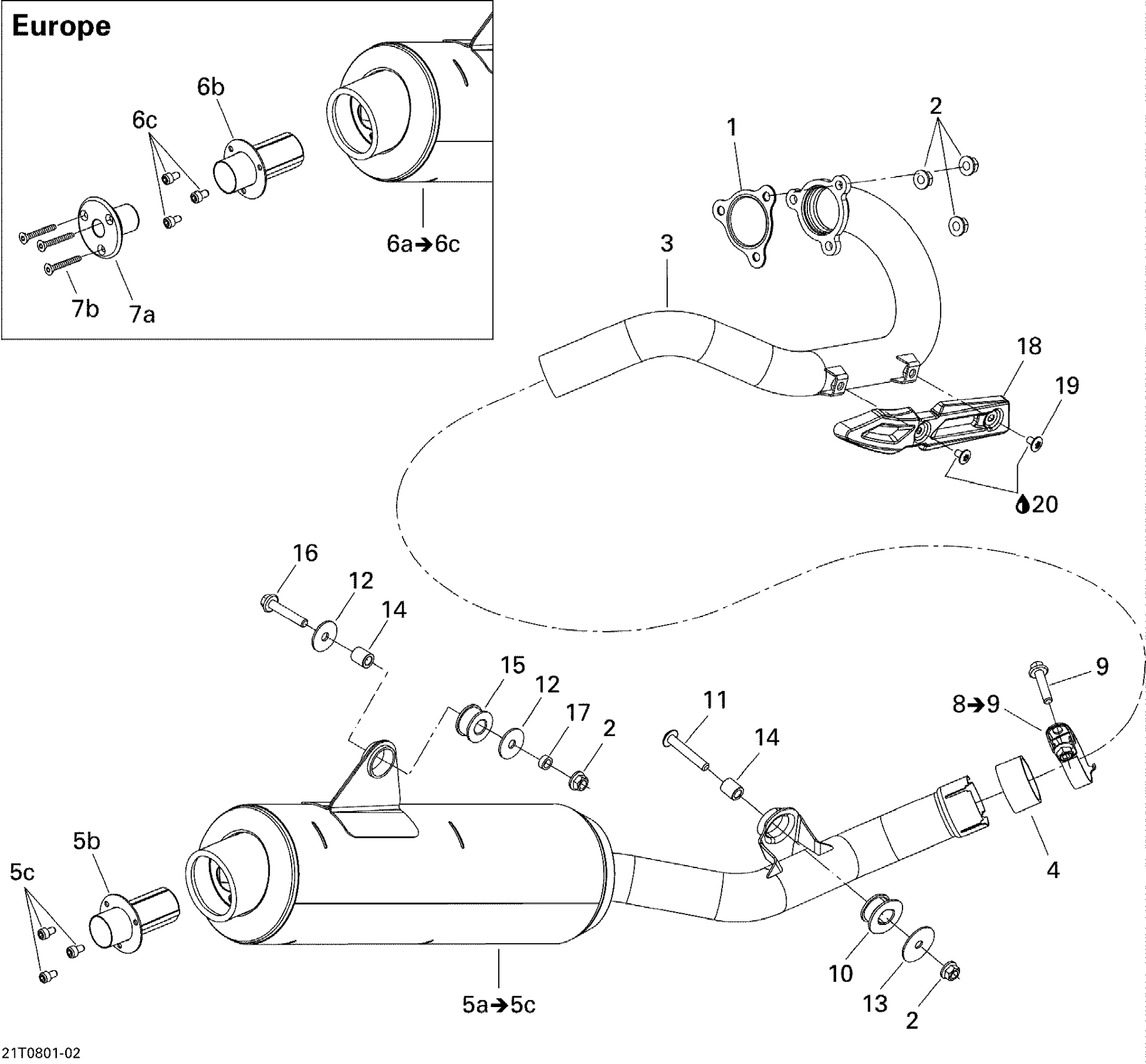

Can-Am DS 450 X, 2008 Exhaust System Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

707600445

Unavailable

2

Hex. Flange Nut

233081436

$1.63

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600401

$240.74

4

PIPE GASKET - Call your local BRP dealership

514054289

Unavailable

5a

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 5a to 5c

707600333

$400.74

5b

SPARK SHIELD END PIECE - Call your local BRP dealership

707600468

$93.82

5c

Socket Head Screw M5 X 10

205051060

$1.54

6a

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 6a to 6c, Europe

707600536

Unavailable

6b

SPARK SHIELD END PIECE - Call your local BRP dealership

707600468

$93.82

6c

Socket Head Screw M5 X 10

205051060

$1.54

7a

RESTRICTOR - Call your local BRP dealership | Europe

707600630

$33.05

7b

SCREW M5 X 40 - Call your local BRP dealership | Europe

205354060

Unavailable

8

COLLAR - Call your local BRP dealership | Includes 8 to 9

707600705

Unavailable

9

Hex. Flange Screw M8 X 35

207683534

$1.74

10

Rubber

707600448

$7.60

11

Torx Truss Screw M8 X 50

250000761

$6.18

12

FLAT WASHER - Call your local BRP dealership

250200073

$1.69

13

WASHER - Call your local BRP dealership

707600525

$6.31

14

Bushing

293900106

$4.42

15

Vibration Damper

707603323

$11.98

16

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

17

BUSHING - Call your local BRP dealership

293900067

$7.38

18

HEAT SHIELD - Call your local BRP dealership

707600432

$31.51

19

Torx-truss M/s M6 X 10

250000995

$3.61

20

Loctite 271, 10 ml

293800005

$20.77
