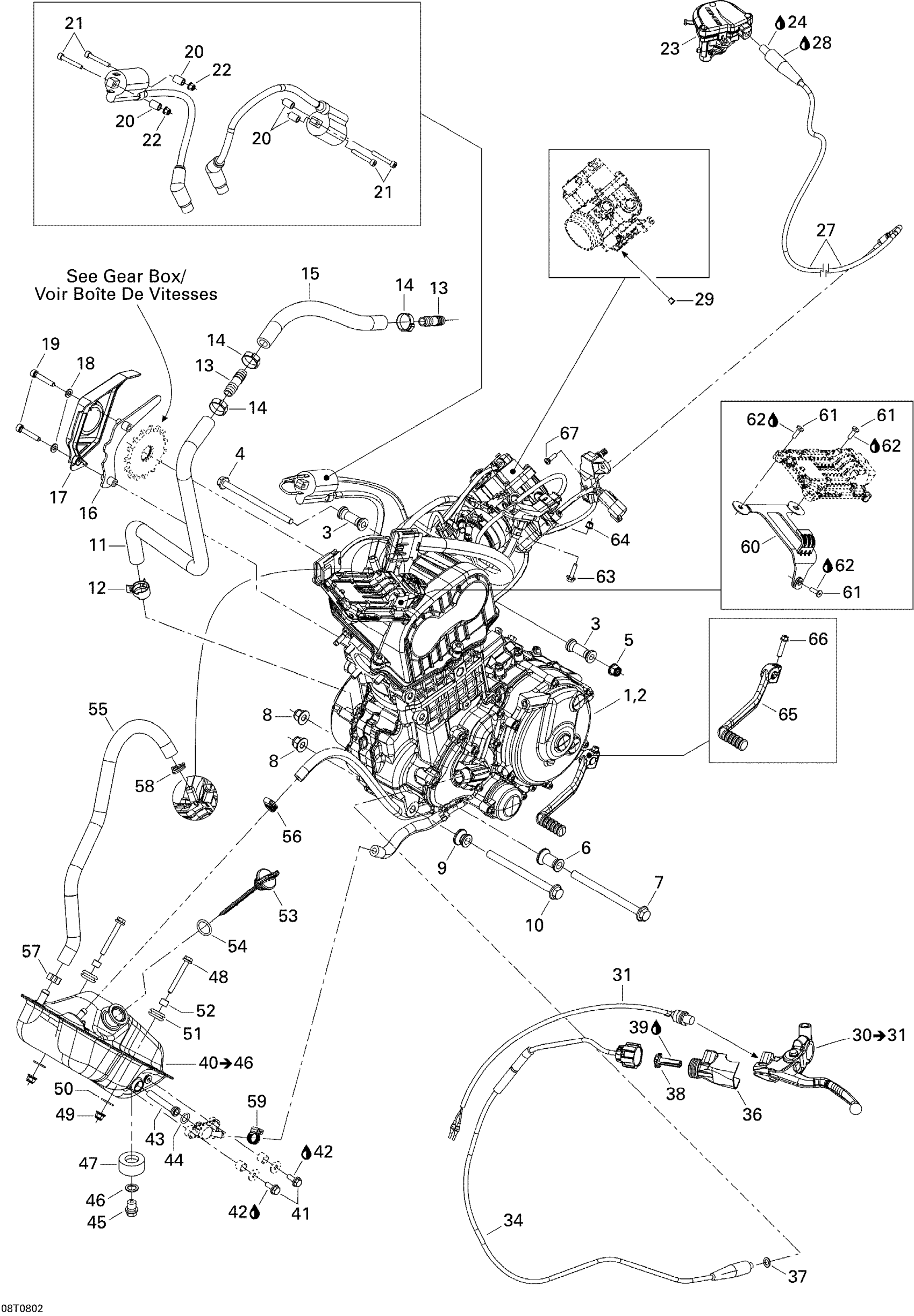

Can-Am DS 450 X, 2008 Engine Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LONG BLOCK, 449 ENGINE - Call your local BRP dealership

420044901

Unavailable

3

SPACER - Call your local BRP dealership

293900071

$9.74

4

Hex. Flange Screw M8 X 130

230683034

$6.15

5

Hex. Flange Elastic Nut M8

233281434

$1.74

6

SPACER - Call your local BRP dealership

293900072

$13.83

7

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

8

Hex. Flange Elastic Nut M10

233201434

$1.63

9

SPACER - Call your local BRP dealership

293900074

$13.83

10

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

$6.52

11

Hose

707000502

$23.05

12

Norma Clamp

293650110

$4.38

13

CONNECTOR - Call your local BRP dealership

293710119

$5.68

14

Oetiker Clamp

293650012

$4.94

15

HOSE 12 MM - Call your local BRP dealership

707000537

Unavailable

16

CHAIN GUARD - Call your local BRP dealership

707000464

$36.12

17

SPROCKET COVER - Call your local BRP dealership

707000425

Unavailable

18

Flat Washer M6

234061430

$2.06

19

SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership

205563536

$1.69

20

Sleeve

293900078

$12.68

21

SOCKET HEAD SCREW M5 X 35 - Call your local BRP dealership

205053534

$1.51

22

Flange Elastic Nut M5

233251434

$1.66

23

THROTTLE HANDLE - Call your local BRP dealership

707000440

$75.35

24

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

27

THROTTLE CABLE - Call your local BRP dealership

707000439

Unavailable

28

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

29

Cable Guide

707000434

$10.52

30

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31

707000469

$99.97

31

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

$39.97

32

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 32 to 33, Europe

707000592

$103.82

33

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

$39.97

34

Clutch Cable

707000422

$50.74

35

Clutch Cable

707000422

$50.74

36

BOOT - Call your local BRP dealership

293830122

Unavailable

37

Washer

504082900

$2.58

38

SCREW - Call your local BRP dealership

707000602

$26.89

39

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

40

OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46

707000806

$305.35

41

Hex. Flange Screw M6 X 20

207662034

$1.74

42

Loctite 243, 10 ml

293800060

$20.77

43

STRAINER - Call your local BRP dealership

519000144

$27.66

44

O-Ring

293300128

$6.45

45

Plug

250500010

$59.20

46

Copper Washer

250200061

$2.31

47

RUBBER STOPPER - Call your local BRP dealership

705001678

$6.49

48

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

49

Flange Elastic Nut M6

233261434

$3.61

50

Flat Washer

250200082

$0.35

51

Grommet

293720062

$4.16

52

SPACER - Call your local BRP dealership

293900089

Unavailable

53

Oil Cap

707000526

$13.18

54

O-Ring

709000089

$15.35

55

HOSE - Call your local BRP dealership

707000544

Unavailable

56

Tridon Gear Clamp

293650171

$2.46

57

Oetiker Clamp

293650011

$2.46

58

ROTOCLIP CLAMP - Call your local BRP dealership

293650180

Unavailable

59

Tridon Gear Clamp

293650171

$2.46

60

MODULE SUPPORT - Call your local BRP dealership

710000972

$5.68

61

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

250000295

$5.80

62

Loctite 243, 10 ml

293800060

$20.77

63

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

Unavailable

64

Flange Elastic Nut M5

233251434

$1.66

65

Gearshift Pedal

420248540

$92.28

66

Torx Flange Screw M6 X 25

420440234

$3.00

67

Torx Screw K50 X 16

250000720

$1.39
