Description

Price

1

RADIATOR - Call your local BRP dealership

709200152

$329.97

2

FAN - Call your local BRP dealership

709200173

Unavailable

3

Hex. Flange Screw M6 X 25

207662534

$1.74

4

Flat Washer

250200082

$0.35

5

Flange Elastic Nut M6

233261434

$3.61

6

Grommet

709000582

$4.38

7

Bushing

293900105

$6.26

8

Grommet

705003932

$2.75

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.06

10

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

11

Tank

709200164

$50.74

12

Radiator Pressure Cap

709200207

$18.82

13

Hex. Flange Screw M6 X 25

207562544

$1.39

14

Flat Washer

250200082

$0.35

15

Oval Washer

705005156

$4.85

16

Grommet

709000582

$4.38

17

Bushing

293900019

$7.37

18

Bushing

293900105

$6.26

19

THERMOSTAT ASS'Y - Call your local BRP dealership

709200172

Unavailable

20

HOSE - Call your local BRP dealership

709200200

Unavailable

21

Tubing 25 MM 1000MM Long

219704402

$12.69

22

HOSE-RAD.IN. - Call your local BRP dealership

709200232

$22.28

23

Was 276000001 Hose 12.5 mm

219704394

$42.87

24

RADIATOR OUT HOSE - Call your local BRP dealership

709200154

$21.35

25

HOSE - Call your local BRP dealership

709200162

$17.66

26

Was 509000407 Hose 8 mm

219704420

$40.27

27

Tridon Gear Clamp

293650051

$3.61

28

Oetiker Clamp

293650012

$4.94

29

Oetiker Gear Clamp 36.1MM

509000045

$3.55

30

Norma Clamp

293650084

$4.00

31

Oetiker Clamp

293650125

$2.69

32

Tridon Gear Clamp

293650173

$2.46

33

Crimp Clamp

293650099

$4.60

34

Oetiker Gear Clamp

293650165

$4.32

35

Y-FITTING - Call your local BRP dealership

509000390

$9.74

36

T-Fitting | Europe

293710024

$12.82

37

Mount Dart

293730040

$0.86

38

Tie-Rap 180 mm

414115200

$0.09

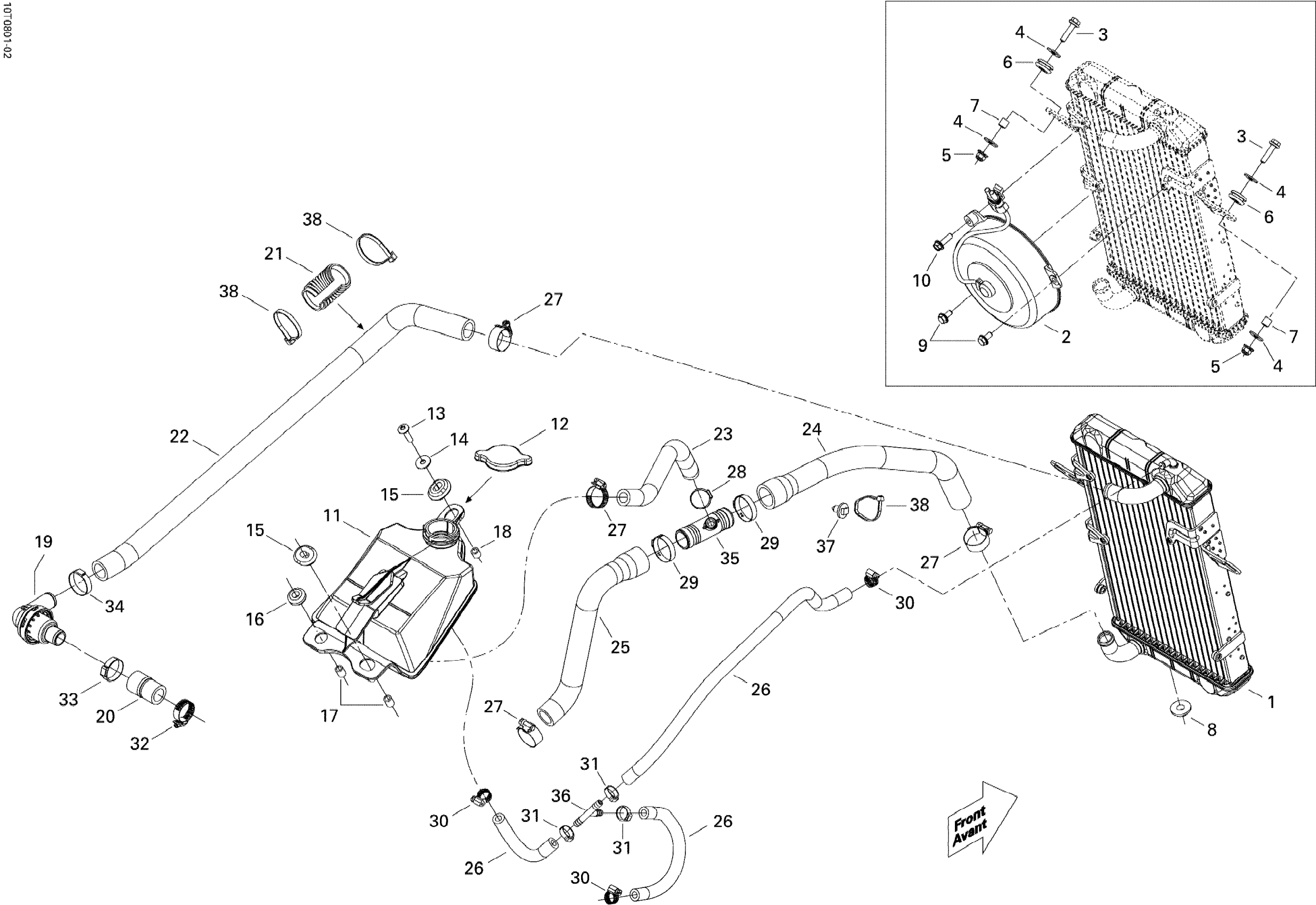

Can-Am DS 450 X, 2008 Cooling System Diagram
