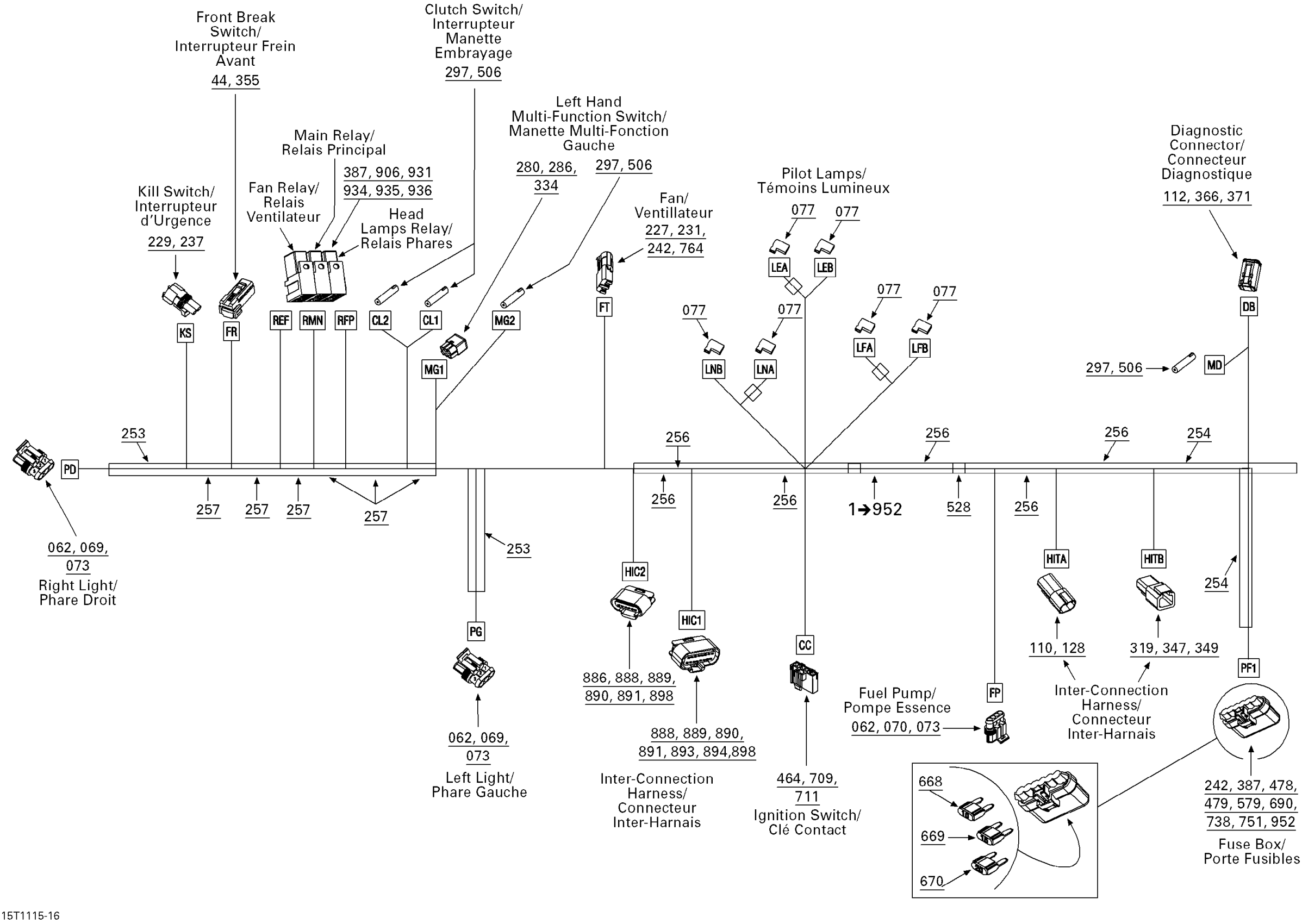

Can-Am DS 450 EFI, 2011 Electrical Harness, Front Section Diagram
#
1
FRONT MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 952
710001549
Unavailable
44
Female Terminal
515175231
Unavailable
62
Female Terminal
278001014
Unavailable
69
Female Housing, 3 Circuits
409209600
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
73
Wire Seal
278001013
Unavailable
112
Female Terminal
278000632
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
242
Wire Seal
278000218
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
280
Female Terminal
409012100
Unavailable
286
Seal
409012300
Unavailable
297
Insulated Sheath
278001007
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
478
Housing, 6 Circuits
710000888
Unavailable
506
Female Terminal
710000421
Unavailable
668
Little Fuse, 10 Amperes
710000744
Unavailable
669
Little Fuse, 15 Ampere
710000745
Unavailable
670
Little Fuse, 20 Amperes
710000746
Unavailable
709
Lock
710000848
Unavailable
711
Male Housing, 6 Circuits
710000849
Unavailable
738
Cover
710000897
Unavailable
751
Female Terminal
710000918
Unavailable
888
Seal
710001230
Unavailable
889
Seal
710001233
Unavailable
893
Housing
710001226
Unavailable
894
Cap
710001225
Unavailable
935
HOUSING - Call your local BRP dealership
710001355
Unavailable
