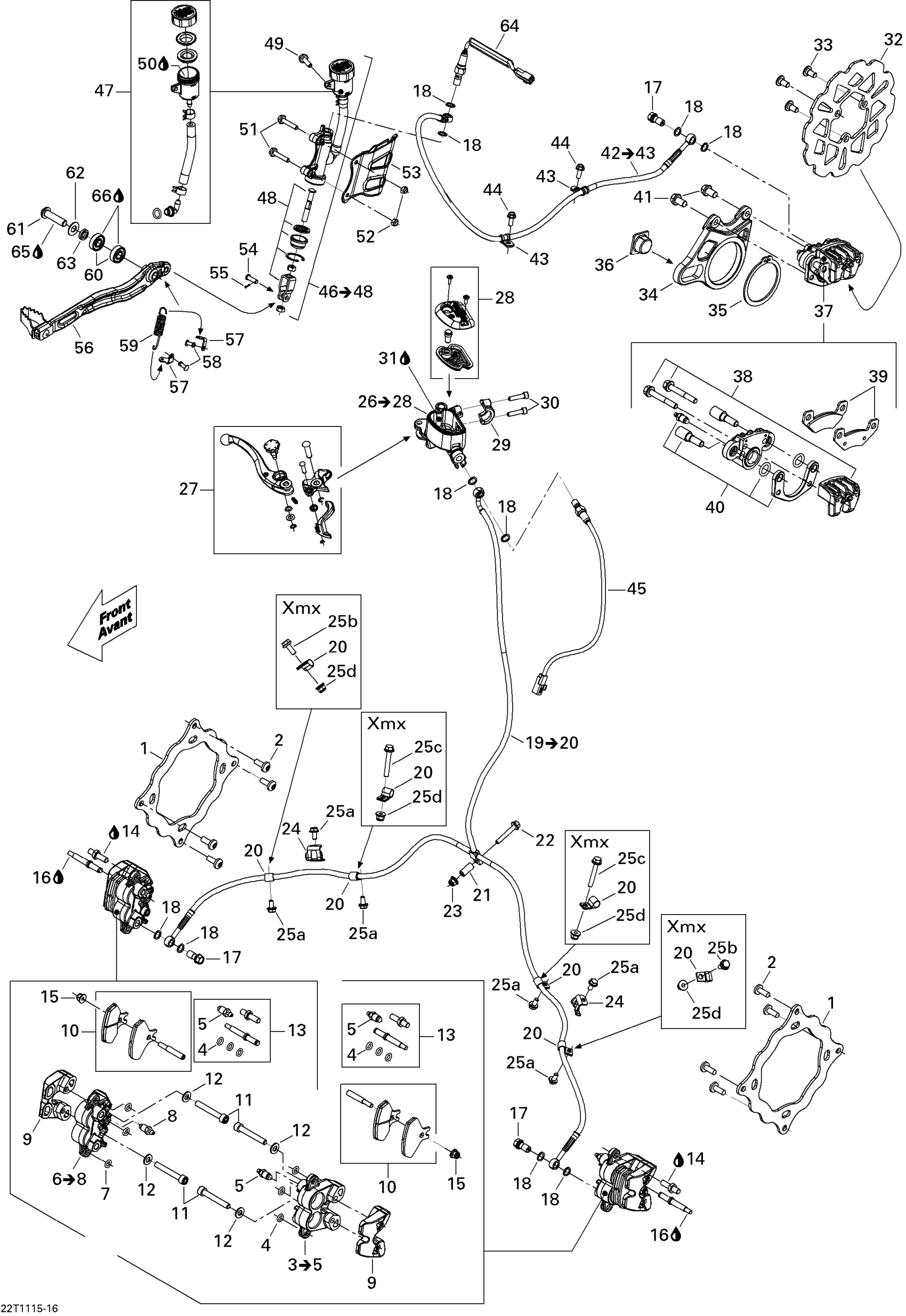

Can-Am DS 450 EFI, 2011 Hydraulic Brakes Diagram

#

Description
Price

1

FRONT BRAKE DISC - Call your local BRP dealership

705600400

$115.35

2

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

3

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 5

705600401

$200.74

4

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

5

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

6

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 6 to 8

705600404

$200.74

7

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

8

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

9

OUTER CALIPER - Call your local BRP dealership

705600560

Unavailable

10

Front Brake Pad Kit

705600402

$46.89

11

SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership

205085534

Unavailable

12

Flat Washer M8

234081430

Unavailable

13

PIN SLIDE KIT - Call your local BRP dealership

705600425

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

Flange Elastic Nut M6

233261434

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Banjo Bolt

705600628

$11.05

18

Copper Washer

705601628

$4.34

19

FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership | Includes 19 to 20

705600408

$113.82

20

Clamp

293650256

Unavailable

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

Hex. Flange Screw M6 X 40

207664034

Unavailable

23

Flange Elastic Nut M6

233261434

Unavailable

24

Hose Holder

705600553

Unavailable

25a

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.06

25b

Not Available As Spare Parts

XXX

Unavailable

25c

Not Available As Spare Parts

XXX

Unavailable

25d

Not Available As Spare Parts

XXX

Unavailable

26

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27

705600409

$167.66

27

Brake Lever Kit

705600491

$78.43

28

CAP SET - Call your local BRP dealership

705600493

$49.20

29

BRACKET KIT - Call your local BRP dealership

705600619

$17.66

30

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

205062534

Unavailable

31

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

32

REAR DISC BRAKE - Call your local BRP dealership

705600410

Unavailable

33

SHOULDER SCREW M8 - Call your local BRP dealership

250000330

Unavailable

34

REAR CALIPER SUPPORT - Call your local BRP dealership

705600411

$61.51

35

SNAP RING - Call your local BRP dealership

293370045

$5.68

36

GUIDE REAR CALIPER - Call your local BRP dealership

705600412

$7.12

37

Rear Caliper Ass'y

705600713

$275.35

38

ANVIL KIT - Call your local BRP dealership

705600490

$129.20

39

Brake Pad Kit

705600711

$46.89

40

BRACKET KIT - Call your local BRP dealership

705600714

$70.74

41

HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

250000313

Unavailable

42

BRAKE LINE - Call your local BRP dealership | Includes 42 to 43

705600947

$64.58

43

Clamp

293650256

Unavailable

44

Hex. Flange Screw M6 X 16

210261650

$1.22

45

Switch

710003837

Unavailable

46

Rear Master Cylinder | Includes 46 to 48

705600738

$258.43

47

SET TANK ASS'Y - Call your local BRP dealership

705600740

$60.74

48

ROD SET - Call your local BRP dealership

705600498

Unavailable

49

Hex. Flange Screw M6 X 20

207662034

Unavailable

50

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

52

Elastic Stop Nut M6

232561434

$1.55

53

Hose Protector

705600538

$10.98

54

Clevis Pin

250400031

$7.37

55

Cotter Pin

250400032

$2.31

56

BRAKE PEDAL - Call your local BRP dealership

705600534

$101.51

57

FIXATION PLATE - Call your local BRP dealership

705600631

$5.68

58

Pop Rivet 3/16”

390407200

$0.66

59

BRAKE PEDAL SPRING - Call your local BRP dealership

705600635

$10.28

60

Bearing

705600458

Unavailable

61

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205404036

Unavailable

62

Washer

506152194

$4.42

63

Bushing

293900087

$7.60

64

BRAKE SWITCH - Call your local BRP dealership

710003838

Unavailable

65

Loctite 243, 10 ml

293800060

$20.77

66

Loctite 609, 10 ml

413703100

$24.58
