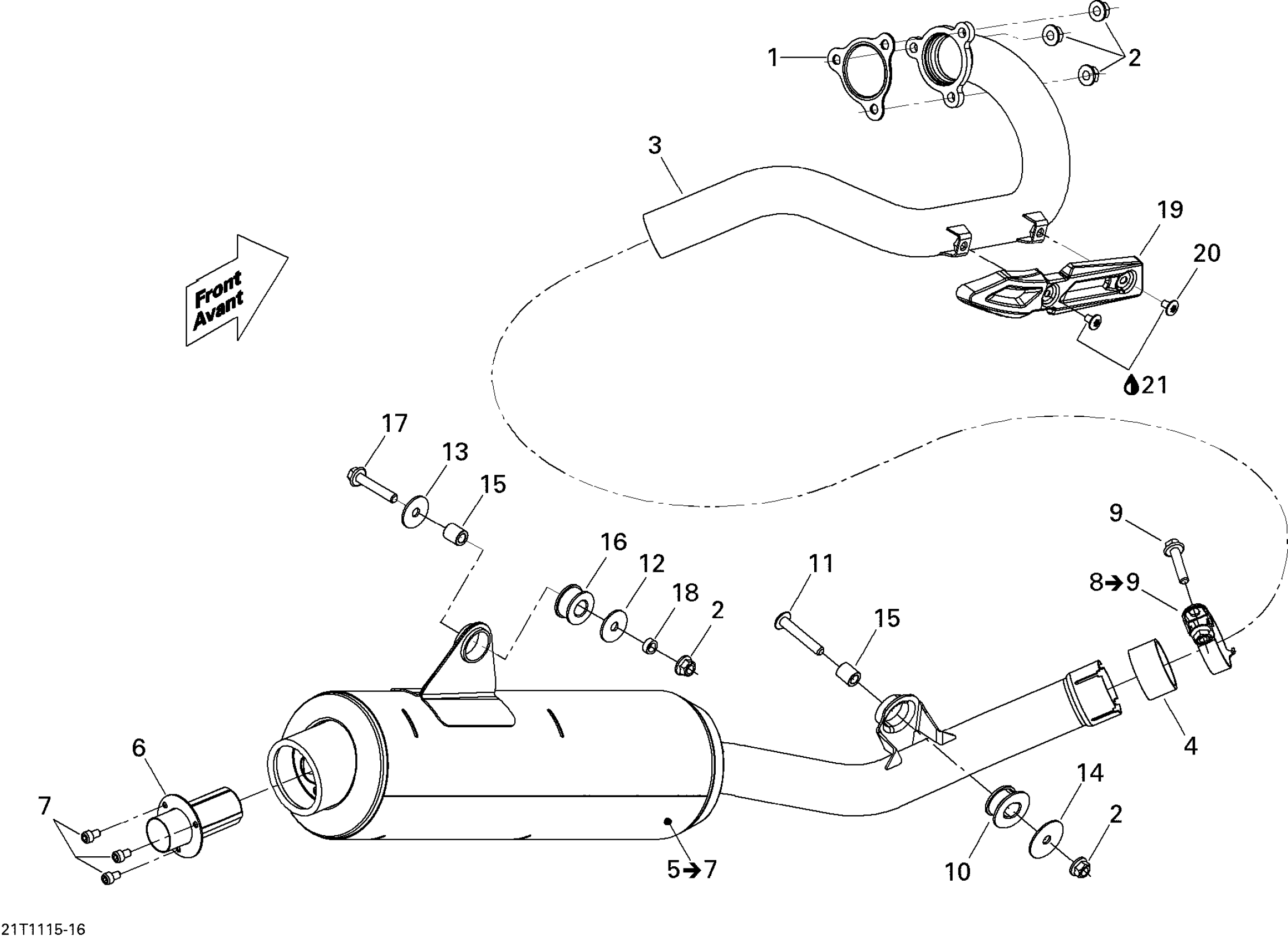

Can-Am DS 450 EFI, 2011 Exhaust System Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

707600445

Unavailable

2

Hex. Flange Nut

233081436

Unavailable

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600401

Unavailable

4

PIPE GASKET - Call your local BRP dealership

514054289

Unavailable

5

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 5a to 5c

707600333

Unavailable

6

SPARK SHIELD END PIECE - Call your local BRP dealership

707600468

Unavailable

7

Socket Head Screw M5 X 10

205051060

$1.54

8

COLLAR - Call your local BRP dealership | Includes 8 to 9

707600705

Unavailable

9

Hex. Flange Screw M8 X 40

207684034

Unavailable

10

Rubber

707600448

Unavailable

11

Torx Truss Screw M8 X 50

250000761

Unavailable

12

FLAT WASHER - Call your local BRP dealership

250200073

$1.69

13

Washer

503032900

$3.20

14

WASHER - Call your local BRP dealership

707600525

Unavailable

15

Bushing

293900106

Unavailable

16

Vibration Damper

707603323

Unavailable

17

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

18

BUSHING - Call your local BRP dealership

293900067

$7.38

19

HEAT SHIELD - Call your local BRP dealership

707600432

Unavailable

20

Torx-truss M/s M6 X 10

250000995

Unavailable

21

Loctite 271, 10 ml

293800005

Unavailable
