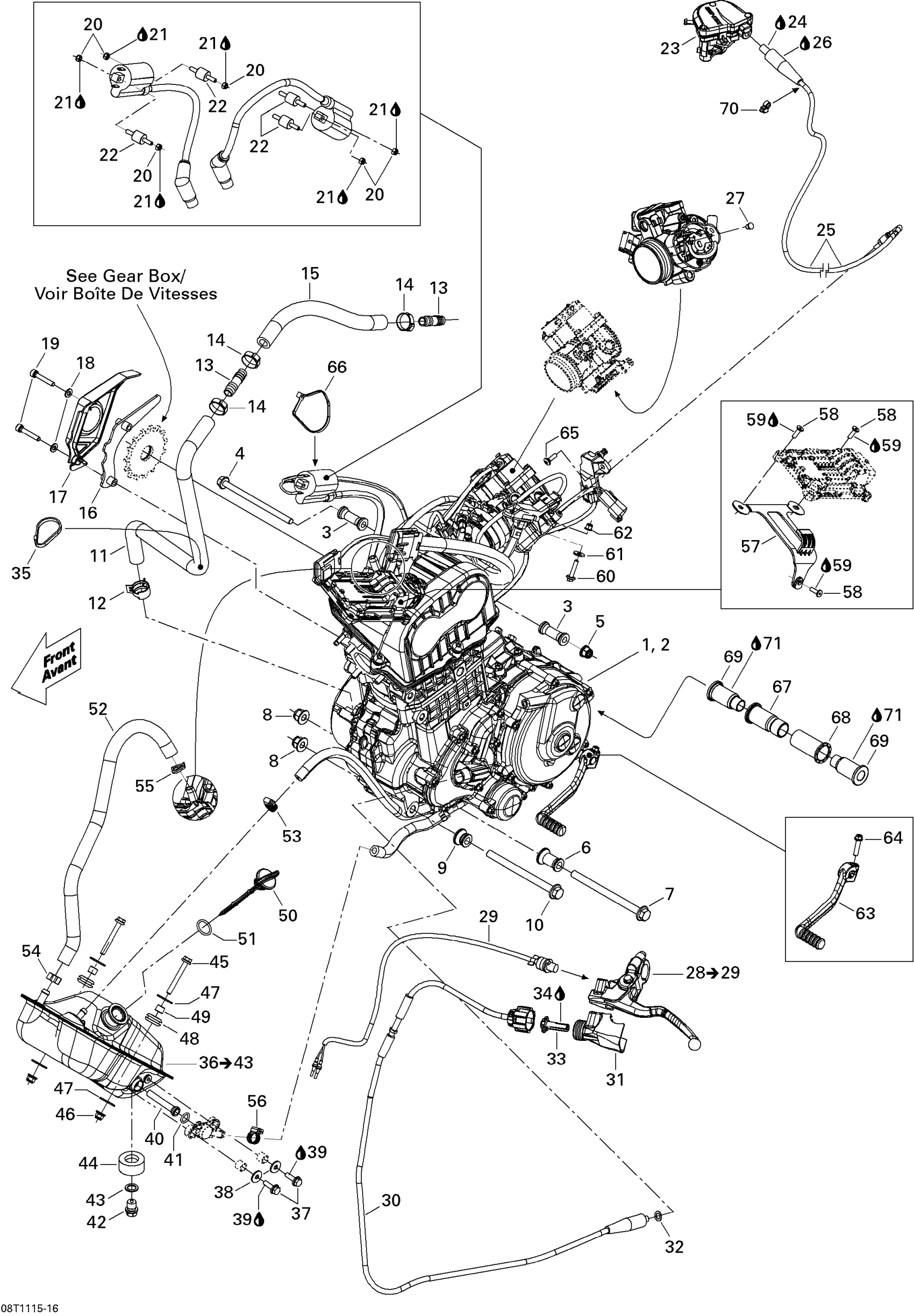

Can-Am DS 450 EFI, 2011 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership

420044904

Unavailable

3

SPACER - Call your local BRP dealership

293900071

$9.74

4

Hex. Flange Screw M8 X 130

230683034

Unavailable

5

Hex. Flange Elastic Nut M8

233281434

Unavailable

6

SPACER - Call your local BRP dealership

293900072

$13.83

7

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

8

Hex. Flange Elastic Nut M10

233201434

Unavailable

9

SPACER - Call your local BRP dealership

293900074

$13.83

10

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

Unavailable

11

Hose

707000502

$23.05

12

Norma Clamp

293650110

Unavailable

13

CONNECTOR - Call your local BRP dealership

293710119

$5.68

14

Oetiker Clamp

293650012

Unavailable

15

HOSE 12 MM - Call your local BRP dealership

707000537

Unavailable

16

CHAIN GUARD - Call your local BRP dealership

707000464

$36.12

17

SPROCKET COVER - Call your local BRP dealership

707000425

Unavailable

18

Flat Washer M6

234061430

Unavailable

19

SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership

205563536

Unavailable

20

Flange Elastic Nut M5

233251434

$1.66

21

Loctite 243, 10 ml

293800060

$20.77

22

Rubber Mount

707000746

$8.60

23

THROTTLE HANDLE - Call your local BRP dealership

707000440

$75.35

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

25

THROTTLE CABLE - Call your local BRP dealership

707000439

Unavailable

26

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

27

Cable Guide

707000434

Unavailable

28

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31

707000469

$99.97

29

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

$39.97

30

Clutch Cable

707000422

$50.74

31

BOOT - Call your local BRP dealership

293830122

Unavailable

32

Washer

504082900

Unavailable

33

SCREW - Call your local BRP dealership

707000602

$26.89

34

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

35

Tie-Rap 180 mm

414115200

$0.09

36

OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46

707000806

Unavailable

37

Hex. Flange Screw M6 X 20

207662034

Unavailable

38

Flat Washer 6 mm

234062410

$0.64

39

Loctite 243, 10 ml

293800060

$20.77

40

STRAINER - Call your local BRP dealership

519000144

Unavailable

41

O-Ring

293300128

$6.45

42

Plug

250500010

$59.20

43

Copper Washer

250200061

$2.31

44

RUBBER STOPPER - Call your local BRP dealership

705001678

Unavailable

45

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

46

Flange Elastic Nut M6

233261434

Unavailable

47

FLAT WASHER - Call your local BRP dealership

250200099

$2.02

48

Grommet

293720062

Unavailable

49

SPACER - Call your local BRP dealership

293900089

Unavailable

50

Oil Cap

707000526

$13.18

51

O-Ring

709000089

Unavailable

52

HOSE - Call your local BRP dealership

707000544

Unavailable

53

Tridon Gear Clamp

293650171

Unavailable

54

Oetiker Clamp

293650011

$2.46

55

ROTOCLIP CLAMP - Call your local BRP dealership

293650180

Unavailable

56

Tridon Gear Clamp

293650171

Unavailable

57

MODULE SUPPORT - Call your local BRP dealership

710000972

$5.68

58

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

250000295

Unavailable

59

Loctite 243, 10 ml

293800060

$20.77

60

Hex. Flange Screw M5 X 25

207652544

Unavailable

61

Washer | DS 650 X

391301600

Unavailable

62

Flange Elastic Nut M5

233251434

$1.66

63

Gearshift Pedal

420248540

Unavailable

64

Torx Flange Screw M6 X 25

420440234

Unavailable

65

Torx Screw K50 X 16

250000720

$1.39

66

Tie Wrap 368 mm

293750008

$0.85

67

RH SPACER - Call your local BRP dealership

707000947

$108.43

68

SPACER - Call your local BRP dealership

707001749

Unavailable

69

RUBBER MOUNT - Call your local BRP dealership

707000800

$79.20

70

Tie Wrap 142 mm

293750002

Unavailable

71

Not Available As Spare Part - Friction Washer

Unavailable
