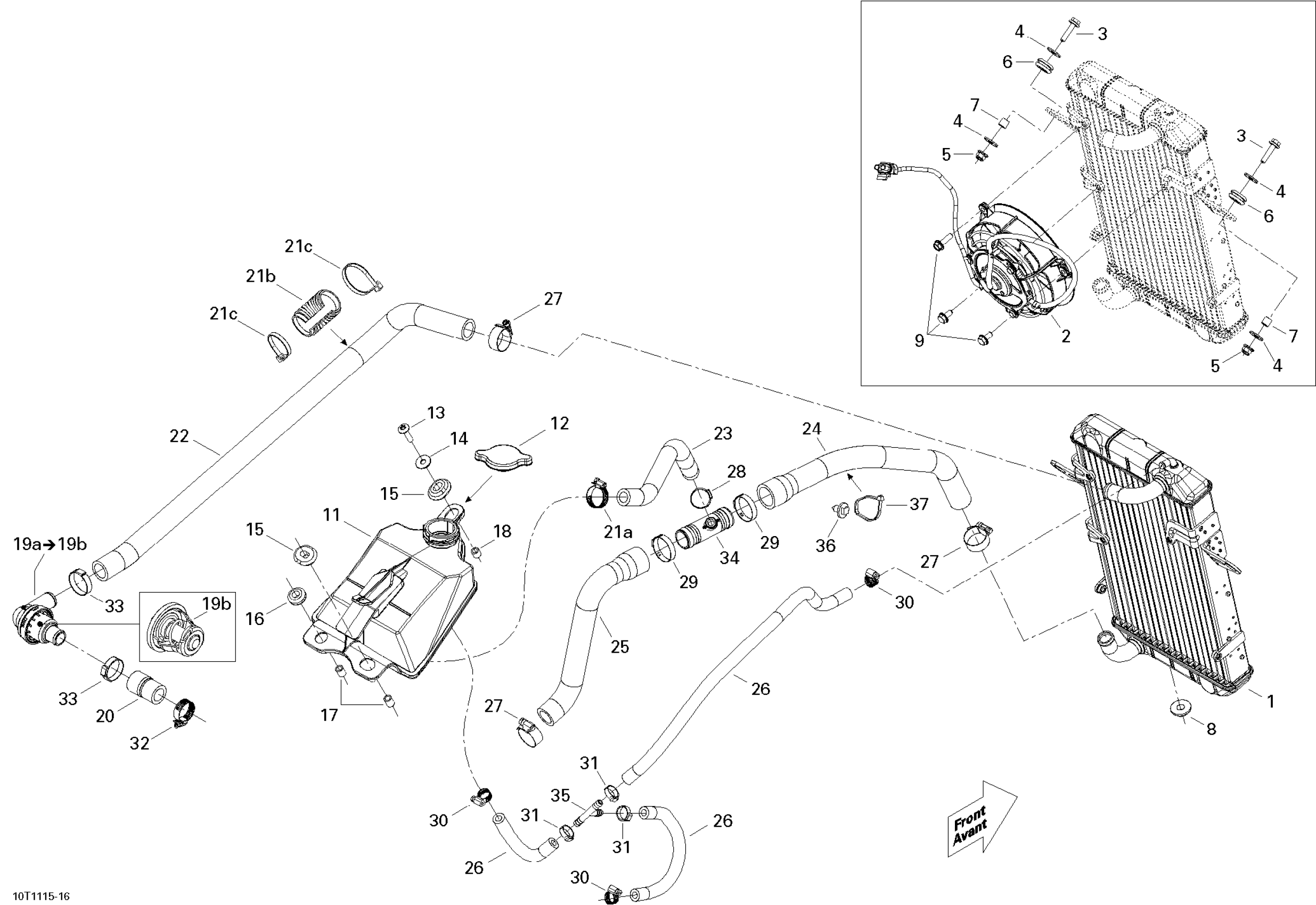

Can-Am DS 450 EFI, 2011 Cooling System Diagram
#
Description
Price
1
RADIATOR - Call your local BRP dealership
709200152
Unavailable
3
Hex. Flange Screw M6 X 25
207662534
Unavailable
5
Flange Elastic Nut M6
233261434
Unavailable
7
Bushing
293900105
Unavailable
11
Tank
709200164
Unavailable
12
Radiator Pressure Cap
709200207
Unavailable
14
Flat Washer
250200082
Unavailable
15
Oval Washer
705005156
Unavailable
17
Bushing
293900019
Unavailable
18
Bushing
293900105
Unavailable
19a
THERMOSTAT ASS'Y - Call your local BRP dealership
709200172
Unavailable
19b
Thermostat | Includes 53 to 54
420222495
Unavailable
20
HOSE - Call your local BRP dealership
709200200
Unavailable
21a
Tridon Gear Clamp
293650173
Unavailable
21b
Tubing 25 MM 1000MM Long
219704402
Unavailable
22
RADIATOR IN HOSE - Call your local BRP dealership
709200236
Unavailable
23
Was 276000001 Hose 12.5 mm
219704394
Unavailable
24
RADIATOR OUT HOSE - Call your local BRP dealership
709200237
Unavailable
25
HOSE PUMP - Call your local BRP dealership
709200238
Unavailable
26
Was 509000407 Hose 8 mm
219704420
Unavailable
27
Tridon Gear Clamp
293650051
Unavailable
28
Oetiker Clamp
293650012
Unavailable
29
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
30
Norma Clamp
293650084
Unavailable
32
Tridon Gear Clamp
293650173
Unavailable
33
Crimp Clamp
293650099
Unavailable
34
Y-FITTING - Call your local BRP dealership
509000390
Unavailable
35
T-Fitting | Europe
293710024
Unavailable
