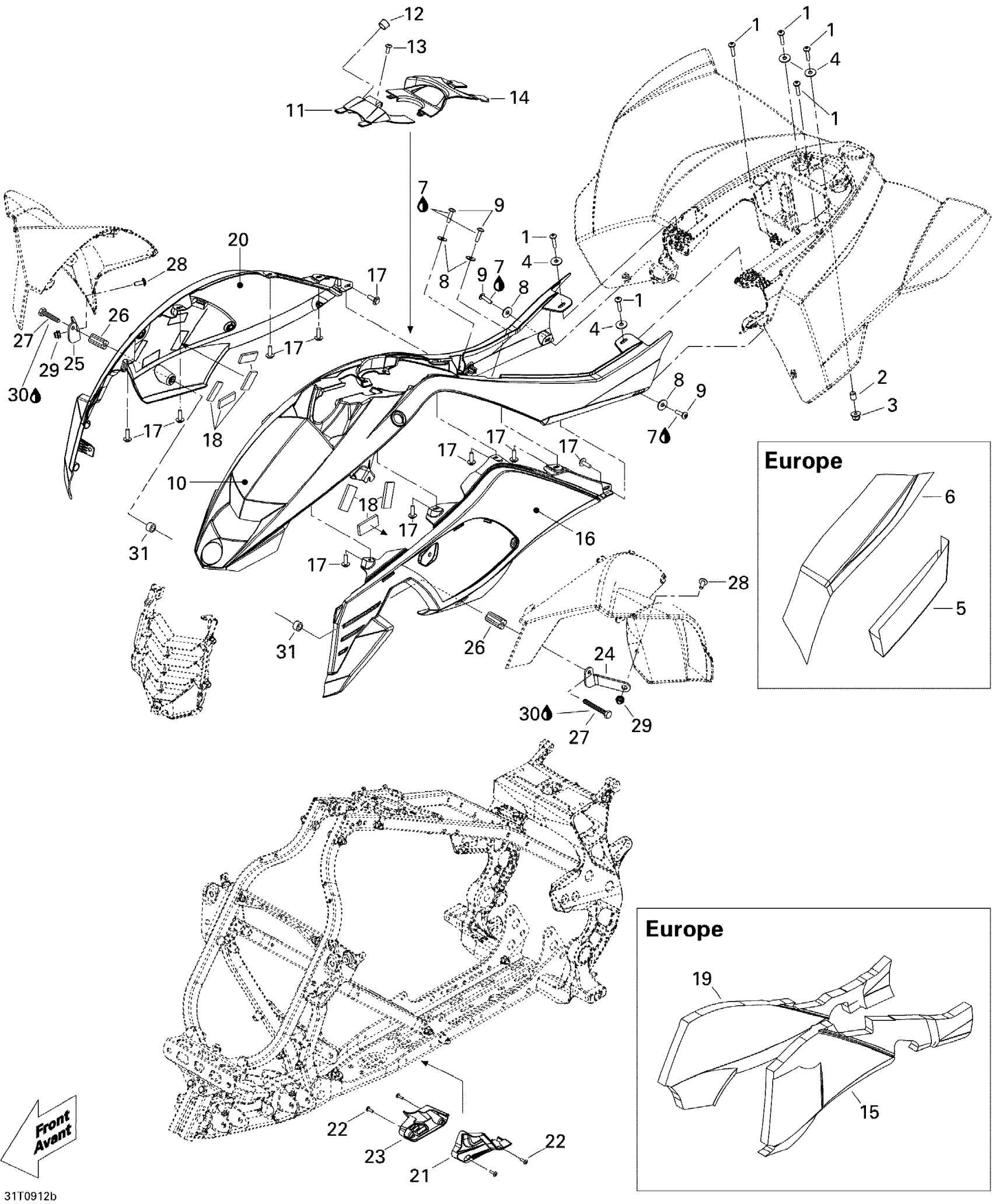

Can-Am DS 450 EFI, 2009 Body And Accessories 2 Diagram

#

Description
Price

1

Torx Screw M5 X 25

250000762

$1.74

2

Bushing

709000162

$13.83

3

Hex. Flange Elastic Nut M5

233251414

$1.66

4

Washer | DS 650 X

391301600

$0.48

5

Reflective Sheet | Europe

705003351

Unavailable

6

Reflective Sheet | Europe

705003357

Unavailable

7

Loctite 243, 10 ml

293800060

$20.77

8

Stainless Steel Flat Washer

234062670

$1.74

9

Torx Screw M6 x 25

250000284

$1.74

10

FRONT FASCIA - Call your local BRP dealership

705001750

Unavailable

10

FRONT FASCIA - Call your local BRP dealership | White Model

705003003

Unavailable

11

DASH-BOARD - Call your local BRP dealership

705001758

Unavailable

11

DASH-BOARD - Call your local BRP dealership

705003316

Unavailable

12

Cap

572051500

$5.38

13

Torx Truss Screw M6 X 16

250000721

$1.39

14

ACCESS COVER - Call your local BRP dealership

705002288

Unavailable

15

L.H. Foam

705003293

Unavailable

16

LH SIDE PANNEL - Call your local BRP dealership

705002961

Unavailable

17

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

18

Gasket

705002447

$3.63

19

R.H. Foam

705003292

Unavailable

20

RH SIDE PANNEL - Call your local BRP dealership

705002962

Unavailable

21

LH ENGINE MOULDING - Call your local BRP dealership

705002631

Unavailable

22

Torx Screw M6 X 20

250000722

$1.34

23

RH Engine Moulding

705002632

Unavailable

24

LH FENDER SUPPORT - Call your local BRP dealership

705002695

Unavailable

25

RH FENDER SUPPORT - Call your local BRP dealership

705002696

Unavailable

26

BUSHING - Call your local BRP dealership

705002697

Unavailable

27

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

27

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$6.08

28

Torx Truss Screw M6 X 16

250000721

$1.39

29

Threaded Insert M6 X 1.0

250100242

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

BUSHING - Call your local BRP dealership

293900067

Unavailable
